Quick Details
-
Brand Name:
-
Xindun
-
Model Number:
-

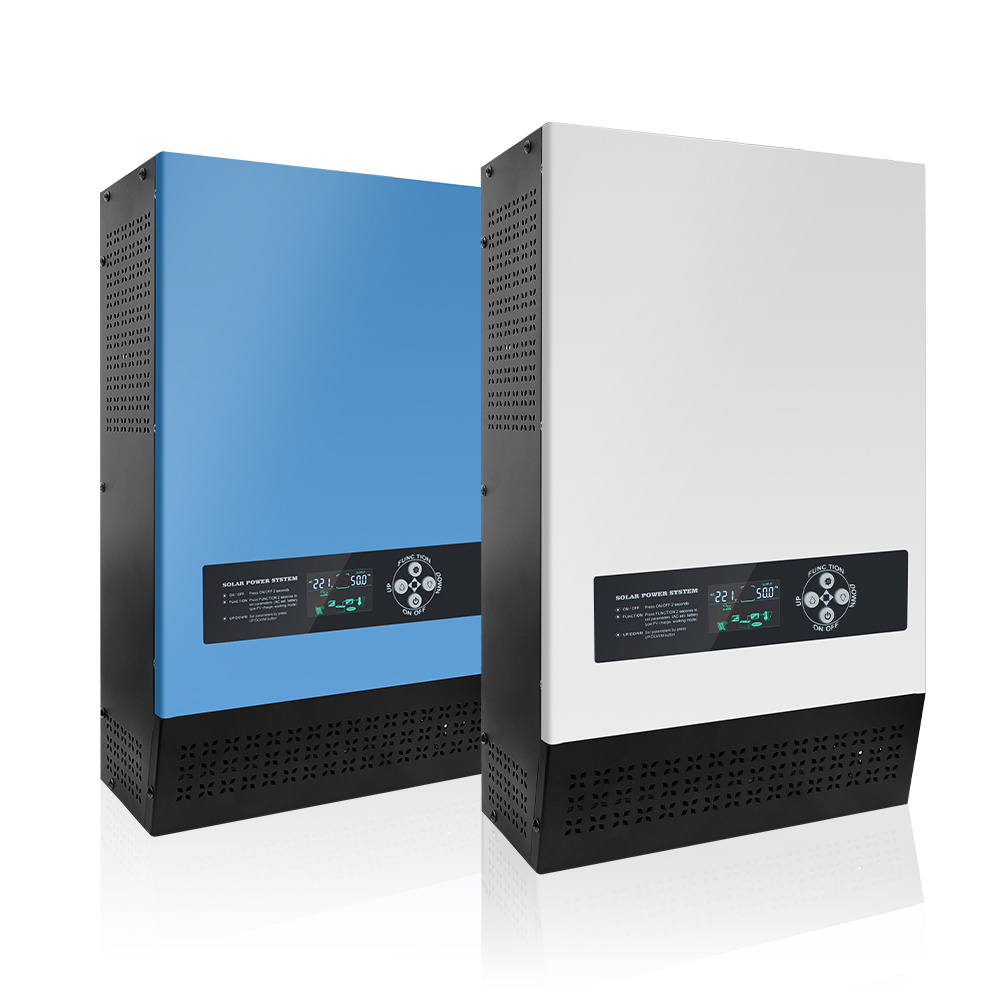

XD-LS Pure Sine Wave Inverter
-
Output Frequency:
-
50/60Hz
-
Size:
-
500*300*140mm~530*335*150mm
-
Weight:
-
12kg~26kg
-
Product name:
-
pure sine wave inverter charger
-
Battery type:
-
lifepo4 battery
-
Output wave form:
-
pure sine wave output inverter
-
Color:
-
Blue+Black
-
Frequency:
-
low frequency inverter charger
-
Protection:
-
Overload,over voltage,shortcut
-
Technology:
-
CPU control
-
OEM:
-
Accept OEM
-
Application:
-
Household Device/Office Equipment/Industrial Equipment/DC Loads
-
Rated power:
-
1000w/1500w/2000w/3000w/4000w/5000w/5000w
-
Certificate:
-
CE RoHS, IEC, TUV
Quick Details
-
Output Current:
-
0~30A
-
Customized support:
-
Accept OEM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
XD-LS Pure Sine Wave Inverter
-
Output Frequency:
-
50/60Hz
-
Size:
-
500*300*140mm~530*335*150mm
-
Weight:
-
12kg~26kg
-
Product name:
-
pure sine wave inverter charger
-
Battery type:
-
lifepo4 battery
-
Output wave form:
-
pure sine wave output inverter
-
Color:
-
Blue+Black
-
Frequency:
-
low frequency inverter charger
-
Protection:
-
Overload,over voltage,shortcut
-
Technology:
-
CPU control
-
OEM:
-
Accept OEM
-
Application:
-
Household Device/Office Equipment/Industrial Equipment/DC Loads
-
Rated power:
-
1000w/1500w/2000w/3000w/4000w/5000w/5000w
-
Certificate:
-
CE RoHS, IEC, TUV
Inverter Feature
Why Choose XD-LS Series Inverter
Inverter Details
How to Use Inverter?
Inverter Technical Parameters
| Specification | ||||||||
| Model XD-LS |
10212/24/48
(102) |
15212/24/48
(152) |
20212/24/48
(202) |
30224/48
(302) |
40224/48
(402) |
50248
(502) |
60248
(602) |
|
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Peak Power(20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |
| Start Motor | 1HP | 1.5HP | 2HP | 3HP | 3HP | 4HP | 4HP | |
| Battery Voltage | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||||
| Size(L*W*Hmm) | 500*300*140 | 530*335*150 | ||||||
| Packing Size(L*W*Hmm) | 565*395*225 | 605*430*235 | ||||||
| N.W.(kg) | 12 | 13.5 | 18 | 20 | 22 | 24 | 26 | |
| G.W.(kg)(Carton Packing) | 13.5 | 15 | 19.5 | 21.5 | 24 | 26 | 28 | |
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | ||||||
| AC Input Voltage Range | 85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC) | |||||||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||||
| Max AC charging current | 0~30A(Depends on model) | |||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||
| Output | Efficiency(Battery Mode) | ≥85% | ||||||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | |||||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | |||||||
| Output Wave(Battery Mode) | Pure Sine Wave | |||||||
| Efficiency(AC Mode) | >99% | |||||||
| Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||||||
| Output Frequency(AC Mode) | Follow input | |||||||
|
Output waveform distortion
(Battery Mode) |
≤3%(Linear load) | |||||||
| No load loss(Battery Mode) | ≤0.8% rated power | |||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | |||||||
|
No load loss
(Energy saving Mode) |
≤10W | |||||||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage) | ||||||
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel) |
|||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||||||
| Transfer Time | ≤4ms | |||||||
| Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||||
