Quick Details
-
Model Number:
-
SJW
-
Output Frequency:
-
500W~7KW
-
Size:
-
495*365*220~700*485*265mm
-
Weight:
-
10~36kg
-
Application:
-
Home Appliance
-
Color:
-
Grey
-
Waveform:
-
Pure Sine Wave
-
Efficiency:
-
95%
-
Warranty:
-
12 Months
-
Display:
-
LCD
-
Protection:
-
Short circuit Overload etc.
-
Rated power:
-
6000w
-
OEM:
-
Accepted
-
Product name:
-
48V 96V Inverter Hybrid
-
Certificate:
-
CE RoHS
Quick Details
-
Output Current:
-
Optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
SJW
-
Output Frequency:
-
500W~7KW
-
Size:
-
495*365*220~700*485*265mm
-
Weight:
-
10~36kg
-
Application:
-
Home Appliance
-
Color:
-
Grey
-
Waveform:
-
Pure Sine Wave
-
Efficiency:
-
95%
-
Warranty:
-
12 Months
-
Display:
-
LCD
-
Protection:
-
Short circuit Overload etc.
-
Rated power:
-
6000w
-
OEM:
-
Accepted
-
Product name:
-
48V 96V Inverter Hybrid
-
Certificate:
-
CE RoHS
Related Products

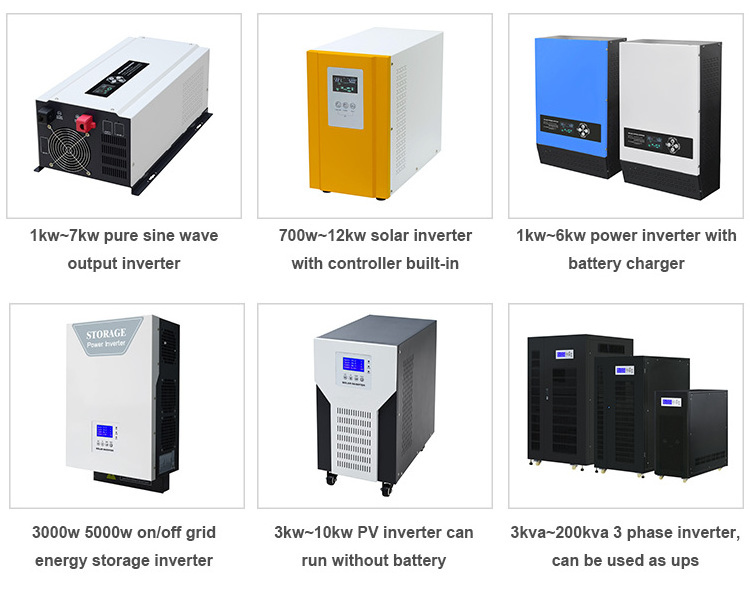

Hot selling inverters
Product Description
Feature
- Pure sine wave output.
- Low frequency toroidal transformer lower loss.
- Brand new wide LCD screen, clearly and precisely shows working data.
- Three -stage charging: Constant current , constant voltage, float charge.
- Added fault code query function, easy to monitor the operation in real time.
- Built in MPPT/PMW controller.
Product Details
Parameters
| Specification | |||||||||||
| Model SJW | 50112/24 | 70112/24 | 10212/24 | 15224/48 | 20224/48 | 30224/48 | 40248/96 | 50248/96 | 60248/96 | 70296 | |
| Rated Power | 500W | 700W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | |
| Peak Power(20ms) | 1500W | 2100W | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 21000W | |
| Start Motor | 0.5HP | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | 3HP | 4HP | 4HP | 5HP | |
| Battery Voltage | 12/24VDC | 24/48VDC | 48/96VDC | 96VDC | |||||||
| Size(L*W*Hmm) | 408*296*130 | 540*380*150 | 620*400*181 | ||||||||
| Packing Size(L*W*Hmm) | 495*365*220 | 645*455*235 | 700*485*265 | ||||||||
| N.W.(kg) | 8.5 | 9.5 | 10.5 | 14 | 17 | 20 | 25 | 26 | 30 | 34 | |
| G.W.(kg)(Carton Packing) | 10 | 11 | 12 | 16 | 19 | 22 | 27 | 28 | 32 | 36 | |
| Installation Method | Wall-Mounted | ||||||||||
| Parameter | |||||||||||
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | |||||||||
| AC Input Voltage Range | 73VAC~138VAC / 145VAC~275VAC | ||||||||||
| AC Input Frequency Range | 45Hz~65Hz | ||||||||||
| Max AC charging current | 6A~15A(Depending on the model) | ||||||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||||
| Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2% | ||||||||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | ||||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||||
| Efficiency(AC Mode) | >99% | ||||||||||
| Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% | ||||||||||
| Output Frequency(AC Mode) | Tracking Automatically | ||||||||||
|
Output waveform distortion
(Battery Mode) |
≤3%(Linear load) | ||||||||||
| No load loss(Battery Mode) | ≤0.8% rated power | ||||||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||||||
|
Battery Type
(selectable) |
LEAD | Charge Voltage:14V;Float Voltage:13.8V(12V system; 24V system x2; 48V system x4; 96V system x8) | |||||||||
| OP-LE | Charge Voltage:14.2V; Float Voltage:13.8V(12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| LITHIUM | Charge Voltage: 12.6V(NMC battery 3S) (12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| Customize battery | Charge and discharge parameters of different types of batteriescan be customized according to user requirements | ||||||||||
| Protection | Battery undervoltage alarm | 11V; LITHIUM 9.5V(NMC battery 3S)(12V system; 24V system x2; 48V system x4; 96V system x8) | |||||||||
| Battery undervoltage protection | 10.5V; LITHIUM 9V(NMC battery 3S)(12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| Battery overvoltage alarm | Lead acid battery: 15V(12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| Battery overvoltage protection | Lead acid battery: 17V(12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| Battery overvoltage recovery voltage | Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4; 96V system x8) | ||||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||
| Temperature protection | >90°C(Shut down output) | ||||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||||
|
Inside Solar controller
(Optional) |
Charging Mode | PWM | MPPT or PWM | ||||||||
| Charging current | 10A/20A/30A | 12V/24V/48V System:10A/20A/30A/40A/50A/60A; 96V System: 50A | |||||||||
| PV Input Voltage Range |
PWM: 15V-44V(12V system);30V-44V(24V system);60V-88V(48V system); 120V-176V(96V system)
MPPT: 15V-120V(12V system);30V-120V(24V system);60V-120V(48V system) |
||||||||||
| Max PV Input Voltage(At 25℃) | PWM: 50V(12V/24V system ); 100V(48V system ); 200V(96V system) / MPPT: 150V(12V/24V/48 system) | ||||||||||
| PV Array Maximum Power |
12V system: 140W/280W/420W/560W/700W/840W; 24V system: 280W/560W/840W/1120W/1400W/1680W;
48V system: 560W/1120W/1680W/2240W/2800W/3360W; 96V system: 5.6KW |
||||||||||
| Standby loss | ≤3W | ||||||||||
| Maximum conversion efficiency | >95% | ||||||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||||||
| Transfer Time | ≤4ms | ||||||||||
| Display | LCD | ||||||||||
| Thermal method | Cooling fan in intelligent control | ||||||||||
| Communication | RS232/RS485(Optional) | ||||||||||
| Environment | Operating temperature | -10℃~40℃ | |||||||||
| Storage temperature | -15℃~60℃ | ||||||||||
| Noise | ≤55dB | ||||||||||
| Elevation | 2000m(More than derating) | ||||||||||
| Humidity | 0%~95% ,No condensation | ||||||||||
| Warranty | 1 year | ||||||||||
| Note: All specifications are subject to charge without prior notice | |||||||||||
Wiring Diagram

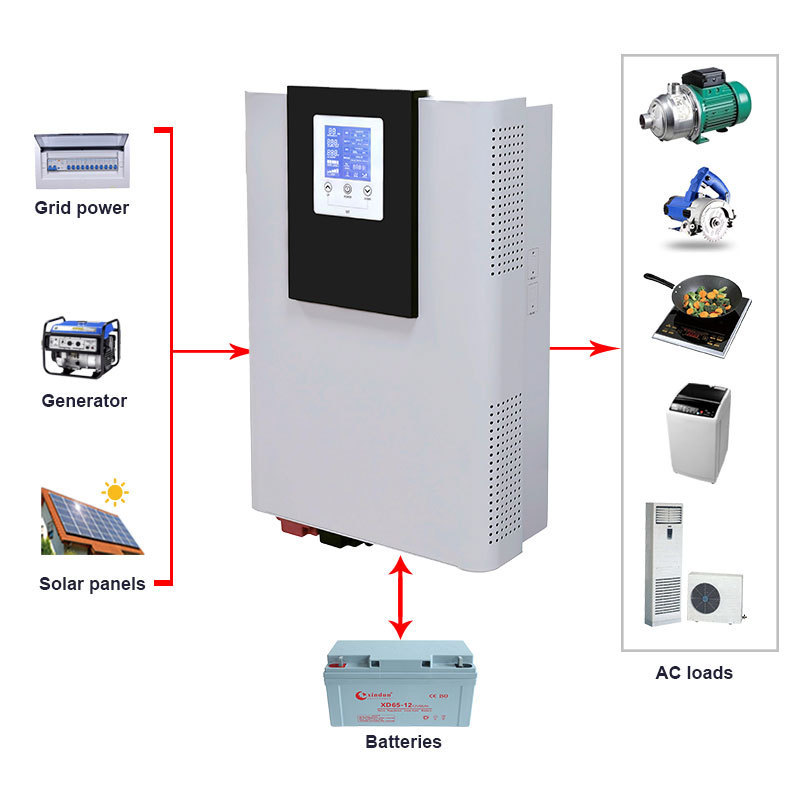

Application
