Product Description

RS232 external tpms for 1 to 22 tires

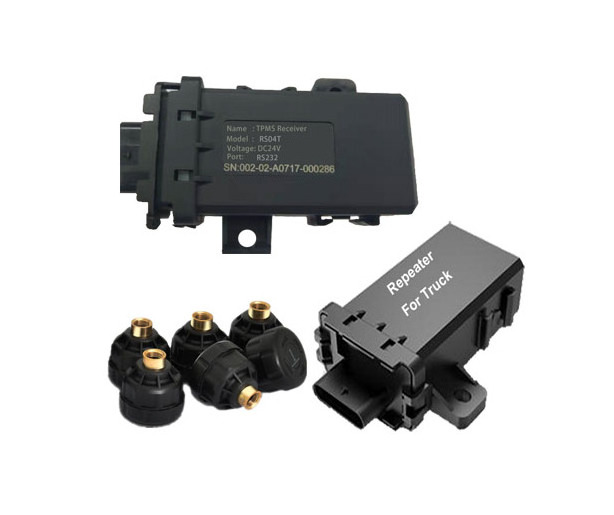

The system include sensors, repeater and receiver. It is used to monitor the pressure and temperature data of the tires. After collecting the pressure and temperature data, the sensors send the data to the repeater and receiver by wireless RF, then the repeater send the data to the receiver. The receiver send the data to RS232 network, The instrument or other display device collect all tire data and display from can network. When the pressure or temperature over or under warning valve value, the instrument will warn automatically to remind the users pay attention to the tires’ situation.

Suitable 1 to 22 wheel truck bus rs232 tpms rs232 without screen tire pressure monitoring system for tpms truck rs232 port, The system include sensors, repeater and receiver. It is used to monitor the pressure and temperature data of the tires. After collecting the pressure and temperature data, the sensors send the data to the repeater and receiver by wireless RF, then the repeater send the data to the receiver. The receiver send the data to rs232 port, The instrument or other display device collect all tire data and display from can network. When the pressure or temperature over or under warning valve value, the instrument will warn automatically to remind the users pay attention to the tires’ situation.


Receiver(model:RS04T)
1.Supportr RS232 or TTL,
2.Support 1 to 22 tires
3.With the functions of ID learning/ID query/pressure and temperature measurement
4. send the tires data to instrument or other display device by can-bus

5. we have internal sensor(with bandage or vavle) and external sensor

No.
Item
Technical parameter
1
Input voltage
DC 12V to DC24
2
Working current
≦10mA
4
HF receive frequency
433.92MHz±50KHz
5
HF receive sensitivity
﹤-105dBm
6
Working temperature range
-40℃~85℃
7
Data transmission mode
Serial port
8
Baud rate for RF signal
19200bps
9
RF coding
Manchester
When you have big orders, we will give the all connector as bellowing, but for sample order, only give the 6pin connector from receiver, no have the 4pin connector

Repeater(Model: RP04)

1. Transfer data, intelligent pull
2. Support trailer exchange function
3. When far distance and weak signal, can increase the signal strength to make sure the transferred signal reception reliability
4. Full thread fixing type, adopt IPX6 anti-water testing standard
5. Interior integration RF emit and receive function, high sensitive data receiving
6. Trailer sensors and receiver data transmission
7. Sole corresponding ID code, prevent data collision
No.
Item
Technical Parameters
1
Working Voltage
DC 12V~DC 32V
2
Working Frequency
433.92 MHz±30KHZ
3
RF Transmit Signal Modulation Method
FSK
4
RF Signal Transmission Power
< 15 dbm
5
RF Signal Receiving Sensitivity
<-105 dbm
6
Working Temperature
-40℃ ~ 125℃
7
Weight
350g
8
Waterproof
IP67 (Without power line)

external sensor(Model T04W)

1、FSK modulating for RF signal, ASK modulating for LF signal
2、All imports car-standard material, long life, high stability and strong anti-interference ability
3、Pressure and temperature can be measured and monitored simultaneously, and have self-test and tire leakage monitoring function
4、External sensor is apply to all tire with 8v1 valve
No.
Item
Technical Parameters
1
Sensor battery
CR2050(450mAh)
2
Suitable
8v1 valve, bus or truck
3
Quiescent Current
﹤0.7uA
5
LF receive frequency
125 KHz±5 KHz
6
LF modulation mode
ASK
6
Pressure measurement range
0-1400kpa(0~203PSI)
7
RF Signal Modulation Method
FSK
8
Working Frequency
433.92 MHz±30KHZ
9
Pressure measurement accuracy
±10kpa/±1.45psi(20℃~50℃)
10
±48kpa/±6.96psi(-40℃~125℃)
11
Temperature measurement range
-40℃~125℃
12
Temperature measurement accuracy
±4℃(0℃~70℃)
13
Working temperature range
-30℃~85℃
14
Sensor battery lifespan
4 to 5 years(Battery cann't be replaced)
15
Protection grade
IP67
16
Main material of shell
Copper
17
Weight
19g±0.5g
