Quick Details
-
Brand Name:
-
SUNS
-
Model Number:
-
SXP-318
-
Max. Current:
-
12A/16A
-
Operating Temperature:
-
-37~82℃
-
Protection Level:
-
IP40
-
Three configurations::
-
momentary, push-pull, pull-to-lock
-
Quick-connect terminals:
-
0.188x0.02in (4.78mm x 0.51mm) OR 0.25x0.032in (6.35 x 0.81mm)
-
Certification:
-
international certification
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SUNS
-
Model Number:
-
SXP-318
-
Max. Current:
-
12A/16A
-
Operating Temperature:
-
-37~82℃
-
Protection Level:
-
IP40
-
Three configurations::
-
momentary, push-pull, pull-to-lock
-
Quick-connect terminals:
-
0.188x0.02in (4.78mm x 0.51mm) OR 0.25x0.032in (6.35 x 0.81mm)
-
Certification:
-
international certification

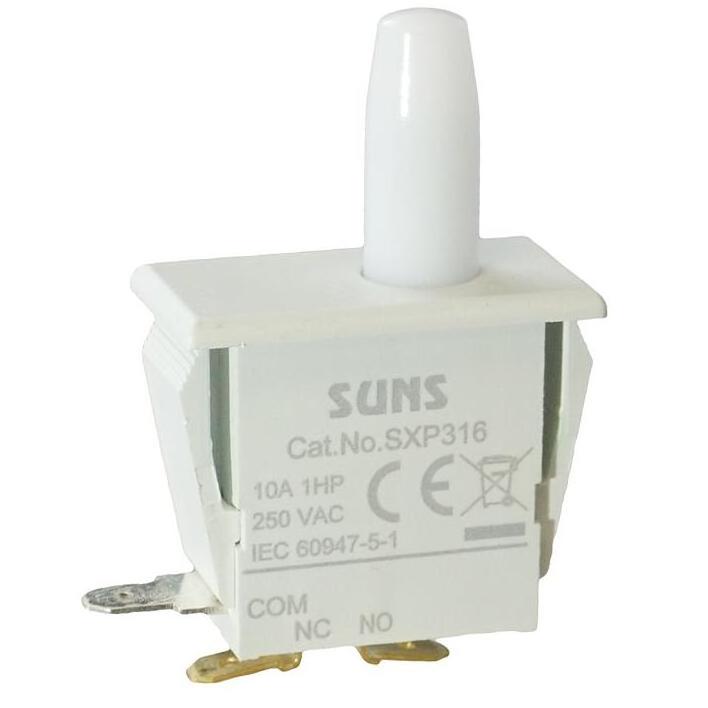

dpdt micro switches SXP3
Features
*Compact, light weight design, accurate repeatability
*Three configurations:
momentary, push-pull, pull-to-lock
*Snap-in design for easy installation for panel thickness
1.14 to 2.54mm (0.045 to 0.10 in)
*Quick-connect terminals: 0.188x0.02in (4.78mm x 0.51mm),
or 0.25x0.032in (6.35 x 0.81mm)
*Silver or gold-alloy contacts
*Applications: appliance door lights, door interlocks,
indicator circuits
| Specification: | |
| Operating Speed: |
10mm-1m/sec
|
| Operating Frequency | Mechanically:120ops/min |
| Electrically:30ops/min | |
| Insulation Resistance | >100MΩ@500V DC |
| Contact Resistance | <25mΩ |
| Electrical Rating |
12A Standard: 12A 1/2HP 125VAC, 10A 1/2HP 250VAC
16A SPDT: 16A 3/4HP 125VAC, 12A 1HP 250VAC
16A DPDT: 16A 1HP 125VAC, 12A 1HP 250VAC
|
| Working Temperature |
-37~+82°C (-35~180°F) with no icing
|
| Dielectric Strength | same poles:1000V AC 50/60Hz 1min |
| pole to ground:2500V AC 50/60Hz 1min | |
| Service Life | Mechanically :1 millions ops |
|
Electrically :
100,000 ops (minimum)
|
|
| Humidity | <85%RH |
| Degree of Protection | IP40 |
