KL-AIR filter element C100E-03 for compressor filter
-
Transport Package:
-
Standard export packaging
-
Specification:
-
365mm*107mm
-
Trademark:
-
KELIN AIER
- Product Details
- {{item.text}}
Quick Details
-
Origin:
-
Hangzhou China
-
Material:
-
Activated Carbon
-
Application:
-
Industry Medicine Metallurgy Other
-
Type:
-
Air Filter
-
Filter Connector:
-
Other
-
Filtration Grade:
-
HEPA Filter PRE Filter
-
Activated Carbon Filter Type:
-
Other
-
Payment:
-
L/C T/T
-
Export Port:
-
SHANGHAI NINGBO
-
Output:
-
1000pieces/year
-
Model NO:
-
C100E-03
Quick Details
Product overview

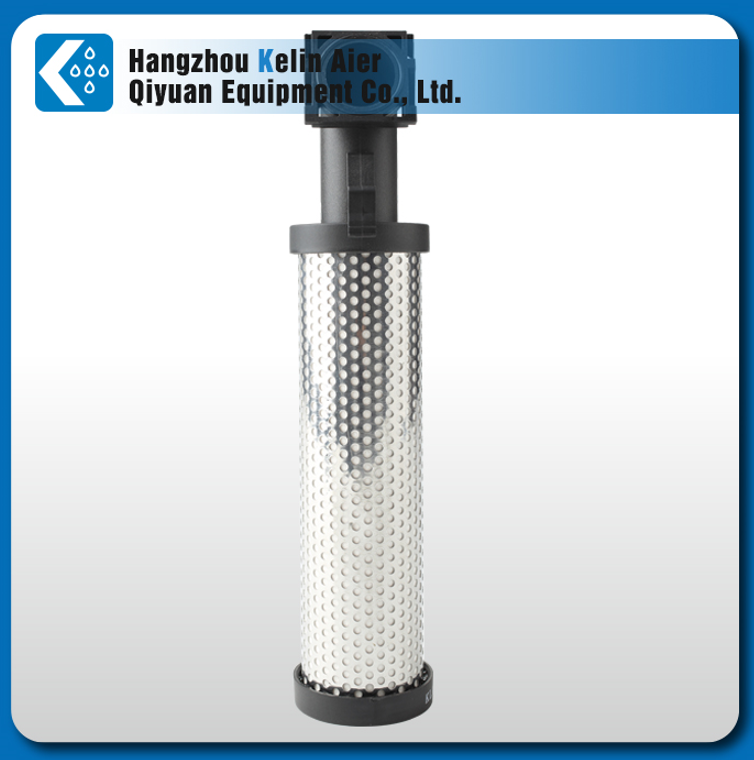

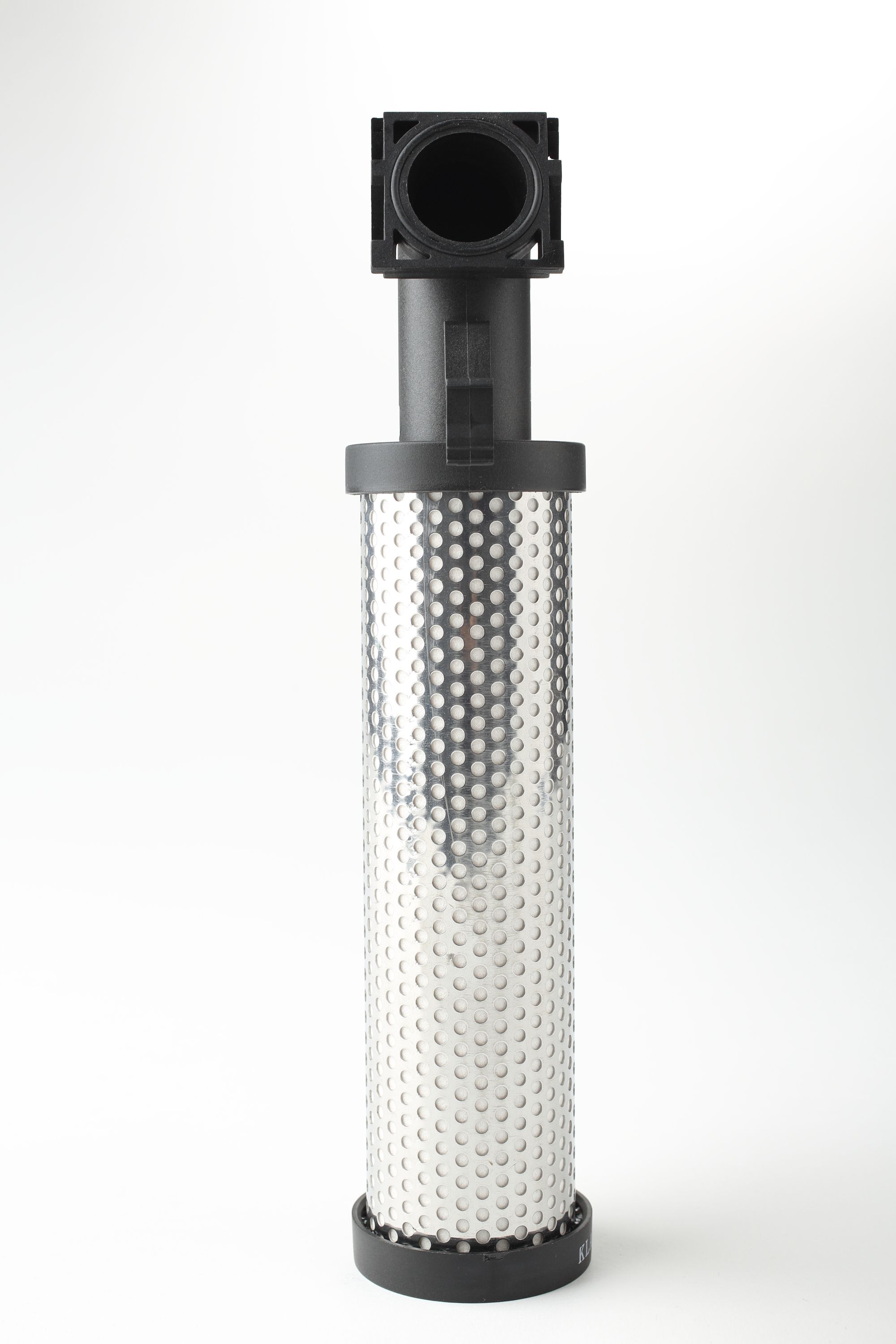

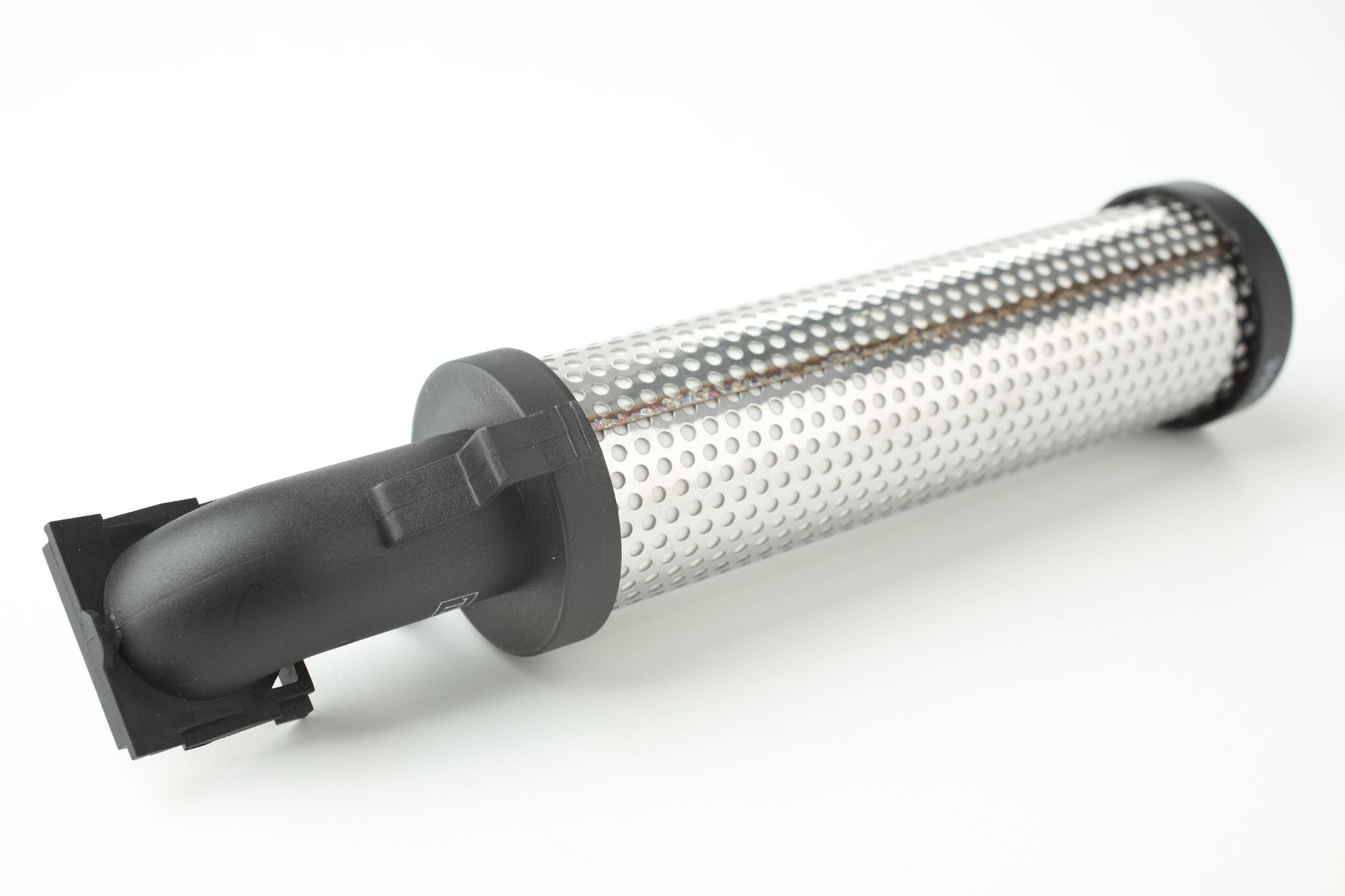

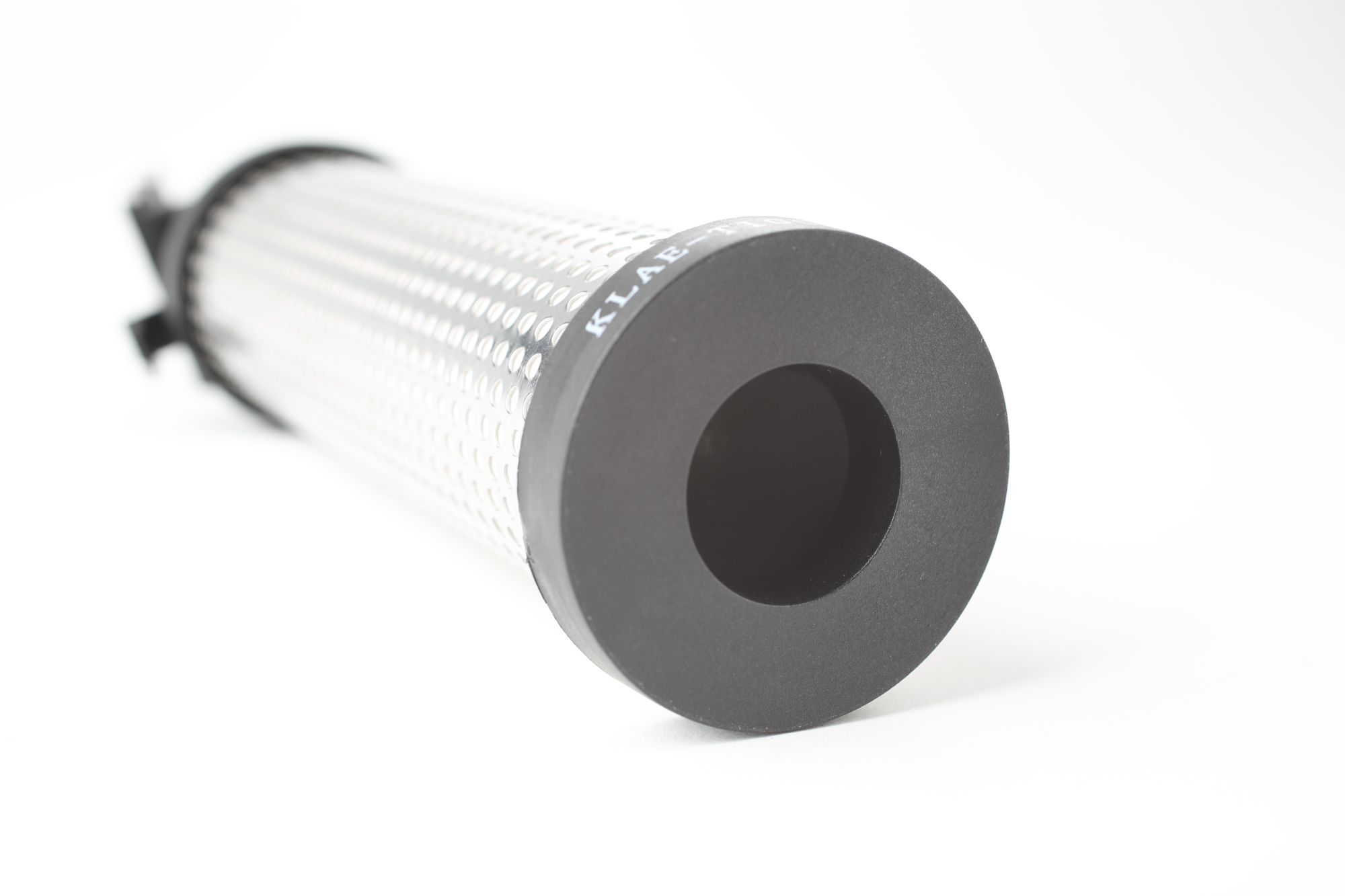

KL-AIR filter element C100E-03 for compressor filter
KL filter provides high quality compressed air for users, filter is sold in more than 20 countries and districts.
Installing KL compressed air filter can ultimately remove compressed air pollutants. (such as oil, water and dust etc.) Ensuring user’s maximum clean compressed air.
 | KL company have 5 kinds of compressed air dryer filter for your choose: CLASS C Main pipe dust filter ----3micron3ppm CLASS T Main pipe oil/water filter ----1micron1ppm CLASS A High efficient oil filter ----0.01micron0.01ppm CLASS F Supper high efficient oil filter----0.01micron0.001ppm CLASS H Activated carbon micro oil moisture filter----0.01micron0.003ppm |
KL Filter Element——High performance filter medium
1. KL compressed air filter element is adopted of aeronautic diversion technology, the air inlet is designed to a smooth 90°elbow which can greatly reduce the turbulence and pressure loss.
2. Adding a cone-shaped flow diffuser at the bottom of filter element, flow diffusion increases the filtering area.

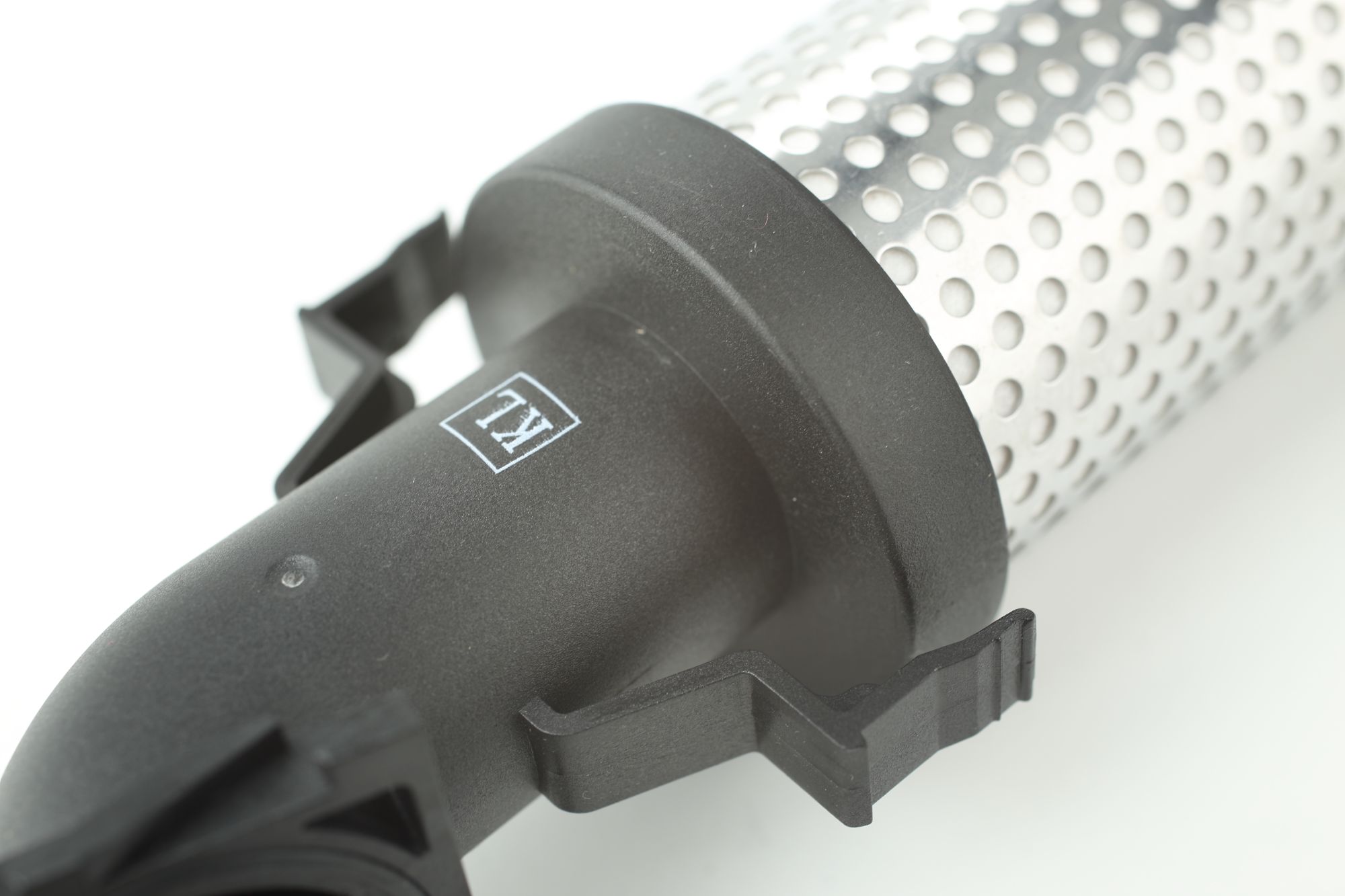

3. Adopting bayonet type installation, easy to replace the filter element.
4. Imported high performance glass fiber materials
5. Adopting large inlet connection for 800above filter element, which reduces the resistance of filter element, and easier to install.
KL Filter shell ——International Advanced Design Concept
1. KL compressed air filter is composed of three segments, it can be disassembled without tool, easy to replace filter element and clean the built-in drainer.
2. Interior shell is treated with antioxidant preservative treatment, guaranteeing shell’s lifetime, avoiding secondary pollution.
3. Precise electronic DP displayer, it good can display differential pressure and working time precisely, remind user to change the new element.
4. High preference drainer, long lifetime, high efficiency, not easy to plug
Components
Specification
| GRADE | MODEL | CAPACITY | Max.INLET TEMP. | PRESSURE | PRECISION | ELEMENT (model*pcs) | CONNECTION | WEIGHT KG |
| 35 | C35 | 1.6m3/min | 3um3ppm | C35E*1 | ||||
| T35 | 1um1ppm | T35E*1 | 1" | 2.8 | ||||
| A35 | 80℃ | 2-13Bar | 0.01um0.01ppm | A35E*1 | ||||
| F35 | 0.01um0.001ppm | F35E*1 | ||||||
| H35 | 0.01um0.003ppm | H35E*1 | ||||||
| 70 | C70 | 2.6m3/min | 3um3ppm | C70E*1 | ||||
| T70 | 1um1ppm | T70E*1 | 1" | 3 | ||||
| A70 | 80℃ | 2-13Bar | 0.01um0.01ppm | A70E*1 | ||||
| F70 | 0.01um0.001ppm | F70E*1 | ||||||
| H70 | 0.01um0.003ppm | H70E*1 | ||||||
| 100 | C100 | 3.8m3/min | 3um3ppm | C100E*1 | ||||
| T100 | 1um1ppm | T100E*1 | 1" | 4 | ||||
| A100 | 80℃ | 2-13Bar | 0.01um0.01ppm | A100E*1 | ||||
| F100 | 0.01um0.001ppm | F100E*1 | ||||||
| H100 | 0.01um0.003ppm | H100E*1 | ||||||
| 150 | C150 | 5.0m3/min | 3um3ppm | C150E*1 | ||||
| T150 | 1um1ppm | T150E*1 | 1-1/2" | 5.5 | ||||
| A150 | 80℃ | 2-13Bar | 0.01um0.01ppm | A150E*1 | ||||
| F150 | 0.01um0.001ppm | F150E*1 | ||||||
| H150 | 0.01um0.003ppm | H150E*1 | ||||||
| 200 | C200 | 7.0m3/min | 3um3ppm | C200E*1 | ||||
| T200 | 1um1ppm | T200E*1 | 1-1/2" | 6.8 | ||||
| A200 | 80℃ | 2-13Bar | 0.01um0.01ppm | A200E*1 | ||||
| F200 | 0.01um0.001ppm | F200E*1 | ||||||
| H200 | 0.01um0.003ppm | H200E*1 | ||||||
| 300 | C300 | 8.5m3/min | 3um3ppm | C300E*1 | ||||
| T300 | 1um1ppm | T300E*1 | 1-1/2" | 7.3 | ||||
| A300 | 80℃ | 2-13Bar | 0.01um0.01ppm | A300E*1 | ||||
| F300 | 0.01um0.001ppm | F300E*1 | ||||||
| H300 | 0.01um0.003ppm | H300E*1 | ||||||
| 350 | C350 | 11.5m3/min | 3um3ppm | C350E*1 | ||||
| T350 | 1um1ppm | T350E*1 | 1-1/2" | 9.2 | ||||
| A350 | 80℃ | 2-13Bar | 0.01um0.01ppm | A350E*1 | ||||
| F350 | 0.01um0.001ppm | F350E*1 | ||||||
| H350 | 0.01um0.003ppm | H350E*1 | ||||||
| 400 | C400 | 13.5m3/min | 3um3ppm | C400E*1 | ||||
| T400 | 1um1ppm | T400E*1 | 2" | 19.2 | ||||
| A400 | 80℃ | 2-13Bar | 0.01um0.01ppm | A400E*1 | ||||
| F400 | 0.01um0.001ppm | F400E*1 | ||||||
| H400 | 0.01um0.003ppm | H400E*1 | ||||||
| 600 | C600 | 17m3/min | 3um3ppm | C600E*1 | ||||
| T600 | 1um1ppm | T600E*1 | 2" | 23 | ||||
| A600 | 80℃ | 2-13Bar | 0.01um0.01ppm | A600E*1 | ||||
| F600 | 0.01um0.001ppm | F600E*1 | ||||||
| H600 | 0.01um0.003ppm | H600E*1 |
Company profile
Exhibition
Packaging&shiping
FAQ
1. Are you manufacturer or Trade Company?
We are OEM professional air dryer, founded in 1997.
Leading products: compressed air dryer, desiccant air dryer, air filter, water chiller, PSA gas generator.
