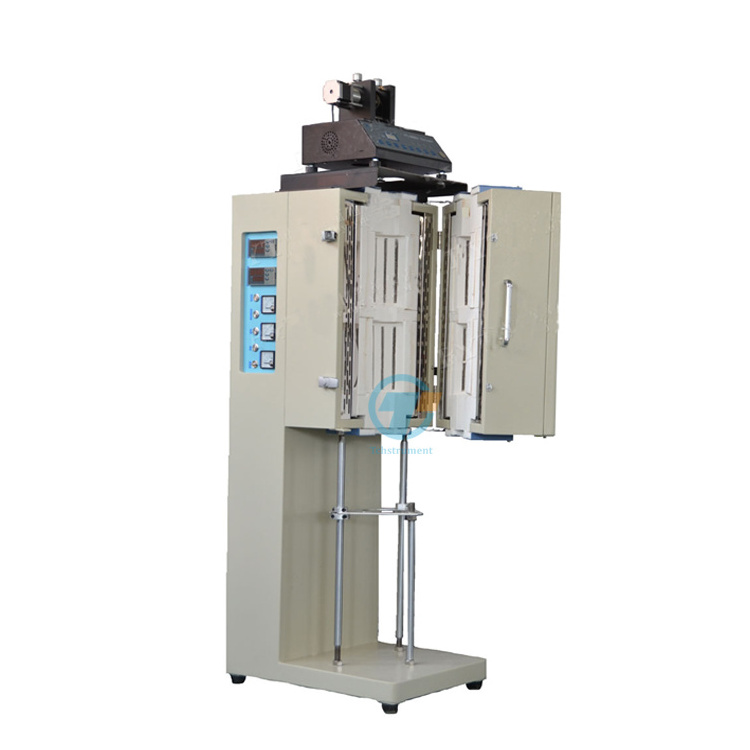

Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Explore More Products

Product Description




dimension(mm)	545X420X1070	545X420X1070	545X420X1070

phase
	One set of Ni-SS hanging wire is included (. Max. working temperature is 800C. Optional hanging wire for higher working temperature is available upon request: Ni-Cr-Al wire (not included) Max. working temperature < 1100°C Platinium wire (not included) Max.working temperature > 1200°C and < 1600°C A thin hanging wire goes through the top flange. A positive inert gas can keep processing tube under controlled atmosphere For air-sensitive material, the sample shall be sealed in a small quartz tube with pre-vacuumed as Pic below right
	6"L x 4"W Touch Screen Wire descending speed is programmable within 3 segments. Precise DC stepper motor controls traveling speed. Pulling speed range: 1-500 um/sec adjustable with the accuracy of +/- 0.05% Total stoke length controlled by touch screen: 350mm Power: 50W, 110V - 240V C Optional: Lower speed range is available upon request at extra cost.
