Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Product name:
-
CNC Oscillating Knife Gasket Cutting Machine Vibrating Blades Cutter
-
Working area:
-
1300x2500mm
-
Control system:
-
Mach3, DSP RichAuto A1X A11E controller
-
Driver motor:
-
450B motor, MA860H driver
-
Spindle:
-
3.2kw 4.5kw HQD air cooled or water cooled spindle
-
Transmission:
-
Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw
-
Table:
-
Aluminum Profile T Slot Clamping
-
Inverter:
-
Fuling Inverter
-
Machine frame:
-
heavy duty frame
-
Dust cover:
-
yes, for protecting rack and pinion
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Product name:
-
CNC Oscillating Knife Gasket Cutting Machine Vibrating Blades Cutter
-
Working area:
-
1300x2500mm
-
Control system:
-
Mach3, DSP RichAuto A1X A11E controller
-
Driver motor:
-
450B motor, MA860H driver
-
Spindle:
-
3.2kw 4.5kw HQD air cooled or water cooled spindle
-
Transmission:
-
Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw
-
Table:
-
Aluminum Profile T Slot Clamping
-
Inverter:
-
Fuling Inverter
-
Machine frame:
-
heavy duty frame
-
Dust cover:
-
yes, for protecting rack and pinion
|
X,Y,Z Working Area
|
1500*3000mm*200mm
|
|
Working Voltage
|
220V 3phase 60HZ
|
|
Control System
|
Mach3 control system
|
|
Mach3 wireless handle
|
|
|
Spindle
|
6KW Italy HSD air cooling spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Inverter
|
7.5KW Delta inverter
|
|
Drive Motors
|
FL118 stepper motor
|
|
YAKO2811 bigger driver
|
|
|
Table type
|
T-slot & vacuum working table
|
|
Auxiliary equipment
|
11KW air type vacuum pump
|
|
Lubrication
|
Auto oil lubrication system
|
|
Tool sensor calibration
|
Manuel tool sensor
|
|
Limit switch
|
Japan Omron Limit switch
|
|
Auxiliary equipment
|
7.5KW dust collector
|
|
Positioning cylinder
|
Position cylinder, 2pcs on x axis 3pcs on y axis
|

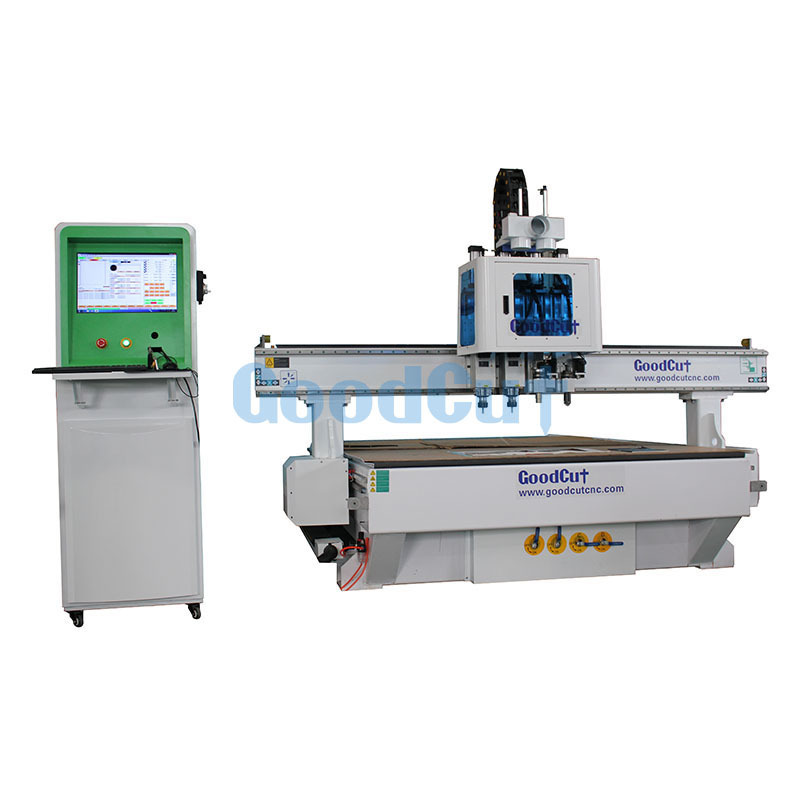

CNC Wood Router Machine Advantages:
1. The bed frame is constructed from thick-walled steel pipes. The bed has undergone finite element analysis (FEA) and designed to provide a rigid and stable processing platform for the machine tool, and all bed components have been stress-relieved before the bed is processed.
2. High-precision ball screw which moving smoothly to ensure the machine's high precision.
3. High-performance driver motor to ensure the machine's high speed and accuracy.
4. Perfect design and high quality accessories to minimize the machine's failure rate.
5. Breakpoint specific memory to keep the carving status when power off, machining time forecast and other functions in case of the accidental power outages.
6. The table top adopts vacuum adsorption table top, which is made of bakelite, which is resistant to high temperature and corrosion, and can strongly absorb wood, MDF, and non-metallic materials with different sizes. The vacuum adsorption table is divided into six machining areas, which can be processed in a single area or at the same time, which has improved the working efficiency.
7. The embedded DSP numerical control system adopts USB transmission, which can realize the function of continuous carving and power-off memory. The standard 128M flash memory can realize completely offline operation, processing time prediction and other humanized functions, and the performance of relief carving is excellent.
8. Most professional CAD/CAM software compatibility. The creative works are compatible with most free and paid graphic design software (e.g. AutoCAD, AlphaCAM, PowerMill, MasterCAM, ArtCAM, Fusion 360, hyperMill, UG & NX, SolidWorks, SolidCAM, BobCAD, Solid Edge, ScultpGL, K-3D, Antimony, DraftSight, CATIA, Smoothie 3D, CAMWorks, SprutCAM, HSM.).
9. It can cut a full 4x8 sheet of plywood, MDF, wood, or aluminum with high cutting speed.
10. With the 4th axis, it can do rotary carving and cutting on 3D cylinders.
