Quick Details
-

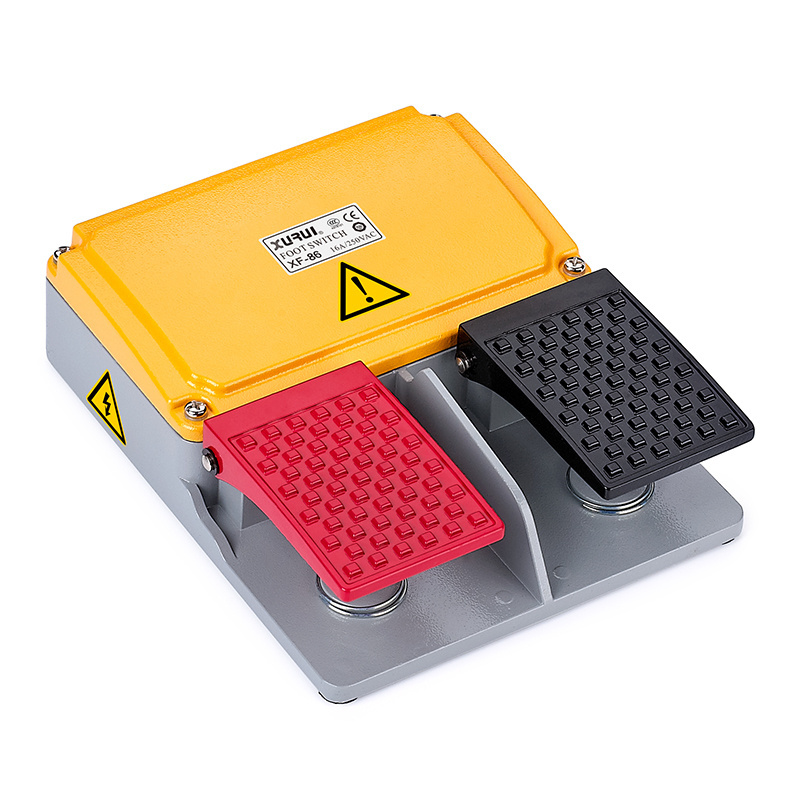

Model Number:
-
XF-86
-
Max. Current:
-
16A
-
Certification:
-
TUV CE ROHS CCC UL
-
mechanical life:
-
100,000times above
-
Electrical life:
-
1,000,000times above
-
Protection Degree:
-
IP65
-
Contact form:
-
1NO1NC*2
-
Material:
-
Aluminium alloy
-
Inner Switch:
-
Slow action type
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XF-86
-
Max. Current:
-
16A
-
Certification:
-
TUV CE ROHS CCC UL
-
mechanical life:
-
100,000times above
-
Electrical life:
-
1,000,000times above
-
Protection Degree:
-
IP65
-
Contact form:
-
1NO1NC*2
-
Material:
-
Aluminium alloy
-
Inner Switch:
-
Slow action type
Features
- Kinds of shell's material for choice, such as engineering plastic, steel panel, aluminium alloy, etc.
- Metal shell use the stregenthening to reast the surface, bears the impact, the wearability, thermostable.
- Cable lock-in jacket is made for the cable coming out and it is waterproof, grease proofing.
- Switch bottom is equipped with the rubber pad, for skidproof.
- Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.
Application
Model & Meanings
Parameter
| Contact Resistance | 25mΩ(initial value) |
| Insulation Resistance | 100 m Ω(above) DC500V |
| Withstand Voltage | ≥2000VAC |
| Mechanical Life | 1,000,000 Above |
| Electrical Life | 100,000 Above |
| Operating Temperature | -20~+70℃ |
| Operating Humidity | ≤85% |
Contact Form
Application Attentions
- According to the difference of load and current value, rated load should be taken note. Current value series is 10A, 15A and 16A.
- When transporting and moving, pls take note of the short circuit or open circuit may happen in internal wiring.
- Please take note of the level of protection when used in water, oil and bug dust. This series has protective type and unprotective type.
- The immediate cause for broken is stress and attack, please pay attention.
- Warning mark 'Danger! High Voltage!' and 'Take note!' remind us pay attention to personal safety and correctly operation.
Dimension
Specification
| Material | Aluminium |
| Inner Switch | Slow Action Type |
| Rating Load | 16A/250VAC |
| Contact Form | 1NC1NO × 2 |
| Outgoing Cable | -- |
| Protection Degree | IP65 |
