Quick Details
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Brand Name:
-
JINSP
-
Model Number:
-
ST100S, ST100S
-
Focal Length:
-
N/M
-
Wavelength Range:
-
N/M, 785nm
-
Material:
-
N/M
-
Detector:
-
Back-illuminated deep depletion (near-IR optimized)
-
Effective pixels:
-
2000 * 256
-
Cell size:
-
15 μm * 15 μm
-
Incident optical interface:
-
SMA905 fibre optic interface, free space
-
Operating temperature:
-
-20°C~60°C
-
Storage temperature:
-
-30°C~70°C
-
Operating humidity:
-
< 90% RH (non-condensing)
-
Power:
-
N/M
-
Voltage:
-
N/M
Quick Details
-
Warranty:
-
1 years
-

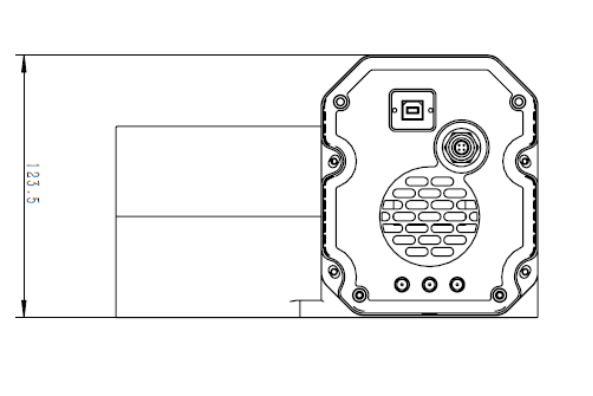

Size:
-
364*200*124mm
-
Weight:
-
<5kg
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Brand Name:
-
JINSP
-
Model Number:
-
ST100S, ST100S
-
Focal Length:
-
N/M
-
Wavelength Range:
-
N/M, 785nm
-
Material:
-
N/M
-
Detector:
-
Back-illuminated deep depletion (near-IR optimized)
-
Effective pixels:
-
2000 * 256
-
Cell size:
-
15 μm * 15 μm
-
Incident optical interface:
-
SMA905 fibre optic interface, free space
-
Operating temperature:
-
-20°C~60°C
-
Storage temperature:
-
-30°C~70°C
-
Operating humidity:
-
< 90% RH (non-condensing)
-
Power:
-
N/M
-
Voltage:
-
N/M
Product Description

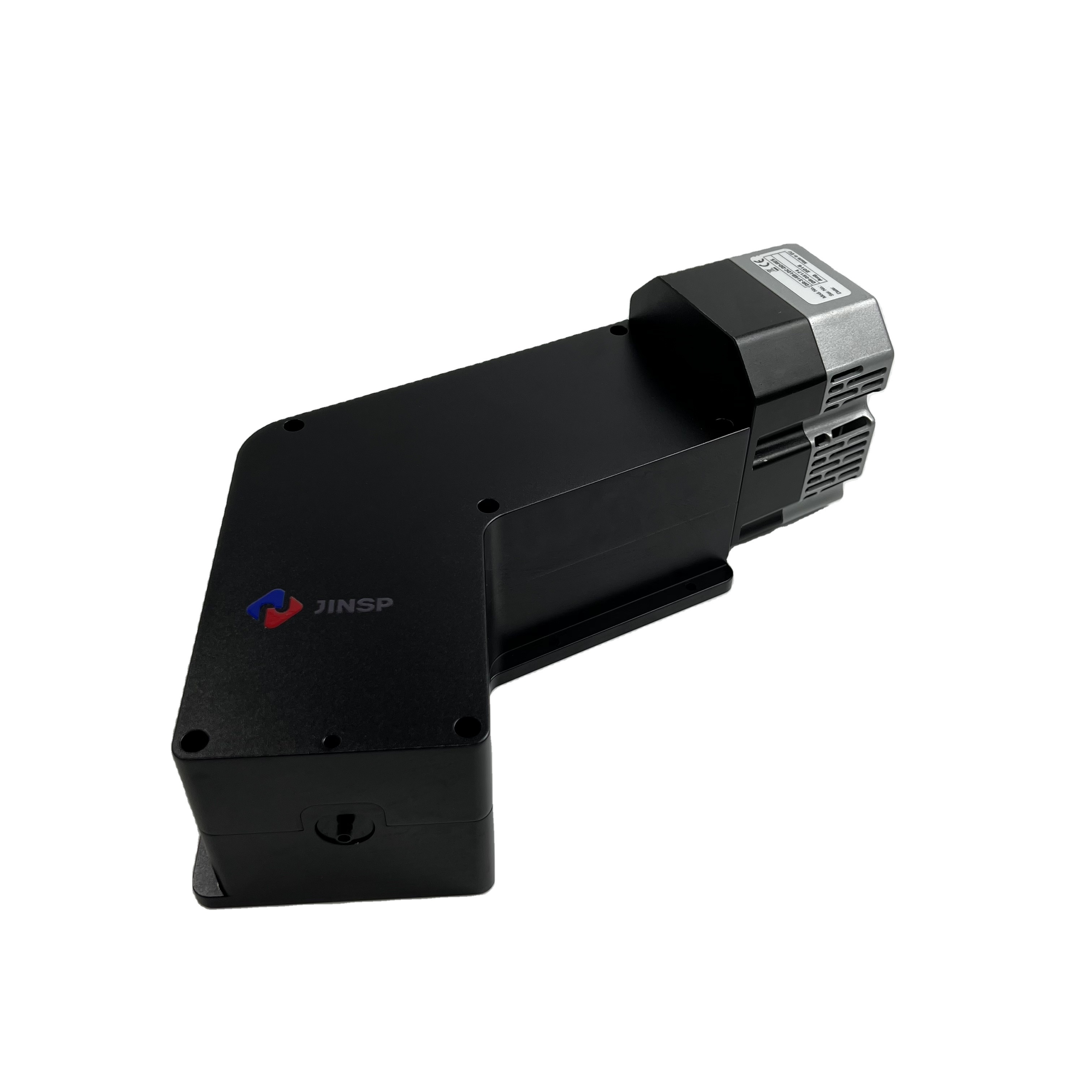

ST100S Transmission imaging spectrometer
ST100S transmission imaging spectrometer uses VPH volume phase holographic grating and a scientific-grade camera. It has extremely high sensitivity and can be used for 785nm Raman spectrum detection and other weak signal detection.
|
Detector
|
Back-illuminated deep depletion (near-IR optimized)
|
|
Effective pixels
|
2000 * 256
|
|
Cell size
|
15 μm * 15 μm
|
|
Raster
|
VPH volume holographic transmission grating
|
|
Wavelength range
|
785nm
|
|
Optical resolution
|
0.35nm，Corresponds to 5cm-1（50μm slit）
0.25nm，Corresponds to 3cm-1（25μm slit） |
|
Integration time
|
1ms-3600s
|
|
Diffraction efficiency
|
>85%
|
|
ADC bit depth
|
16 bit
|
|
Incident optical interface
|
SMA905 fiber optic interface, free space
|
