Stop the burner when oil level reaches the high oil float
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Voltage:
-
110V or 220V
-
Weight:
-
25 KG
-
Dimension(L*W*H):
-
510x455x300mm
-
Product name:
-
waste oil burner
-
nozzle:
-
siphon brass 1x2.0mm
-
tube diameter:
-
114mm
-
Oil consumption:
-
6-9L/H
-
max,output heat:
-
100,000Kcal/H (400,000Btu/H)
-
working pressure:
-
0.5bar (7psi)
-
Fuel:
-
all kinds of waste oil, pyrolysis oil, used cooking oil
-
Application:
-
boiler, furnace, oven, grain dryer
-
business type:
-
original manufacturer
Quick Details
-
Warranty:
-
1 year
-
Marketing Type:
-
Hot Product 2020
-
Core Components:
-
Fan motor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Voltage:
-
110V or 220V
-
Weight:
-
25 KG
-
Dimension(L*W*H):
-
510x455x300mm
-
Product name:
-
waste oil burner
-
nozzle:
-
siphon brass 1x2.0mm
-
tube diameter:
-
114mm
-
Oil consumption:
-
6-9L/H
-
max,output heat:
-
100,000Kcal/H (400,000Btu/H)
-
working pressure:
-
0.5bar (7psi)
-
Fuel:
-
all kinds of waste oil, pyrolysis oil, used cooking oil
-
Application:
-
boiler, furnace, oven, grain dryer
-
business type:
-
original manufacturer
Available Fuel List
Our burner can utilize all kinds of liquid oil/waste oil with or without i
mpurities
, can be divided into six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol, etc (
Link
)
Waste Engine Oil
Vegetable Oil
Diesel Oil
Do you know how much heat/power you can gain from different fuels?
Please choose the correct model from the below table before you put an order.
|
Fuel
|
Diesel Oil, Fuel Oil,
Pyrolysis Oil Sample-C1
(Reference Calorific Value:
10 000Kcal/kg)
|
|
Vegetable Oil
(Reference Calorific Value:
9 000Kcal/kg)
|
|
Engine Oil/Waste Engine Oil
(Reference Calorific Value:
8 500Kcal/kg)
|
|
|||
|
Model
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
|||
|
30 000
|
34
|
27 000
|
31
|
25 500
|
29
|
||||
|
50 000
|
57
|
45 000
|
51
|
42 500
|
48
|
||||
|
100 000
|
114
|
90 000
|
102
|
85 000
|
97
|
||||
|
200 000
|
227
|
180 000
|
205
|
170 000
|
193
|
||||
|
300 000
|
341
|
270 000
|
307
|
255 000
|
290
|
||||
|
400 000
|
455
|
360 000
|
409
|
340 000
|
386
|
||||
|
500 000
|
570
|
450 000
|
511
|
425 000
|
483
|
||||
|
600 000
|
682
|
540 000
|
614
|
510 000
|
580
|
||||
|
900 000
|
1023
|
810 000
|
920
|
765000
|
870
|
||||
|
12 00 000
|
1360
|
10 80 000
|
1227
|
10 20 000
|
1160
|
||||
|
18 00 000
|
2045
|
16 20 000
|
1840
|
15 30 000
|
1740
|
||||
|
24 00 000
|
2730
|
21 60 000
|
2455
|
20 40 000
|
2320
|
||||
|
36 00 000
|
4090
|
32 40 000
|
3682
|
30 60 000
|
3478
|
||||

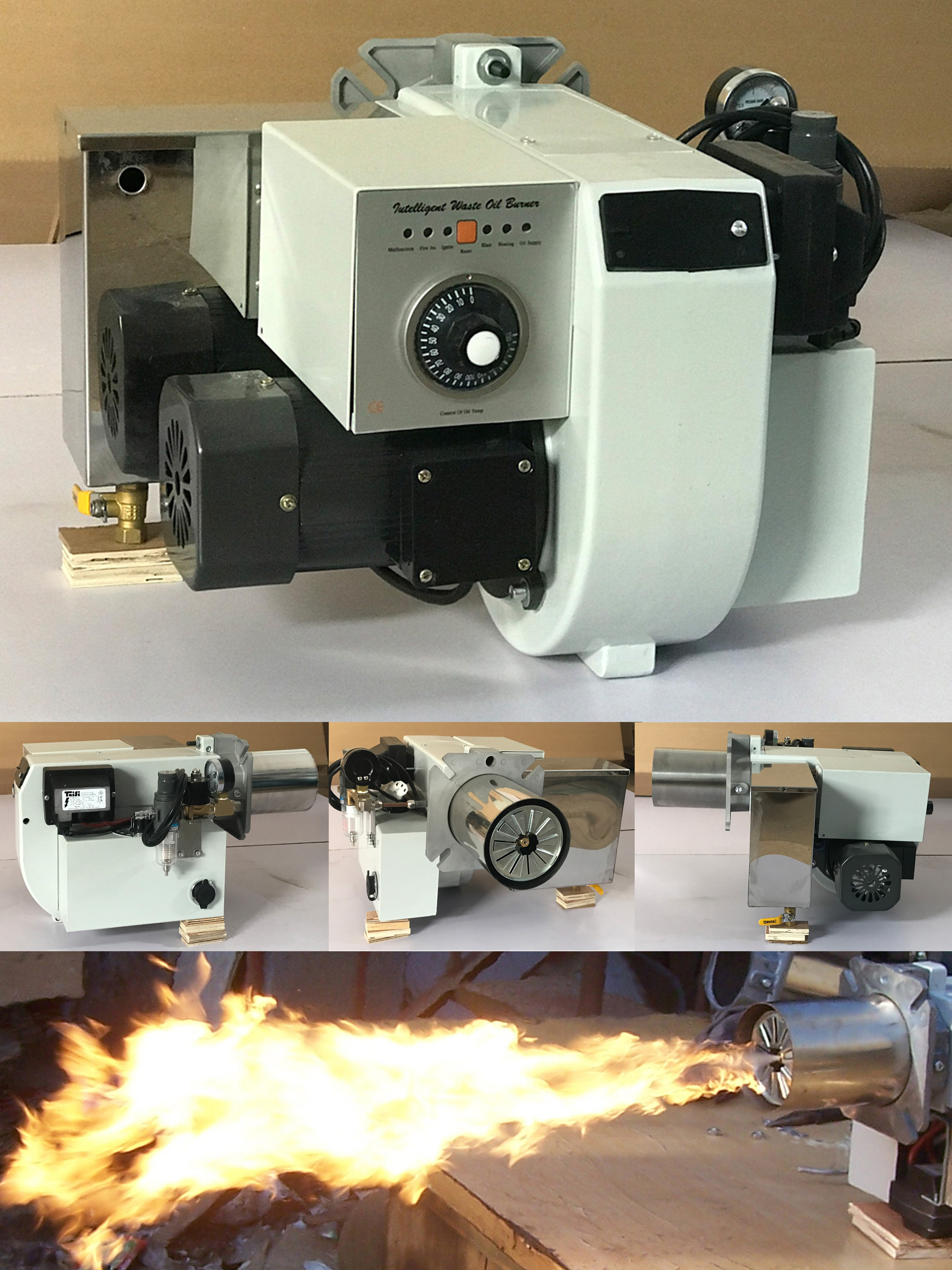

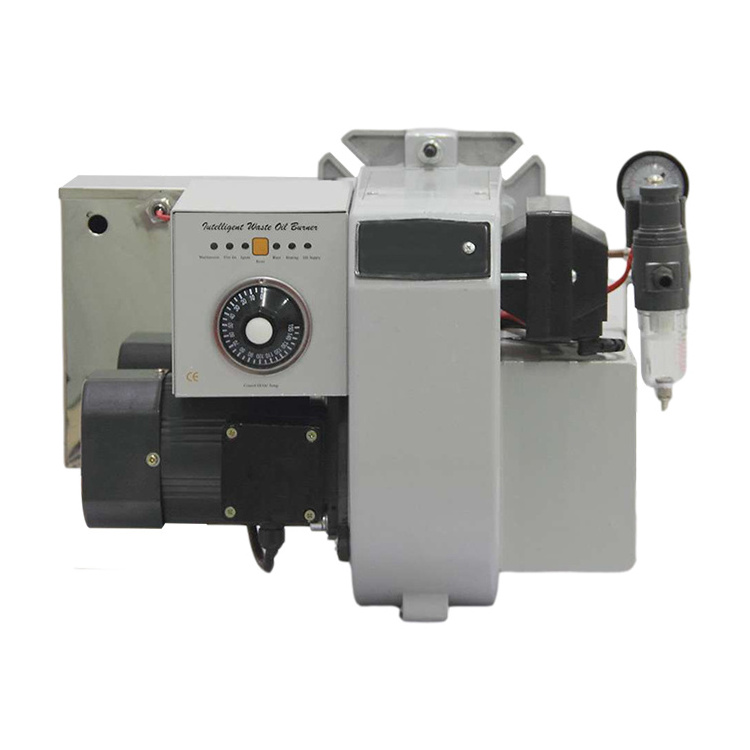

KV10 Oil Burner Description
KV10 Oil Burner Feature
1)
Pc board control, works fully automatically
2) Working stage & Malfunction readable, suit for different kinds of fuel
3) Customized siphon brass nozzles, casted flame ring, reach the best combustion
4) Multi safety protection
Oil pump protection
Stop the burner when oil pumps more than 2 minutes
Photocell protection
Stop the burner when there is light

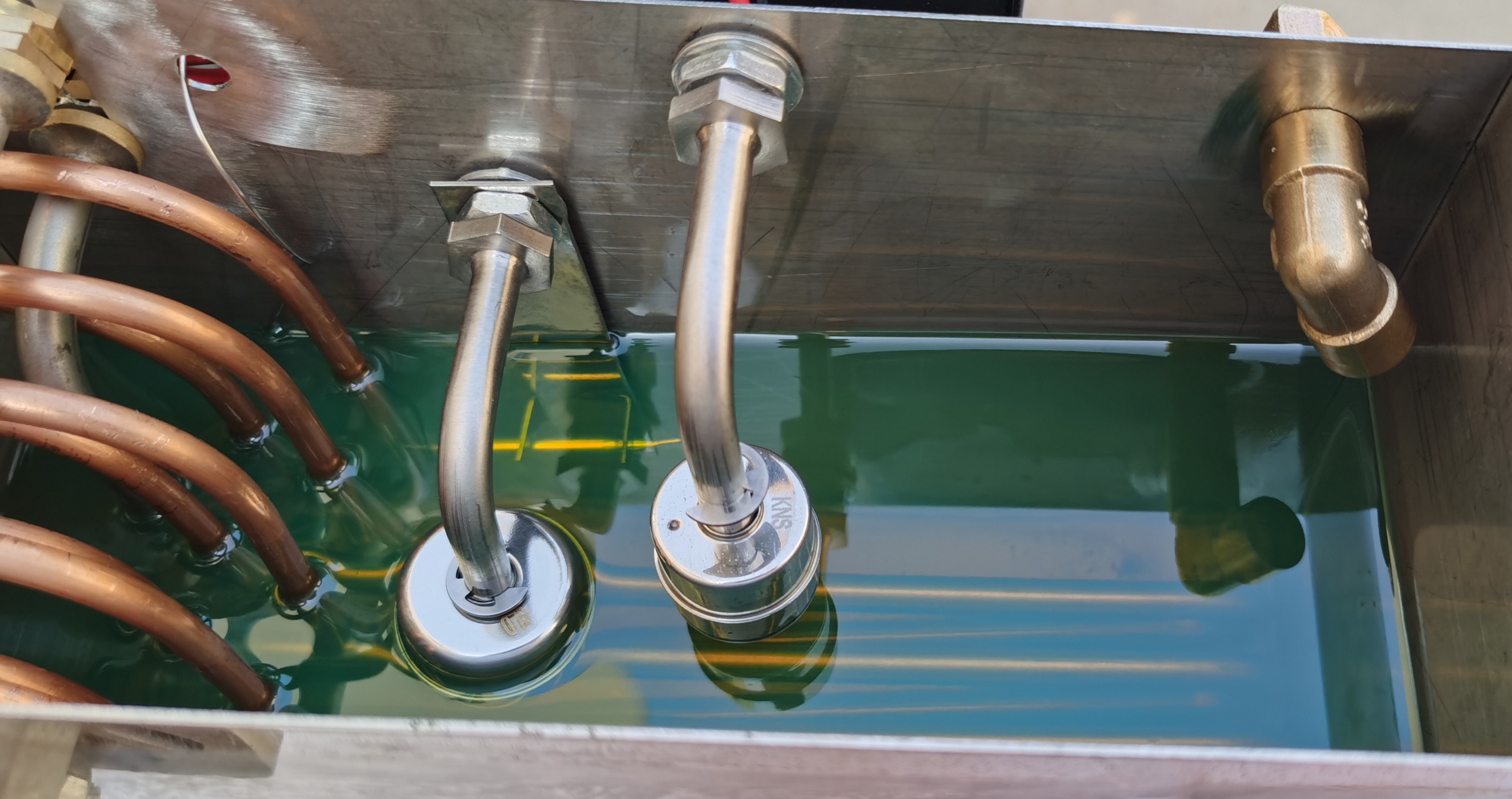

Oil level protection
External Air Compressor Selection Guide
Installation Example
Our waste oil burner has various applications, can use for both individual and industrial area
Small power burners are very popular for individual heating, for home, swimming pool, grain dryer, chicken house, fryer, etc
Big power burners are suitable for industrial area, such as boiler, furnace, grain dryer, mold casting,
reactor,
incinerator, etc
