Quick Details
-
Model Number:
-
SISO-40
-
Max. Current:
-
32A
-
Type:
-

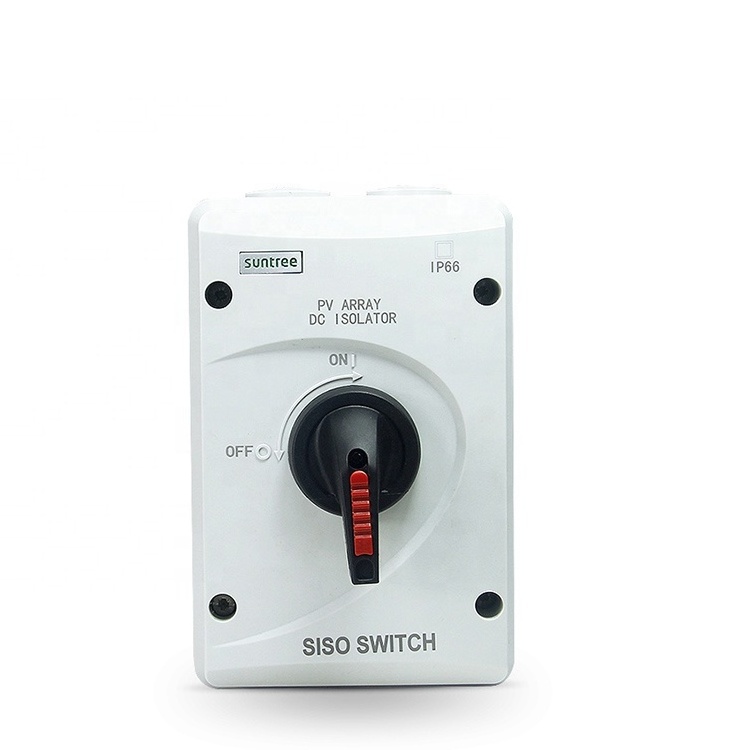

SISO-40 4P Isolator Switch
-
Connector:
-
M20 M25
-
Certificate:
-
TUV,IEC,CB,CE,SAA,ROHS
-
Rated current:
-
up to 32A
-
Class:
-
A
-
Color:
-
Grey/Black
-
Pole:
-
2-4Pole
-
Material:
-
High quality IP66
-
Mounting:
-
Din Rail Mounting
-
Gurantee period:
-
2year
Quick Details
-
Max. Voltage:
-
DC 1200V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree/OEM
-
Model Number:
-
SISO-40
-
Max. Current:
-
32A
-
Type:
-
SISO-40 4P Isolator Switch
-
Connector:
-
M20 M25
-
Certificate:
-
TUV,IEC,CB,CE,SAA,ROHS
-
Rated current:
-
up to 32A
-
Class:
-
A
-
Color:
-
Grey/Black
-
Pole:
-
2-4Pole
-
Material:
-
High quality IP66
-
Mounting:
-
Din Rail Mounting
-
Gurantee period:
-
2year
Product Description
Product Parameters
|
Model
|
SISO-40
|
|
Pole
|
3P/4P
|
|
Rated voltage
|
1000VDC to 1200VDC
|
|
Rated current
|
10A/16A/20A/25A/32A
|
|
Dimensions
|
108X101X166mm
|
|
Waterproof degree
|
IP66
|
|
Breaking capacity
|
1000/1700
|
|
Certificate
|
CE/CB/TUV/IEC/SAA
|
|
Standards
|
IEC60947-3
|
|
Ambient temperature
|
-25℃-- +85℃
|
|
Insulated voltage
|
DC 1500V
|
|
Connection type
|
M20 M25
|
Product Details Show

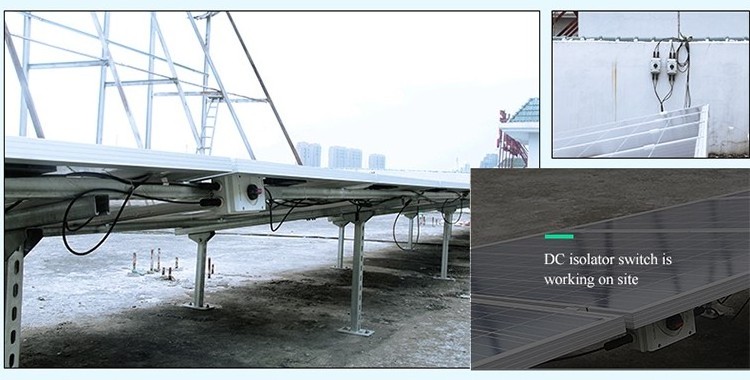

Application
