Quick Details
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
41.6 kN
-
Theoretical Shot Volume(cm³):
-
270 cm³
-
Injection Rate (g/s):
-
140 g/s
-
Injection Weight (g):
-
397 g
-
Screw diameter (mm):
-
45 mm
-
Screw L/D Ratio:
-
20.5
-
Distance between Tie Bars:
-
460*460
-
Weight (KG):
-
4300
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
410 mm
-
Model Number:
-
BS150-III
-
Brand Name:
-
Borche
-
Power (kW):
-
9.6 kW
-
Clamping Force (kN):
-
1500 kN
-
Certification:
-
CE ISO9001
-
Machine weight:
-
4300KG
-
Injection pressure:
-
235MPa
-
Color:
-
Customized
-
Language:
-
English
-
Oil Tank Capacity:
-
230L
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
460 mm
-
Distance between Tie Bars(Height)(mm):
-
460 mm
-
Mold Height(mm):
-
160 - 500 mm
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
41.6 kN
-
Theoretical Shot Volume(cm³):
-
270 cm³
-
Injection Rate (g/s):
-
140 g/s
-
Injection Weight (g):
-
397 g
-
Screw diameter (mm):
-
45 mm
-
Screw L/D Ratio:
-
20.5
-
Distance between Tie Bars:
-
460*460
-
Weight (KG):
-
4300
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
410 mm
-
Model Number:
-
BS150-III
-
Brand Name:
-
Borche
-
Power (kW):
-
9.6 kW
-
Clamping Force (kN):
-
1500 kN
-
Certification:
-
CE ISO9001
-
Machine weight:
-
4300KG
-
Injection pressure:
-
235MPa
-
Color:
-
Customized
-
Language:
-
English
-
Oil Tank Capacity:
-
230L
Product Description
|
DESCRIPTION OF BS150-III 634/150
|
|
|
||
|
International Class NO. UNIT
|
634/150
|
|
||
|
INJECTION UNIT
|
|
|
||
|
Screw Diameter
|
mm
|
40
|
||
|
Shot Volume
|
cm³
|
270
|
||
|
Shot Weight(PS)
|
g
|
254
|
||
|
Shot Weight(PS)
|
OZ
|
9
|
||
|
Injection Pressure
|
MPa
|
235
|
||
|
Screw L/D Ratio
|
L/d
|
23
|
||
|
Injection Stroke
|
mm
|
215
|
||
|
Screw Rotary Speed max
|
rpm
|
240
|
||
|
Nozzle Contact Force
|
KN
|
30
|
||
|
Nozzle Stroke
|
mm
|
250
|
||
|
CLAMPING UNIT
|
|
|
||
|
Clamping Force
|
KN
|
1500
|
||
|
Opening Stroke
|
mm
|
410
|
||
|
Platen Size
|
mm*mm
|
670*670
|
||
|
Space btw. Tie Bars
|
mm*mm
|
460*460
|
||
|
Daylight max
|
mm
|
910
|
||
|
Mold Thickness(min-max)
|
mm
|
160-500
|
||
|
Ejection Stroke
|
mm
|
130
|
||
|
Ejector Force
|
KN
|
41.6
|
||
|
Ejector Pin
|
unit
|
4+1
|
||
|
POWER UNIT
|
|
|
||
|
System Pressure
|
Mpa
|
17.5
|
||
|
Pump Motor
|
KW
|
15
|
||
|
Heating Capacity
|
KW
|
9.6
|
||
|
No. of Heater Zones
|
unit
|
5
|
||
|
GENERAL UNIT
|
|
|
||
|
Oil Tank Capacity
|
L
|
230
|
||
|
Machine Dimensions
|
m*m*m
|
4.85*1.42*1.94
|
||
|
Machine Weight
|
KG
|
4300
|
||
BS-III Main Features
Detailed Images

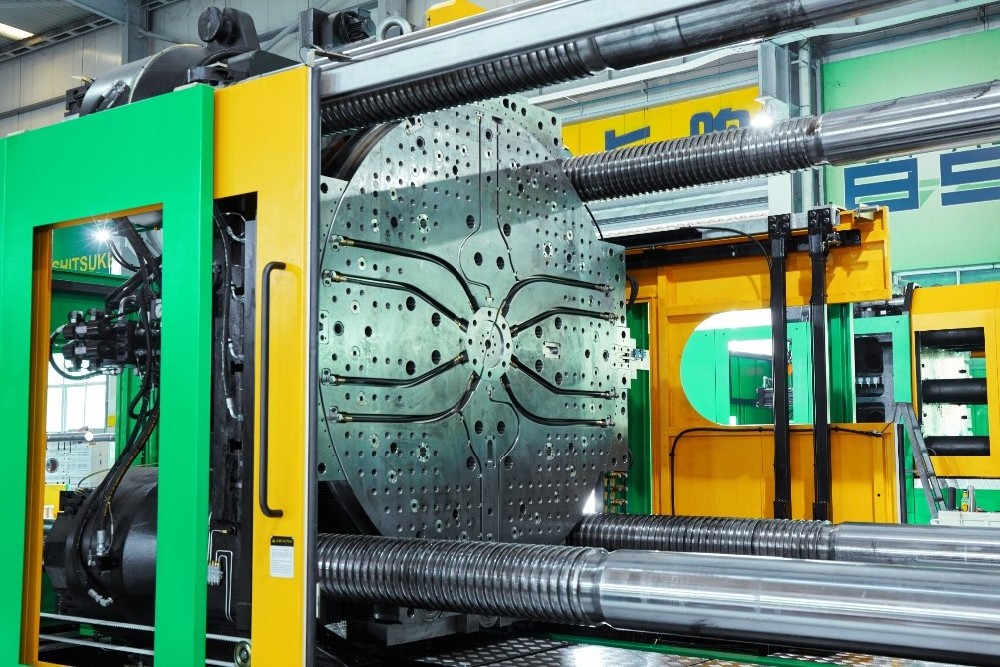

MOVING PL ATEN CLA MPING

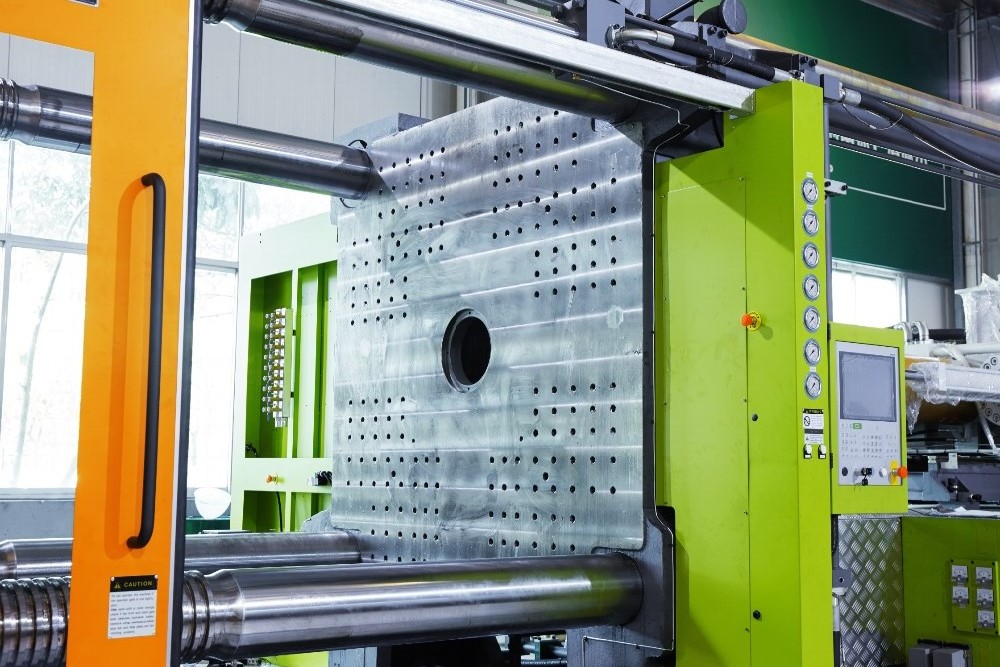

SUPER LONG LASTING TIE BAR

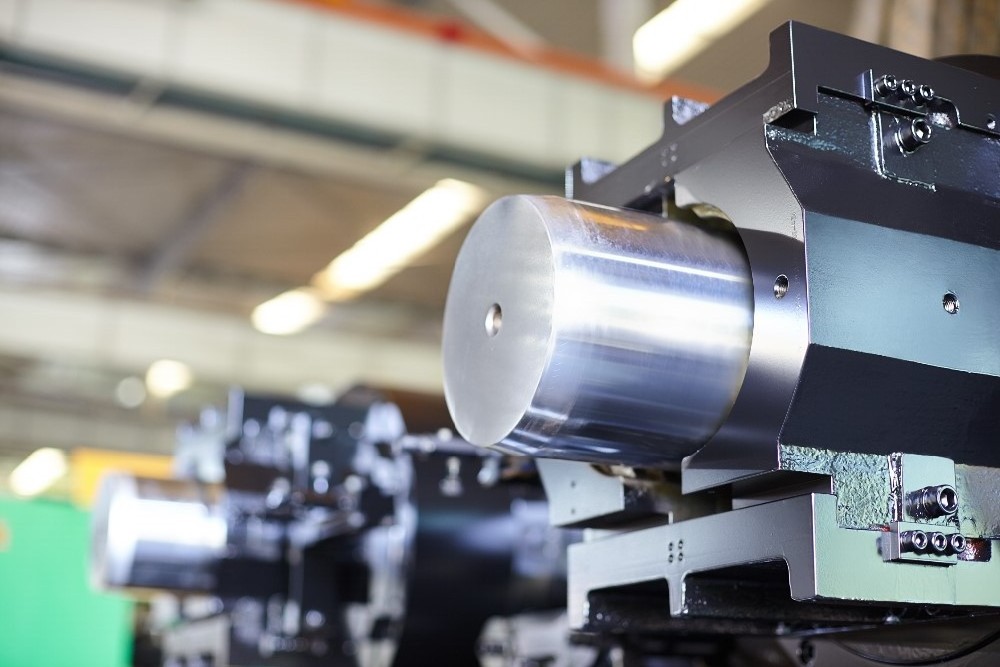

INNOVATED INJECTION STRUCTURE
Mold platen Drawing
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
710×240×210
|
|
|
Weight
|
1.9 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
710×240×210
|
|
|
Weight
|
1.9 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
