Quick Details
-
Brand Name:
-
Cansen
-
Model Number:
-
LW26-20 0-1 2P 4P
-
Max. Current:
-
20A/25A/32A/63A/125A/160A/315A
-
Product name:
-

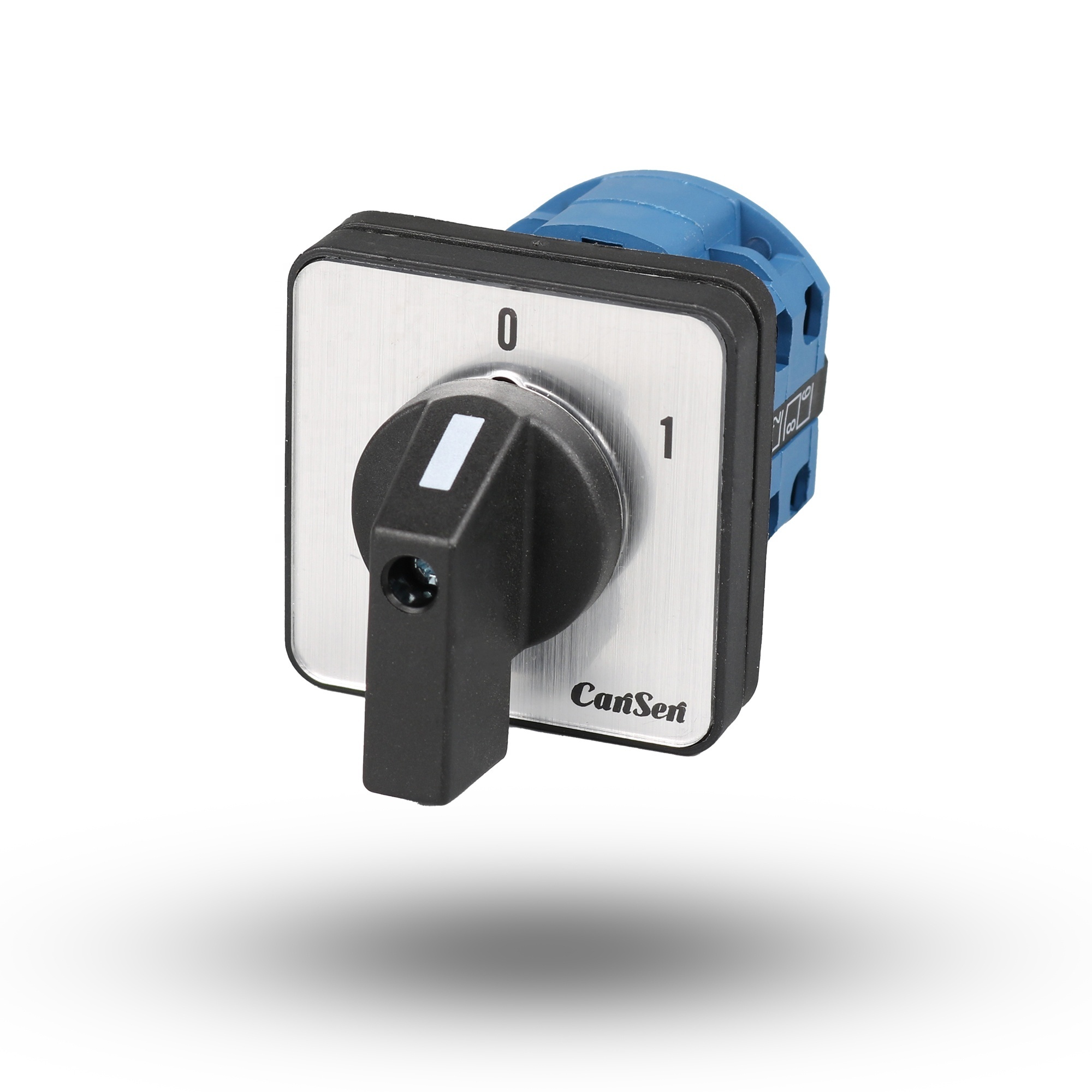

isolator switch 3 phase
-
Color:
-
blue
-
Circuit:
-
20A/25A/32A/63A/125A/160A/315A
-
No. of Switch Positions:
-
Four
-
Mounting type:
-
face plate mounting
-
Face plate size:
-
48x48mm
-
Certification:
-
CE TUV RoHS UL, CE, TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cansen
-
Model Number:
-
LW26-20 0-1 2P 4P
-
Max. Current:
-
20A/25A/32A/63A/125A/160A/315A
-
Product name:
-
isolator switch 3 phase
-
Color:
-
blue
-
Circuit:
-
20A/25A/32A/63A/125A/160A/315A
-
No. of Switch Positions:
-
Four
-
Mounting type:
-
face plate mounting
-
Face plate size:
-
48x48mm
-
Certification:
-
CE TUV RoHS UL, CE, TUV
| Specification | LW26-20 | |||
| LW26-20X | ||||
| LW26-20C | ||||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | / | / | 20 | 20 |
| AC-23A | / | / | 15 | 15 |
| AC-2 | / | / | 15 | 15 |
| AC-3 | / | / | 11 | 11 |
| AC-4 | / | / | 3.5 | 3.5 |
| AC-15 | / | / | 5 | 4 |
| DC-13 | 12 | 0.4 | 0.4 | / |
| Power | ||||
| AC-23A | / | / | 3.7/2.5 | 7.5/3.7 |
| AC-2 | / | / | 4 | 7.5 |
| AC-3 | / | / | 3/2.2 | 5.5/3 |
| AC-4 | / | / | 0.55/0.75 | 1.5/1.5 |
