Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALLSHENG
-
Model Number:
-
Nano-400A
-
Focal Length:
-
--
-
Wavelength Range:
-
260nm , 280nm
-
Material:
-
--
-
Product name:
-
uv-vis color matching spectrophotometer
-
Wavelength accuracy:
-
0.5nm
-
Spectral Resolution:
-
≤8nm
-
Absorbance Precision:
-
0.005Abs
-
PathLength:
-
0.5mm
-
Power:
-
--
-
Voltage:
-
24VDC
Quick Details
-
Warranty:
-
1 year
-
Size:
-
210x280x181mm
-
Weight:
-
3.5kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALLSHENG
-
Model Number:
-
Nano-400A
-
Focal Length:
-
--
-
Wavelength Range:
-
260nm , 280nm
-
Material:
-
--
-
Product name:
-
uv-vis color matching spectrophotometer
-
Wavelength accuracy:
-
0.5nm
-
Spectral Resolution:
-
≤8nm
-
Absorbance Precision:
-
0.005Abs
-
PathLength:
-
0.5mm
-
Power:
-
--
-
Voltage:
-
24VDC
If you need a discount distribution price, please contact us.

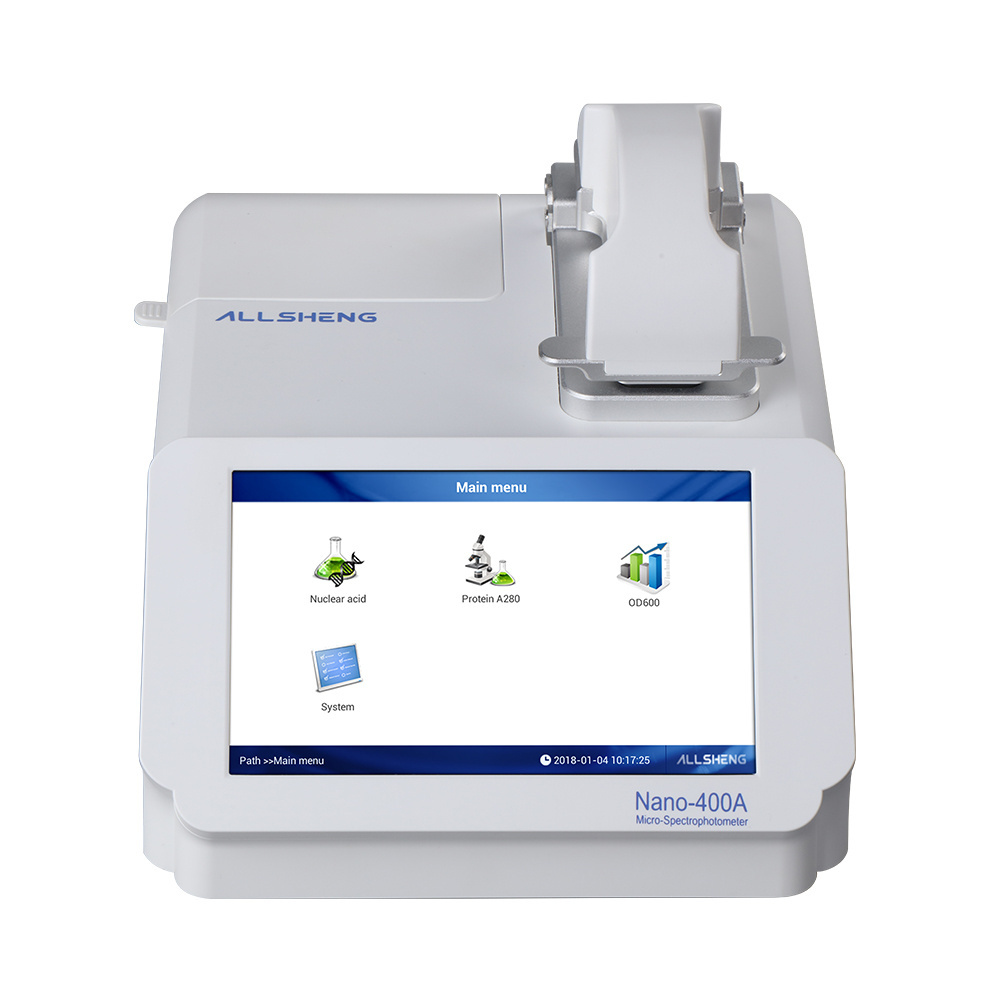

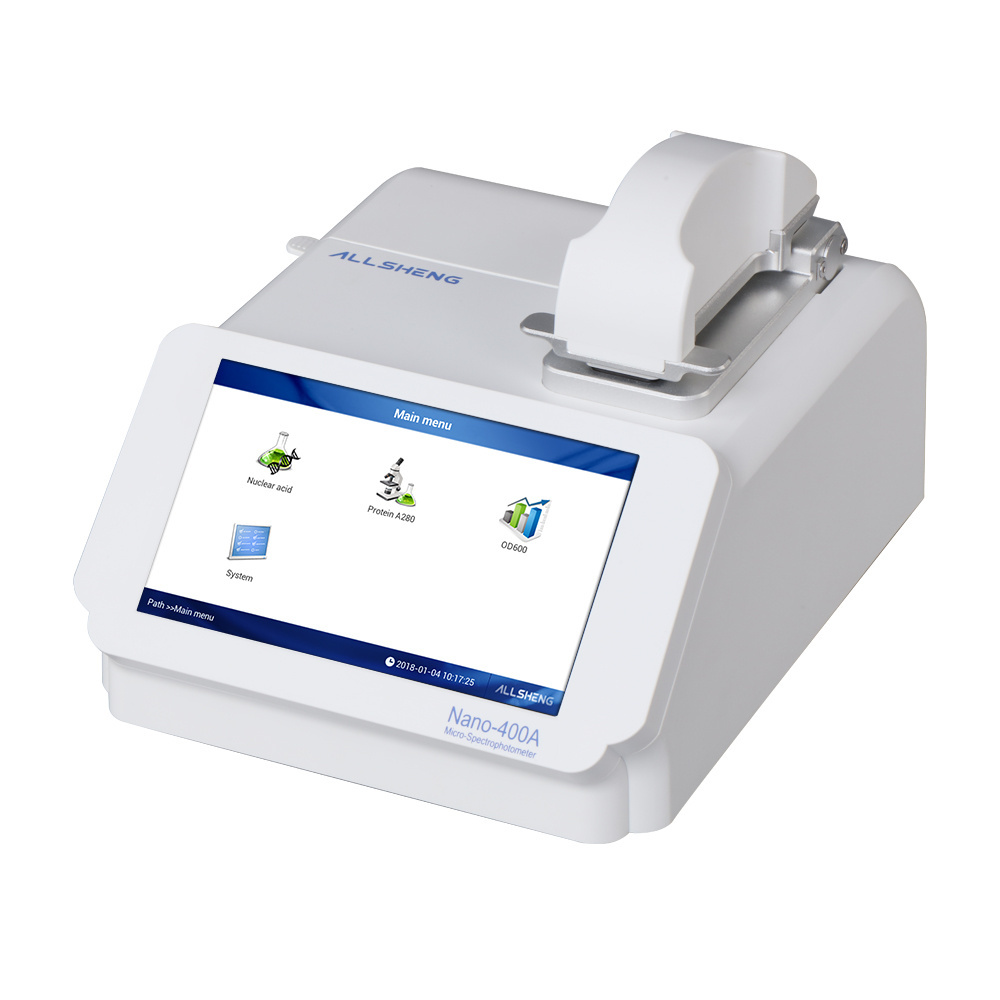

Micro-Spectrophotometer Nano-400A
Product Description
Code Description
AS-11050-00 Nano-400A Micro-Spectrophotometer DC24V 5W
AS-11050-00 Nano-400A Micro-Spectrophotometer DC24V 5W
Features
•Nano-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins
•Android system operation, 7 inch touch screen no computer, APP software, simple interface, easy to use
•LED light source long-life components
•To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
•Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280
•Measure purified protein concentration at 280 nm
•The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory
Technical Datas
|
Model
|
Nano-400A
|
|
|
Wavelength Range
|
260nm; 280nm
|
|
|
Minimum Sample Size
|
1~2.0u l
|
|
|
Path Length
|
0.5mm
|
|
|
Light Source
|
LED lamp
|
|
|
Detector Type
|
UV-sillion photocell
|
|
|
Wavelength Accuracy
|
-------
|
|
|
Spectral Resolution
|
≤3nm (FWHM at Hg 546nm)
|
|
|
Absorbance Precision
|
0.005Abs
|
|
|
Absorbance Accuracy
|
2% (7.332Abs at 260nm)
|
|
|
Absorbance Range
|
0.2 - 50A
|
|
|
Detects Nucleic Acid up to
|
10~2500ng/u l (dsDNA)
|
|
|
Measurement Time
|
<6s
|
|
|
Dimensions (W x D x H)mm
|
208x 280 x 186
|
|
|
Data Output
|
USB, SD-RAM Card
|
|
|
Weight
|
2kg
|
|
|
Sample Pedestal Material
|
Aluminum alloy and Quartz fiber
|
|
|
Operating Voltage
|
24VDC
|
|
|
Operating Power Consumption
|
25W
|
|
|
Standby Power Consumption
|
5W
|
|
|
Software Compatibility
|
Android System
|
|
|
OD600nm Measurement:
|
|
|
|
Light Source
|
LED
|
|
|
Wavelength Range
|
600±8nm
|
|
|
Abosorbance Range
|
0~4A
|
|
|
Code
|
Description
|
|
AS-11050-00
|
Nano-400A Micro-Spectrophotometer, DC24V 5W
|
|
AS-11021-01
|
Cuvette for Nano-400A
|
