Quick Details
-
Application:
-
SLURRY SEPARATION
-
Features:
-
EFFICIENT, COMPACT
-
Production Capacity:
-
100
-
Dimension(L*W*H):
-
4522*2192*290mm
-
Power:
-
58000
-
Voltage:
-
380V/440V
-
Weight (KG):
-
5800
-
Product name:
-

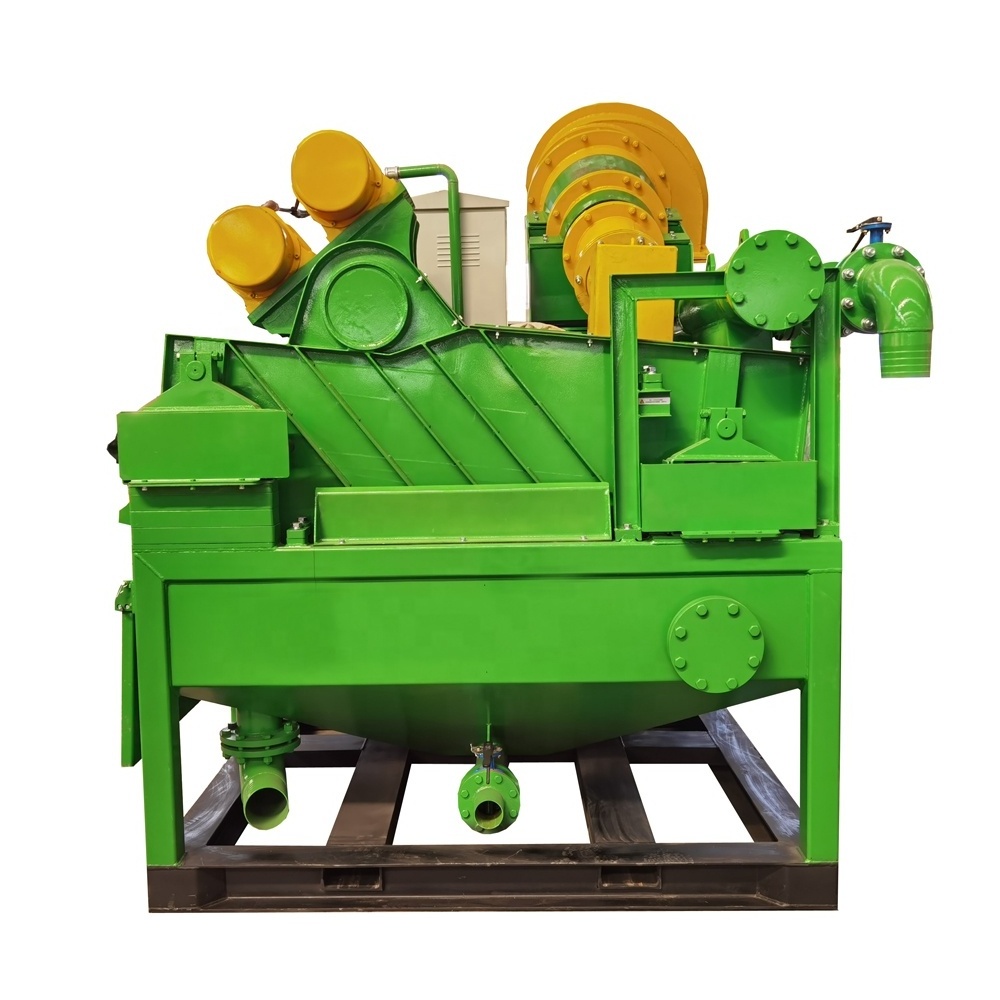

Mud Solid Control System
-
Product:
-
Desander
-
Sand out purification:
-
over 90%(-0.074mm grain size)
-
Vibration mode of screen:
-
straight-line
-
Content of screened slag:
-
less than 30%
-
Color:
-
as per customer's demand
-
Oscillating screen:
-
easy operation, low trouble
-
mud handling capacity:
-
high
-
Capacity:
-
250m3/h
Quick Details
-
Place of Origin:
-
Hunan, China, Hunan city,China
-
Brand Name:
-
FAE
-
Model Number:
-
FAD-250/60
-
Application:
-
SLURRY SEPARATION
-
Features:
-
EFFICIENT, COMPACT
-
Production Capacity:
-
100
-
Dimension(L*W*H):
-
4522*2192*290mm
-
Power:
-
58000
-
Voltage:
-
380V/440V
-
Weight (KG):
-
5800
-
Product name:
-
Mud Solid Control System
-
Product:
-
Desander
-
Sand out purification:
-
over 90%(-0.074mm grain size)
-
Vibration mode of screen:
-
straight-line
-
Content of screened slag:
-
less than 30%
-
Color:
-
as per customer's demand
-
Oscillating screen:
-
easy operation, low trouble
-
mud handling capacity:
-
high
-
Capacity:
-
250m3/h
| Model | Max Capacity |
Sieving
Capacity |
Max Moisture
Content |
Mud Max. SG | Power |
Separated
Particle Size |
Inlet Size | Outlet Size | Weight | Dimensions |
| FAD-20/30 | 20 | 5-10 | <30% | <1.4 | 9 | 30 | DN65(2.5") | DN100(4") | 2 | 2055*1730*2240 |
| FAD-50/30 | 50 | 5-15 | 12.5 | 60 | 2.2 | |||||
| FAD-100/60 | 100 | 20-50 | 24 | DN100(4") | DN150(6") | 3 | 2862*1676*2433 | |||
| FAD-150/60 | 150 | 32 | 3 | |||||||
| FAD-200/60 | 200 | 25-80 | 48 | DN150(6") | DN250(10") | 5.5 | 4522*2192*2903 | |||
| FAD-200/60 | 3161*2576*2903 | |||||||||
| FAD-250/60 | 260 | 58 | 5.8 | 4522*2192*2903 | ||||||
| FAD-250/60 | 3161*2576*2903 | |||||||||
| FAD-400/60 | 400 | 75-240 | 100 | DN300(12") | 2XDN250(10") | 20.2 | 10705*4144*6536 | |||
| FAD-500/60 | 500 | 120 | 20.8 |
