Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
580*380*880mm
-
Weight:
-
100 KG
-
Product name:
-
Vibrating Screen Separator
-
Model:
-
XSZ-200
-
Function:
-
Screening\separation\sorting\sieving\sieving
-
Usage:
-
Separation Screening
-
Quality:
-
Excellent
-
Feature:
-
Simple Operation
-
Installation:
-
Engineer Guide
-
Power:
-
0.37Kw
-
Color:
-
Customers' Request
-
After sale service:
-
Technical Support
Quick Details
-
Type:
-
Vibrating Sieve Shaker
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
WKD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
580*380*880mm
-
Weight:
-
100 KG
-
Product name:
-
Vibrating Screen Separator
-
Model:
-
XSZ-200
-
Function:
-
Screening\separation\sorting\sieving\sieving
-
Usage:
-
Separation Screening
-
Quality:
-
Excellent
-
Feature:
-
Simple Operation
-
Installation:
-
Engineer Guide
-
Power:
-
0.37Kw
-
Color:
-
Customers' Request
-
After sale service:
-
Technical Support
Product Overview
Laboratory Sieve Shaker
The Vibrating Sieve Shaker is applicable to tests in areas such as geology, metallurgy, chemical industry, coal, national defense, scientific research, grinding wheel, cement and construction as well as to the sieving and analysis of materials in labs.
Working Principle and Structure
Lab top vibrating sieve shaker electric motor driving the eccentric shafts, which give the sieve set a circular swing movement; at the same time, the electric motor drive eccentric cam and push rod, which will make sieve set an upward and downward movement, so as to achieve a swing and vibration result, and screening the materials effectively.
FEATURES AT A GLANCE
1. Unique structure, good swing and vibrating force
2. Auto stop setting, compact design, easy operating
3. Automatic control vibrating sieving time.
4. Digital time display
2. Auto stop setting, compact design, easy operating
3. Automatic control vibrating sieving time.
4. Digital time display
PRODUCT SPECIFICATIONS
|
Laboratory Top-Vibrating Sieve Shaker
|
|
|
|
|
|
|||||
|
Model
|
Sieve diameter
(mm)
|
Shaking times
(t/min)
|
Timing scope
(min)
|
Vibrating times
(t/min)
|
Back radius
(mm)
|
|||||
|
XSZ-200
|
220
|
221
|
0-60
|
147
|
12.5
|
|||||
|
|
Vertical swing distance
(mm)
|
Voltage
(v)
|
Power
(kw)
|
Weight (kg)
|
Dimension
mm
|
|||||
|
|
5
|
380
|
0.37
|
100
|
580*380*880
|
|||||
|
Laboratory Vibrating Sieve Shaker
|
|
|
|
|
||||
|
Model
|
Diameter(cm)
|
Shaking times(t/min)
|
Hammering times(t/min)
|
Panting distance(mm)
|
||||
|
XSBP-A
|
20
|
290
|
156
|
30±6
|
||||
|
|
Power
(kw)
|
Voltage
(v)
|
Dimension
(mm)
|
Weight (kg)
|
||||
|
|
0.37
|
380
|
933*430*785
|
200
|
||||

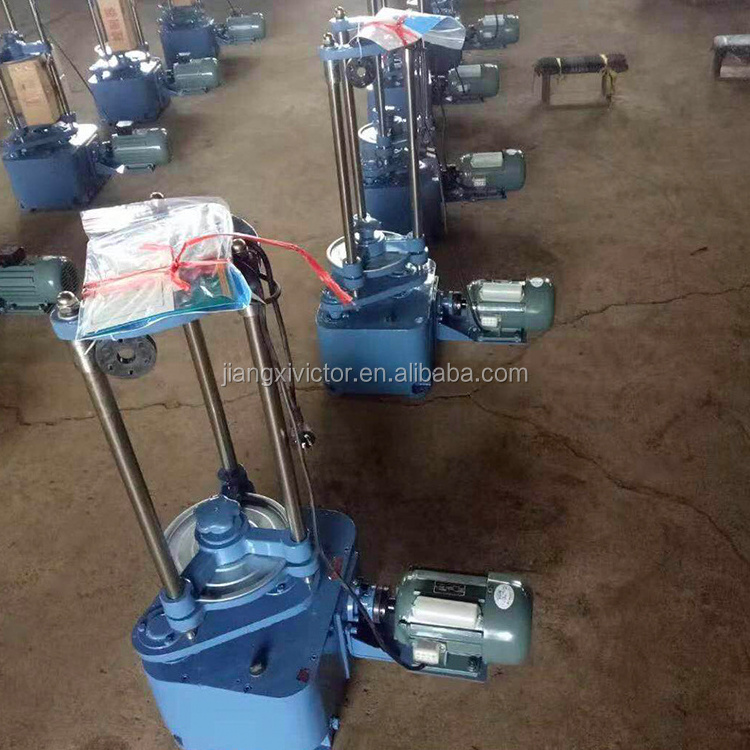

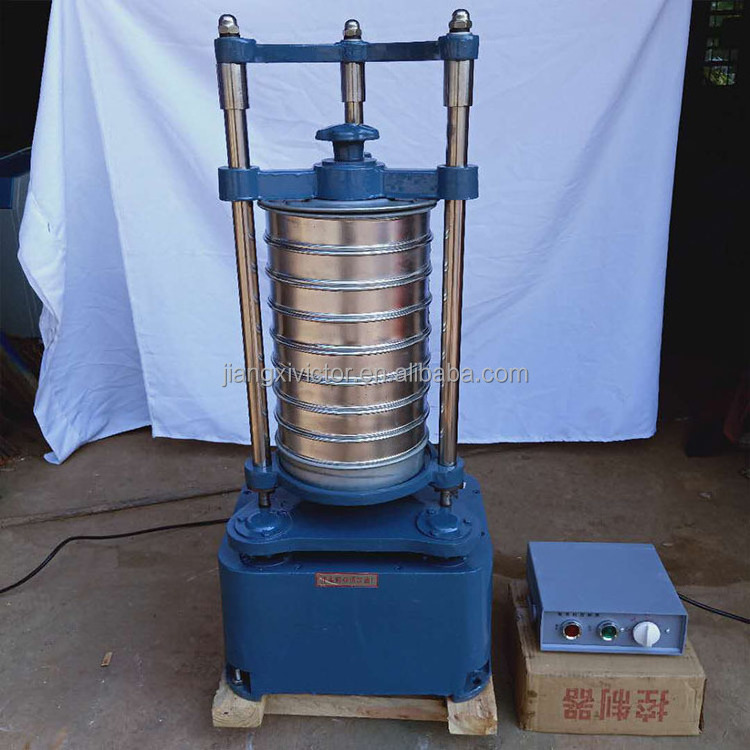

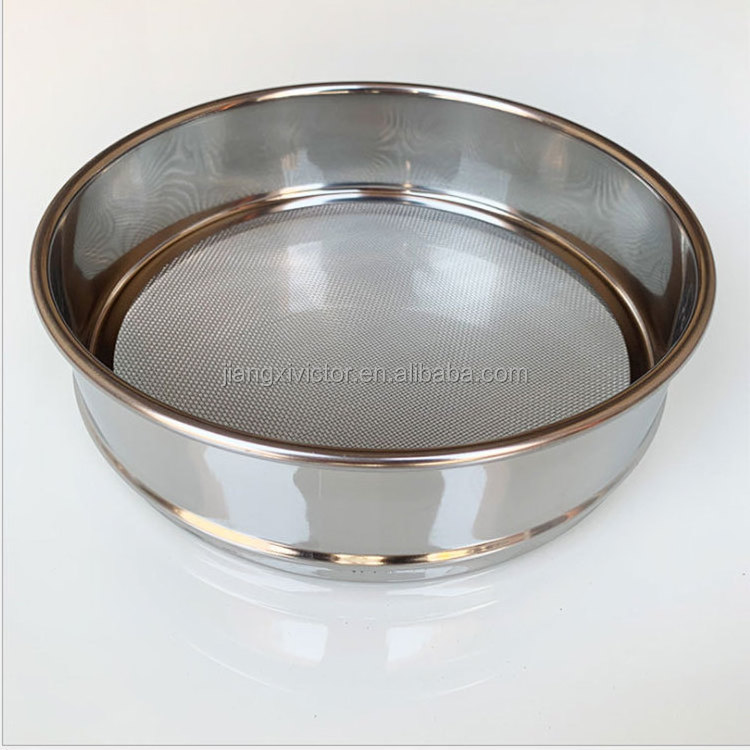

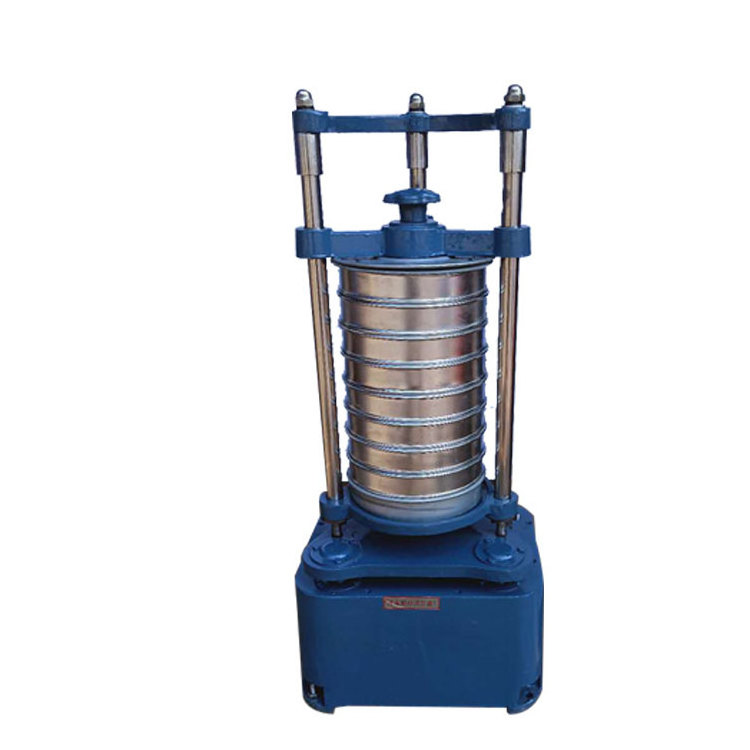

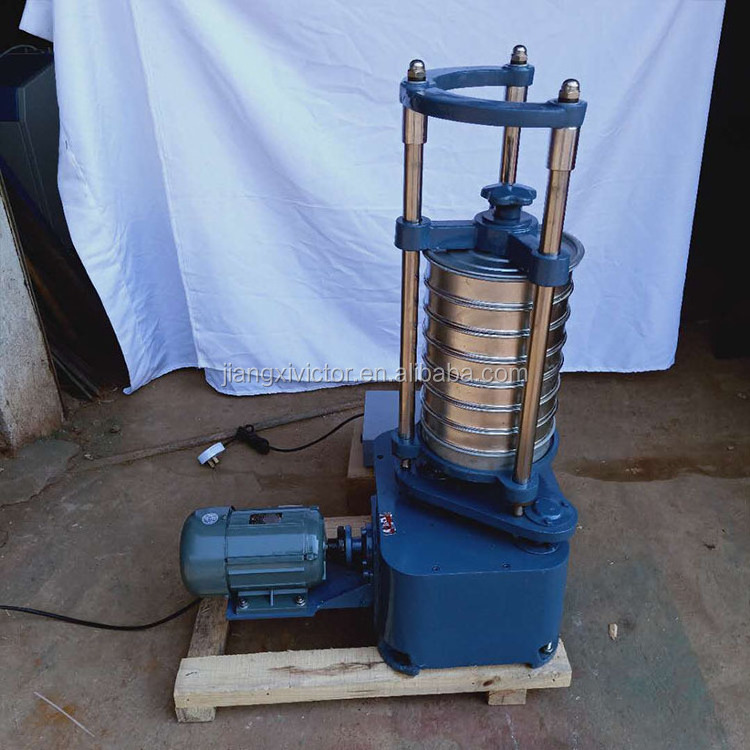

Details Images
