Quick Details
-
Brand Name:
-
Bingo Sensor
-
Model Number:
-
WFS-P02-Q07
-
Media Type:
-
Liquid
-
Operating Temperature:
-
-10~+80℃
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/250VAC
-
Max Switch Current:
-
0.5A
-
Electrical Life:
-
1x10^7 (5Vdc, 10mA)
-
Start-up Volume:
-
0.15L/min
-
Operate Volume:
-
4.5L/min
-
withstand hydraulic Pressure:
-
0.8Mpa
-
Flow range:
-
0.15-4.5 L/min
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bingo Sensor
-
Model Number:
-
WFS-P02-Q07
-
Media Type:
-
Liquid
-
Operating Temperature:
-
-10~+80℃
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/250VAC
-
Max Switch Current:
-
0.5A
-
Electrical Life:
-
1x10^7 (5Vdc, 10mA)
-
Start-up Volume:
-
0.15L/min
-
Operate Volume:
-
4.5L/min
-
withstand hydraulic Pressure:
-
0.8Mpa
-
Flow range:
-
0.15-4.5 L/min
Product Description

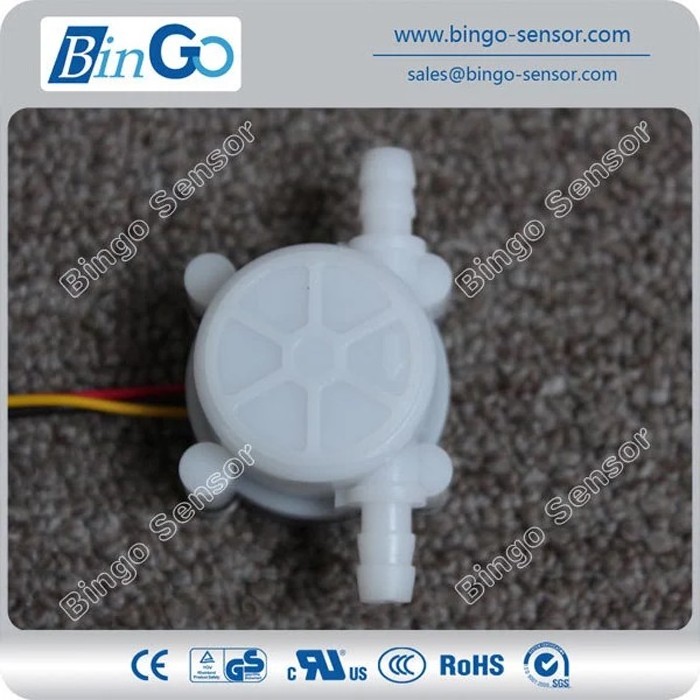

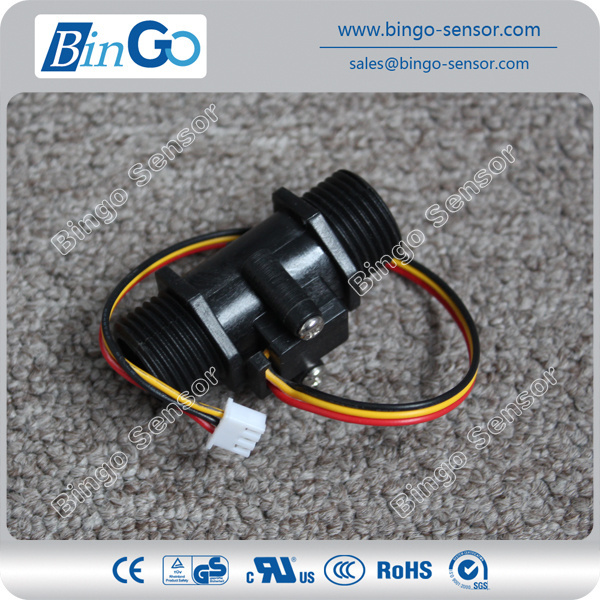

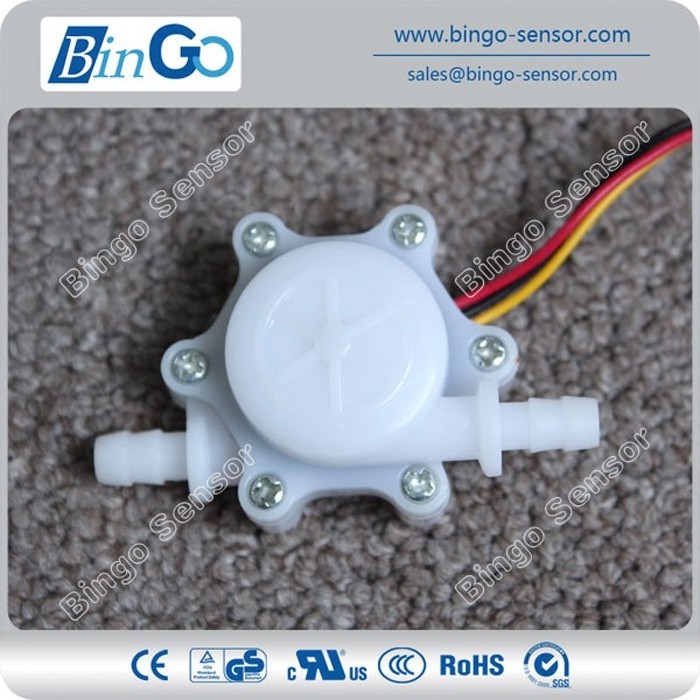

Product photos
Parameters
|
Max.fluid pressure
|
0.8Mpa
|
|
Material
|
POM(food grade)
|
|
Medium
|
Drinking water, ≤60℃
|
|
Flow rate
|
0.15-1.5, 0.2-2.5, 0.3-3.5, 0.3-4.5(L/min)
|
|
Connection
|
7mm
|
|
Electrical rate
|
DC4.5-18V(Rated DC5V, ≤10mA); customized
|
|
Insulation resistance
|
>100MΩ
|
|
Output signal
|
Rated DC5V, high level≥4.3V,low level ≤0.5V
|
|
Flow rate pulse character
|
F=76*Q(L/min), ±5%; F=48*Q(L/min), ±5%
F=26*Q(L/min), ±8%; F=14*Q(L/min), ±5%
|
