Quick Details
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS152100T
-
Max. Current:
-
1.0 (mA)
-
Certificate:
-
RoHS
-
Switch State:
-
Normal Open
-
Type:
-
SMD
-
Description:
-
Ball Contact
-

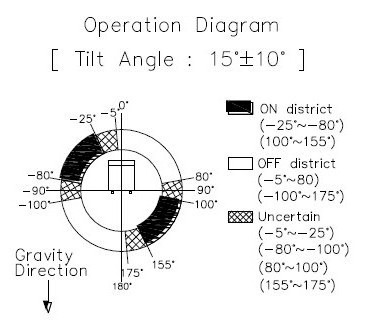

Tilt Angle:
-
Degree 15 +-10
-
Certification:
-
RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
5V
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS152100T
-
Max. Current:
-
1.0 (mA)
-
Certificate:
-
RoHS
-
Switch State:
-
Normal Open
-
Type:
-
SMD
-
Description:
-
Ball Contact
-
Tilt Angle:
-
Degree 15 +-10
-
Certification:
-
RoHS
Product Description
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5
|
--
|
|
Contact Rating
|
10 mA, 5VDC
|
|
Contact Resistance
|
10Ω max.
|
|
Insulation Resistance
|
10 MΩ min. at 100VDC
|
|
Dielectric Strength
|
500VDC min. for 1 minute
|
|
Capacitance
|
5pF max.
|
|
Conductive Rate
|
90% min.
|
|
IR Reflow
|
Peak temp.=255 to 260℃
|
|
Operating Temperature
|
-25°C to 85°C
|
|
Storage Temperature
|
-40°C to 85°C
|
|
Humidity
|
40°C / 95% RH
|
|
Mechanical Life
|
2 Hz, horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|

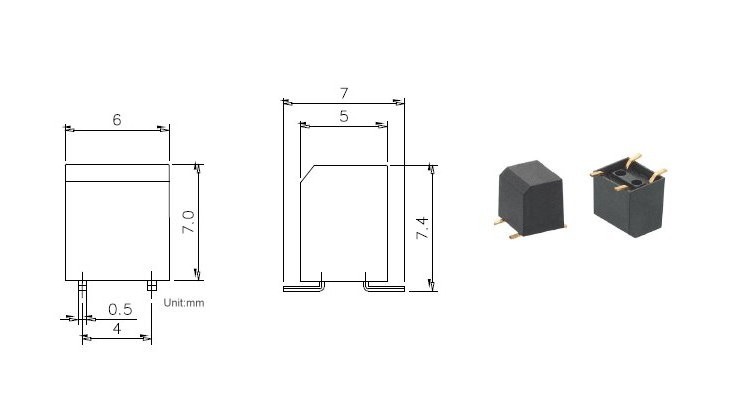

Dimension & Packing
|
Package
|
Quantity
|
Total
|
Dimension(mm)
|
|
Tape & Reel
|
700 pcs
|
700 pcs
|
φ330*17H
|
|
Inner Box
|
2 Reels
|
1,400 pcs
|
355L*340W*68H
|
|
Carton
|
10 boxes
|
14,000 pcs
|
703L*364W*380H
|
Patent
Taiwan
U.S.A
China
