Quick Details
-
Graphic Format Supported:
-
BMP, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Dimension(L*W*H):
-
64*26*10cm
-
Weight (KG):
-
7 KG
-
Product name:
-
4040 CNC Laser Engraving Machine
-
Laser power:
-
5.5w/10w
-
Laser tube:
-
Diode laser
-
Power supply:
-
12V 5A
-
Software support:
-
LaserGRBL/Laser Engraver
-
Working area:
-
400mm*400mm
-
Keywords:
-
Wood Laser Engraving Machine
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Cutting Speed:
-
adjustable
-
Support system:
-
win7/8/10
Quick Details
-
Engraving Area:
-
400mm*400mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
adjustable
-
Graphic Format Supported:
-
BMP, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Dimension(L*W*H):
-
64*26*10cm
-
Weight (KG):
-
7 KG
-
Product name:
-
4040 CNC Laser Engraving Machine
-
Laser power:
-
5.5w/10w
-
Laser tube:
-
Diode laser
-
Power supply:
-
12V 5A
-
Software support:
-
LaserGRBL/Laser Engraver
-
Working area:
-
400mm*400mm
-
Keywords:
-
Wood Laser Engraving Machine
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Cutting Speed:
-
adjustable
-
Support system:
-
win7/8/10

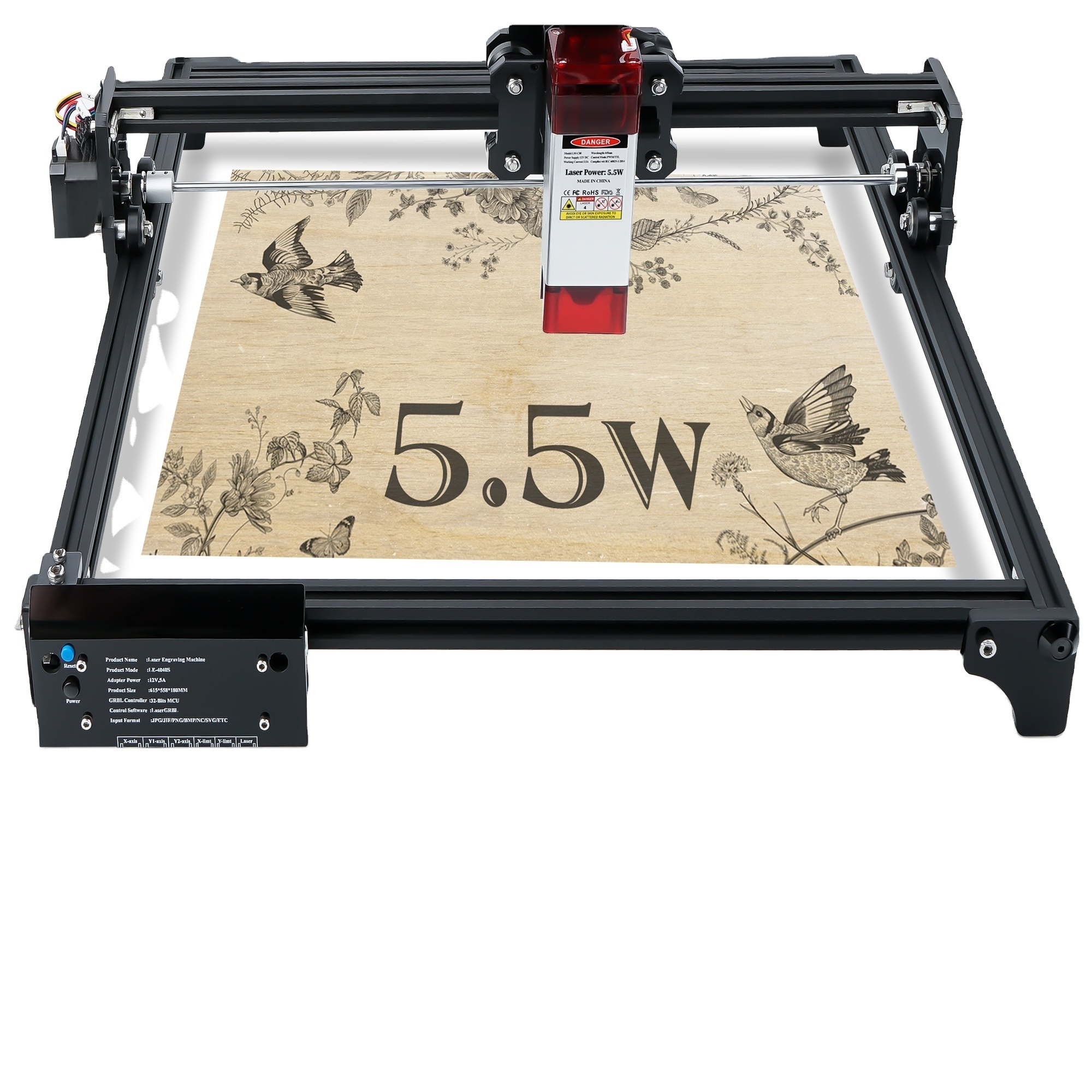

Product Pictures
Parameters
|

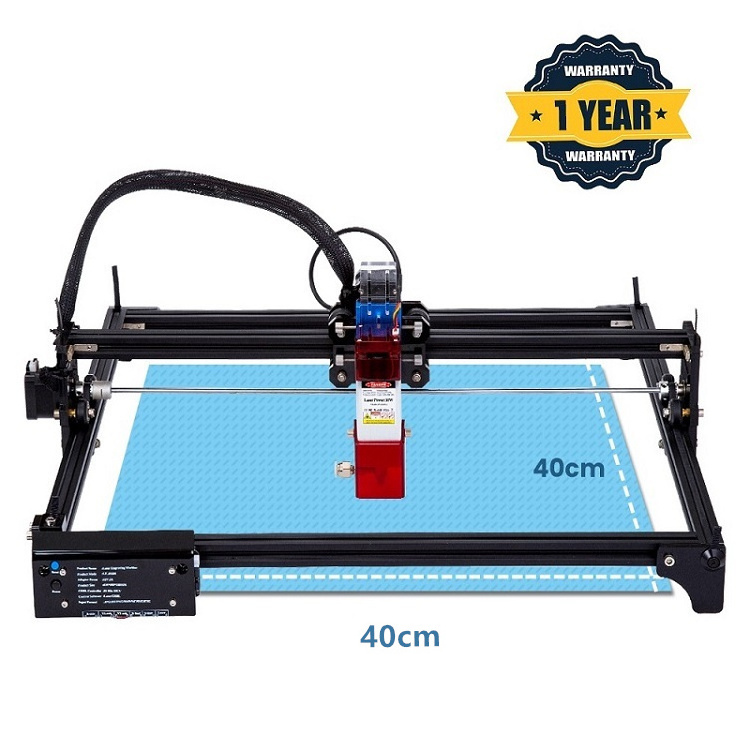

Carving Area
|
X: 400MM x Y: 400MM
|
|
Motherboard
|
32 bits motherboard with 32 Bits MCU
|
|
Firmware
|
GRBL1.1
|
|
Power Supply
|
12V 5A 60W
|
|
USB Interface
|
Type C
|
|
Electrical Power
|
40w/80W
|
|
Actual Power
|
5.5w/10W
|
|
Wavelength
|
450nm
|
|
OS of Upper Computer
|
Windows ( Working with LaserGRBL/Laser Engraving3.0 ), MAC OS and Linux /Phone(Bring yourown software)
|
Product Details
【Laser: 80w】
* Optical power output:9.5W~11W
* Current:3.8A
* Laser tube:2xLD+FAC+C-Lens
* Laser wavelength:445nm±5nm
* Beam shape:Dot ( Fixed Focus )
* Operating voltage:DC 12V
* Focus:0.08*0.08
* PWM/TTL input:0-5V
* Input interface:XH2.54-3Pin (+,-, PWM/TTL)
* TTL output power:> 1K HZ output power = continuous power x 40%
* Working frequency:<30KHz
* Laser class:Class IV
* Safe temperature range:15 ℃ ~40 ℃
* Life time:15000~20000 hours
* Anti-static: Up to 25kV static electricity can be eliminated
* Shell: Frosted material, good heat dissipation
* Magnetic blower protective shell:Constitutes an air duct, has good heat dissipation, and protects eyes and lasers
* Optical power output:9.5W~11W
* Current:3.8A
* Laser tube:2xLD+FAC+C-Lens
* Laser wavelength:445nm±5nm
* Beam shape:Dot ( Fixed Focus )
* Operating voltage:DC 12V
* Focus:0.08*0.08
* PWM/TTL input:0-5V
* Input interface:XH2.54-3Pin (+,-, PWM/TTL)
* TTL output power:> 1K HZ output power = continuous power x 40%
* Working frequency:<30KHz
* Laser class:Class IV
* Safe temperature range:15 ℃ ~40 ℃
* Life time:15000~20000 hours
* Anti-static: Up to 25kV static electricity can be eliminated
* Shell: Frosted material, good heat dissipation
* Magnetic blower protective shell:Constitutes an air duct, has good heat dissipation, and protects eyes and lasers
【Motherboard with 32Bits MCU】
* It could preprocess 32 instructions, support baud rate as high as 921600,, more powerful!
* GRBL 1.1 laser master firmware, smarter, faster, higher precision and easier to use.
* Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper ,that the 8bits high power laser engravers could not do.
* If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S
* It could preprocess 32 instructions, support baud rate as high as 921600,, more powerful!
* GRBL 1.1 laser master firmware, smarter, faster, higher precision and easier to use.
* Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper ,that the 8bits high power laser engravers could not do.
* If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S
Packaging & Delivery
X-axis pre-installed, easy to use
Customized carton and foam protect
Product Effects
Your satisfaction is our relentless pursuit，start your DIY engraving adventure！
