Quick Details
-
Positioning:
-
CCD Camera
-
Control panel:
-
High definition touch screen
-
Software:
-
Signmaster/CDR/Easy cut/Flex etc.
-
Optional accessories:
-
WIFI/laser/Diamond Blade
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Cutting Precision:
-
+/- 0.01mm
-
Color options:
-
Red,white
Quick Details
-
Paper Feed Width:
-
720mm
-
Cutting Width:
-
550mm
-
Place of Origin:
-
Guangdong, China
-
Positioning:
-
CCD Camera
-
Control panel:
-
High definition touch screen
-
Software:
-
Signmaster/CDR/Easy cut/Flex etc.
-
Optional accessories:
-
WIFI/laser/Diamond Blade
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Cutting Precision:
-
+/- 0.01mm
-
Color options:
-
Red,white
Product Description
|
parameter
|
|
|
|
|||
|
Model
|
MM-VAD24
|
MM-VAD48
|
MM-VAD60
|
|||
|
Max cutting width
|
550mm
|
1180mm
|
1420mm
|
|||
|
Cutting head
|
Dual
|
Dual
|
Dual
|
|||
|
Camera/Scanner
|
Support
|
|
|
|||
|
Auto Contour cutting
|
Fast, automatically and high precision contour cut by using the camera.
|
|
|
|||
|
Operation
|
4.3" TFT LCD Large touch screen
|
|
|
|||
|
Interface
|
HD large screen full-color APP information function display
|
|
|
|||
|
Connector
|
USB cable, USB flash drive
|
|
|
|||
|
Contour cutting&calibration
|
Easy use and high precision calibrate
|
|
|
|||
|
Mainboard
|
32bit ARM Cortex M4 MCU,8M memory. Support remote and one key update.
|
|
|
|||
|
Location mode
|
Bound system. set origin freely
|
|
|
|||
|
Driver
|
Digital DC stepper motor,microstep driving
|
|
|
|||
|
Command
|
HP-GL, DMPL
|
|
|
|||
|
Max moving speed
|
960mm/s
|
|
|
|||
|
Max cutting speed
|
750mm/s
|
|
|
|||
|
Max cutting thickness
|
2mm
|
|
|
|||
|
Force
|
Dual head:50g~2000g ( 160 setting adjustable )(independent setting of each head)
|
|
|
|||
|
Cutting precision
|
< 0.01mm
|
|
|
|||
|
Repeat precision
|
0.082mm
|
|
|
|||
|
Power supply
|
AC100~240V/50Hz~60Hz
|
|
|
|||
|
AC100~240V/50Hz~60Hz
|
+5℃~ +45℃,relative humidity 30%~70%
|
|
|
|||
|
Color
|
White/black/red(optional)
|
|
|
|||
|
Bracket
|
YES
|
|
|
|||
|
Size
|
1000*375*370mm
|
1600*375*370mm
|
1920*360*388mm
|
|||
|
Gross Weight
|
16.8kg
|
25.5kg
|
42kg
|
|||
|
Operation system
|
Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10
|
|
|
|||
|
|
MAC OSX10.2.8 or above
|
|
|
|||
Detailed Images
Exquisite appearance
Built-in CCD camera

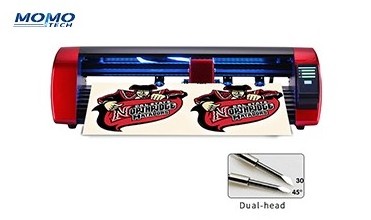

Double head, one carving head, one creasing head
Sensitive touch screen
Cutting Samples
Production
Packing & Delivery
Certifications
Our Service
