Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Julong
-
Dimension(L*W*H):
-
920*670*220mm
-
Weight (KG):
-
28 KG
-
Core Components:
-
LASER TUBE
-
Laser type:
-
Hermetic CO2 glass tube
-
Locating precision:
-
0.01mm
-
Compatible Software:
-
CorelDraw
-
Position system:
-
Red dot
-
Interface:
-
USB
-
Working voltage:
-
AC 110 - 220V±10%, 50 - 60Hz
-
Operating temperature:
-
5-35℃
-
Operating humidity:
-
5-95%
-
Worktable:
-
Honey Comb,table
-
Cutting thickness:
-
0-5mm(According to material)
Quick Details
-
Engraving Area:
-
400*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Julong
-
Dimension(L*W*H):
-
920*670*220mm
-
Weight (KG):
-
28 KG
-
Core Components:
-
LASER TUBE
-
Laser type:
-
Hermetic CO2 glass tube
-
Locating precision:
-
0.01mm
-
Compatible Software:
-
CorelDraw
-
Position system:
-
Red dot
-
Interface:
-
USB
-
Working voltage:
-
AC 110 - 220V±10%, 50 - 60Hz
-
Operating temperature:
-
5-35℃
-
Operating humidity:
-
5-95%
-
Worktable:
-
Honey Comb,table
-
Cutting thickness:
-
0-5mm(According to material)
Machine Paramenters
|
Laser Power
|
|
50W
|
|
||
|
Colour
|
|
Grey and white
|
|
||
|
Model
|
|
JL-K4040
|
|
||
|
Supply Voltage
|
|
110/220V±10% ,50/60Hz
|
|
||
|
Max width
|
|
400*400mm
|
|
||
|
Working table
|
|
honeycomb,platform
|
|
||
|
Laser Output
|
|
1-100% setting
|
|
||
|
Table control mode
|
|
Manual/Electric
|
|
||
|
engraving Speed
|
|
500mm/s
|
|
||
|
Locating Precision
|
|
<0.01mm
|
|
||
|
Data transfer Interface
|
|
USB
|
|
||
|
System Environment
|
|
WINDOWS XP/Win7/8
|
|
||
|
Support software
|
|
Laser DRW/Core DRAW
|
|
||
|
Cooling Way
|
|
Water Cooling
|
|
||
|
Operating temperature
|
|
5°C -35°C
|
|
||
Product Description
Applicable materials:
Paper, ABS plastic, cloth, wood products, leather, crystal, agate and jade, rubber, acrylic, two-color board, PVC materials, plexiglass, jade, bamboo products and other non-metallic materials.
Applicable industry:
Mainly used for carving and cutting small craft gifts.
Such as: sculpture portrait, badge, badge, all kinds of craft gift packaging carving processing.
Crystal agate carving, paper cutting technology, advertising decoration, mold processing carving, plastic products carving, packaging printing, bamboo products carving, paper products, cloth cutting, leather carving, cutting model and other non-metal industries.

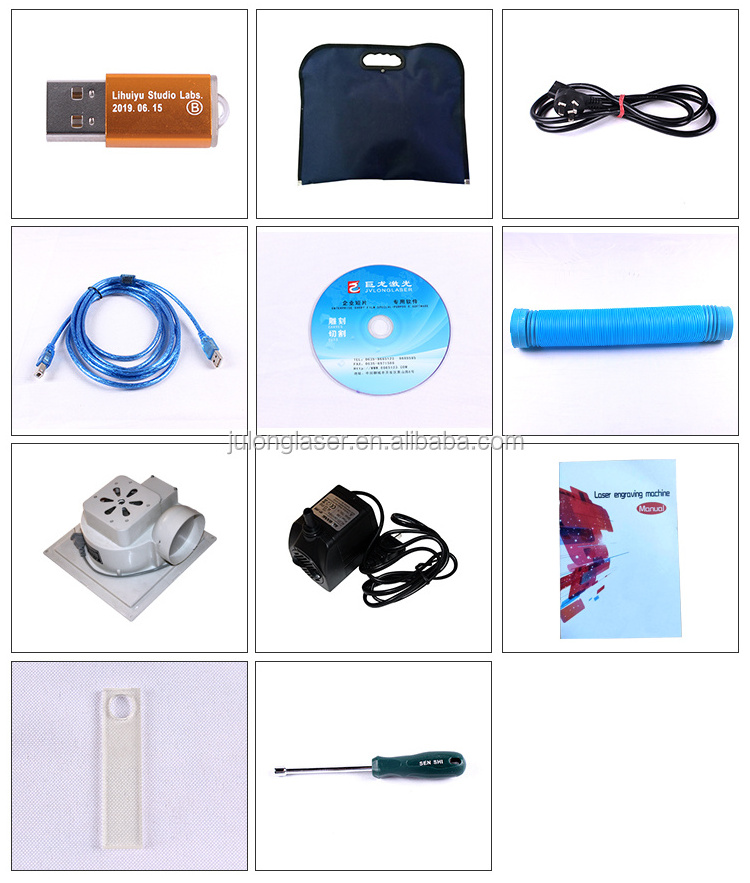

Fittings
Product sample
Wood
Acrylic
Glass
Leather
Paper
Silicone
Rubber stamp
Certifications
our company
FAQ
1. What's your after-sales service?
♦
24/7 support by chat online.
♦ 24/7 support by phone.
♦ Lifelong and free technical support.
♦ We are responsible for troubleshooting.
2. What's your Payment Terms Supported?
♦
By 100% T/T in advance.
♦ By 30% T/T in advance, 70% balance paid before shipment.
♦ By Alibaba Trade Assurance, PayPal, Western Union, L/C
3. What's your date of delivery?
♦
For standard machines, it would be 7-10 days;
♦
For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
4.
Are you a factory or trading company?
♦
We are the manufacturer and we have 17 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts
easier. so welcome to visit to our factory.
5. What's your packaging?
♦ Exported wooden case or according to your requirements.
♦ Exported wooden case or according to your requirements.
6. What watt is suitable for me?
♦ If you are not sure, please tell me what the machine will be used to do? Then I can suggest a suitable and right watt to you.
♦ If you are not sure, please tell me what the machine will be used to do? Then I can suggest a suitable and right watt to you.
7. How much is shipping cost?
♦ If you prefer sea transport, please tell me which port you want the machine is shipped to?
♦ If you prefer air transport, please tell me your detailed address.
♦ If you prefer sea transport, please tell me which port you want the machine is shipped to?
♦ If you prefer air transport, please tell me your detailed address.
