Quick Details
-
Installation:
-
External
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-T10-DC3
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
Contact+Contactless PBOC3.0 L1, Contact EMV L1, Contactless EMV L1
-
Standard:
-
ISO14443+ISO/IEC 7816+ISO 7811
-
Cards Support:
-
NFC+MSR+IC Card
-
Number of Slots:
-
2*PSAM Slot (2*PSAM to Option)
-
Supply Current:
-
Max. 50 mA
-
Dimension(Main Board):
-
82.5mm (L) x 50.2mm (W) x 13.7mm (H)
-
OS Support:
-
Windows XP/7/8/10, Linux
-
Applicationent:
-
Healthcare /e-Government/e-Banking/Transportation/Network security
Quick Details
-
Type:
-
Other Type
-
Interface:
-
usb
-
Card Slots:
-
Single
-
Installation:
-
External
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-T10-DC3
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
Contact+Contactless PBOC3.0 L1, Contact EMV L1, Contactless EMV L1
-
Standard:
-
ISO14443+ISO/IEC 7816+ISO 7811
-
Cards Support:
-
NFC+MSR+IC Card
-
Number of Slots:
-
2*PSAM Slot (2*PSAM to Option)
-
Supply Current:
-
Max. 50 mA
-
Dimension(Main Board):
-
82.5mm (L) x 50.2mm (W) x 13.7mm (H)
-
OS Support:
-
Windows XP/7/8/10, Linux
-
Applicationent:
-
Healthcare /e-Government/e-Banking/Transportation/Network security
Product Paramenters
13.56 MHZ RFID USB Track 1/2/3 Magnetic Smart Card Reader Module HCC-T10-DC3
Introduction
1. HCC-T10-DC is a 3-in-1 reader / writer module, including contact smart cards, contactless cards and magnetic stripe cards. The
HCC-T10-DC comes with a detachable antenna, contact smart card connector, magnetic head and 4 SAM sockets.
2. The reader module is designed for fast and easy integration into embedded systems, such as vending machine, secure access control, ATM, kiosks, gaming machines, scanner and POS terminal.
1. HCC-T10-DC is a 3-in-1 reader / writer module, including contact smart cards, contactless cards and magnetic stripe cards. The
HCC-T10-DC comes with a detachable antenna, contact smart card connector, magnetic head and 4 SAM sockets.
2. The reader module is designed for fast and easy integration into embedded systems, such as vending machine, secure access control, ATM, kiosks, gaming machines, scanner and POS terminal.
Features
1. USB 2.0 full speed
1. USB 2.0 full speed
a. HID compliance
b. Firmware upgradable
2. RS232 interface
3. 4 LED indicators
4. Support buzzer
5. Contact smart card interface
b. Firmware upgradable
2. RS232 interface
3. 4 LED indicators
4. Support buzzer
5. Contact smart card interface
a. ISO7816 T=0 CPU card
b. ISO7816 T=1 CPU card
6. Contactless smart card interface
b. ISO7816 T=1 CPU card
6. Contactless smart card interface
a. Compliant with ISO14443 part 1-4, Type A, Type B
b. Read/write MIFAREClassics
7. 4 SAM card sockets
8. Magnetic Stripe Reader
b. Read/write MIFAREClassics
7. 4 SAM card sockets
8. Magnetic Stripe Reader
a. Support 1/2/3 tracks reading
b. Bi-directional
9. OS support:
b. Bi-directional
9. OS support:
a. Windows XP/7/8/10
b. Linux
Application
1. e-Healthcare
2. e-Government
3. e-Banking and e-Payment
4. Transportation
5. Network security
b. Linux
Application
1. e-Healthcare
2. e-Government
3. e-Banking and e-Payment
4. Transportation
5. Network security
|
Dimensions
|
Main Board
|
82.5mm (L) x 50.2mm (W) x 13.7mm (H)
|
|
|
|
Antenna Board
|
82.5mm (L) x 50.2mm (W) x 9.2mm (H)
|
|
|
|
LED Board
|
70mm (L) x 16mm (W) x 8.5mm (H)
|
|
|
|
Contact Board
|
70mm (L) x 16mm (W) x 9.1mm (H)
|
|
|
|
MSR Board
|
90.3mm (L) x 21.1mm (W) x 24mm (H)
|
|
|
|
Main Board
|
28g
|
|
|
|
Antenna Board
|
14.8g
|
|
|
|
LED Board
|
4.6g
|
|
|
|
Contact Board
|
22.8g
|
|
|
|
MSR Board
|
19.6g
|
|
|
Power
|
Power Source
|
USB
|
|
|
|
Supply Voltage
|
5 V DC
|
|
|
|
Supply Current
|
Max.500mA
|
|
|
|
RS232
|
3 lines RXD, TXD and GND without flow control
|
|
|
|
USB
|
USB 2.0 Full Speed
|
|
|
|
Number of Slots
|
1 ID-1 Slot
|
|
|
|
Standard
|
ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V)
|
|
|
|
Protocol
|
T=0; T=1; Memory Card Support
|
|
|
|
Supply Current
|
Max. 50 MA
|
|
|
|
Short Circuit Protection
|
(+5) V /GND on all pins
|
|
|
|
Card Connector Type
|
ICC Slot 0: Landing
|
|
|
|
Clock Frequency
|
4 MHz
|
|
|
|
Smart Card Read /Write Speed
|
9,600-115,200 bps
|
|
|
|
Card Insertion Cycles
|
Min. 200,000
|
|
|
|
Standard
|
ISO-14443 A & B part 1-4
|
|
|
|
Protocol
|
MIFARE® Classic Protocols, T=CL
|
|
|
|
Smart Card Read /Write Speed
|
106 Kbps
|
|
|
|
Operating Distance
|
Up to 50 mm
|
|
|
|
Operating Frequency
|
13.56 MHz
|
|
|
|
Number of Slots
|
4 ID-000 slots
|
|
|
|
Card Connector Type
|
Contact
|
|
|
|
Standard
|
ISO/IEC 7816 Class B (3V)
|
|
|
|
Protocol
|
T=0; T=1
|
|
|
|
Smart Card Read /Write Speed
|
9,600-115,200 bps
|
|
|
|
Standard
|
ISO 7811
Track 1/2/3, Bi-directional |
|
|
|
Reading
|
Supported
|
|
|
|
Buzzer
|
Monotone
|
|
|
|
LED Status Indicators
|
4 LED for indicating status
(from left most: blue, yellow, green, red) |
|
|
Operating Conditions
|
Temperature
|
-10°C – 50°C
|
|
|
|
Humidity
|
5% to 93%, non-condensing
|
|
|
Certifications/
Compliance |
ISO/IEC 7816, ISO/IEC 14443, ISO/IEC 7811, Contact PBOC 3.0 L1, Contactless PBOC 3.0 L1, Contact EMV L1, Contactless EMV L1
|
|
|
|
Supported Operating Systems
|
Windows98, Windows ME, Windows 2000, WindowsXP, Windows7, Windows 8.1, Windows10, Linux
|
|
|
|
Model Description
|
|
|
||
|
Type
|
Model
|
Supported Card
|
||
|
HCC-T10-DC |
HCC-T10-DC1
|
NFC Card
|
||
|
|
HCC-T10-DC2
|
Magnetic Card, IC Contact Card
|
||
|
|
HCC-T10-DC3
|
Magnetic Card, IC Contact Card, NFC Card
|
||

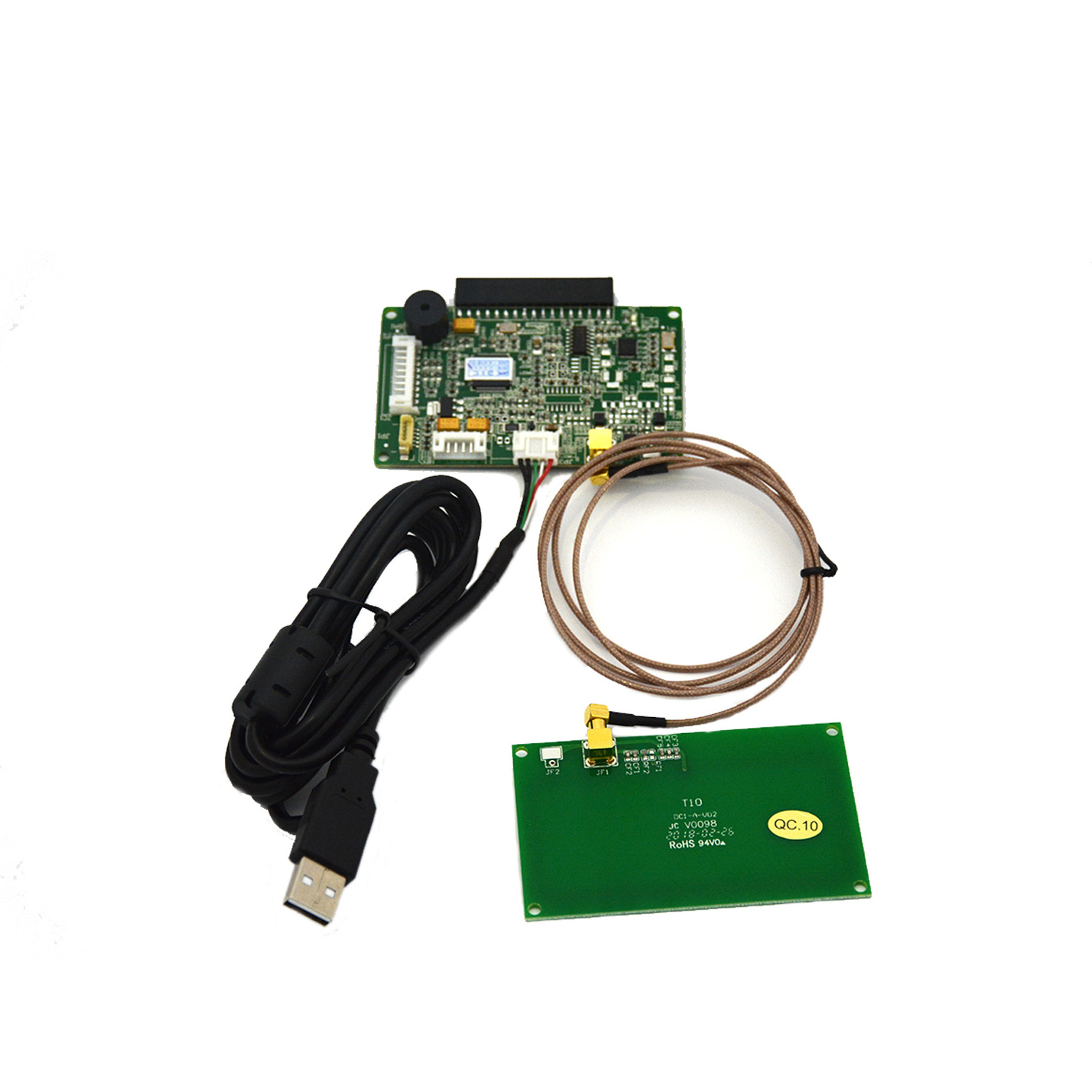

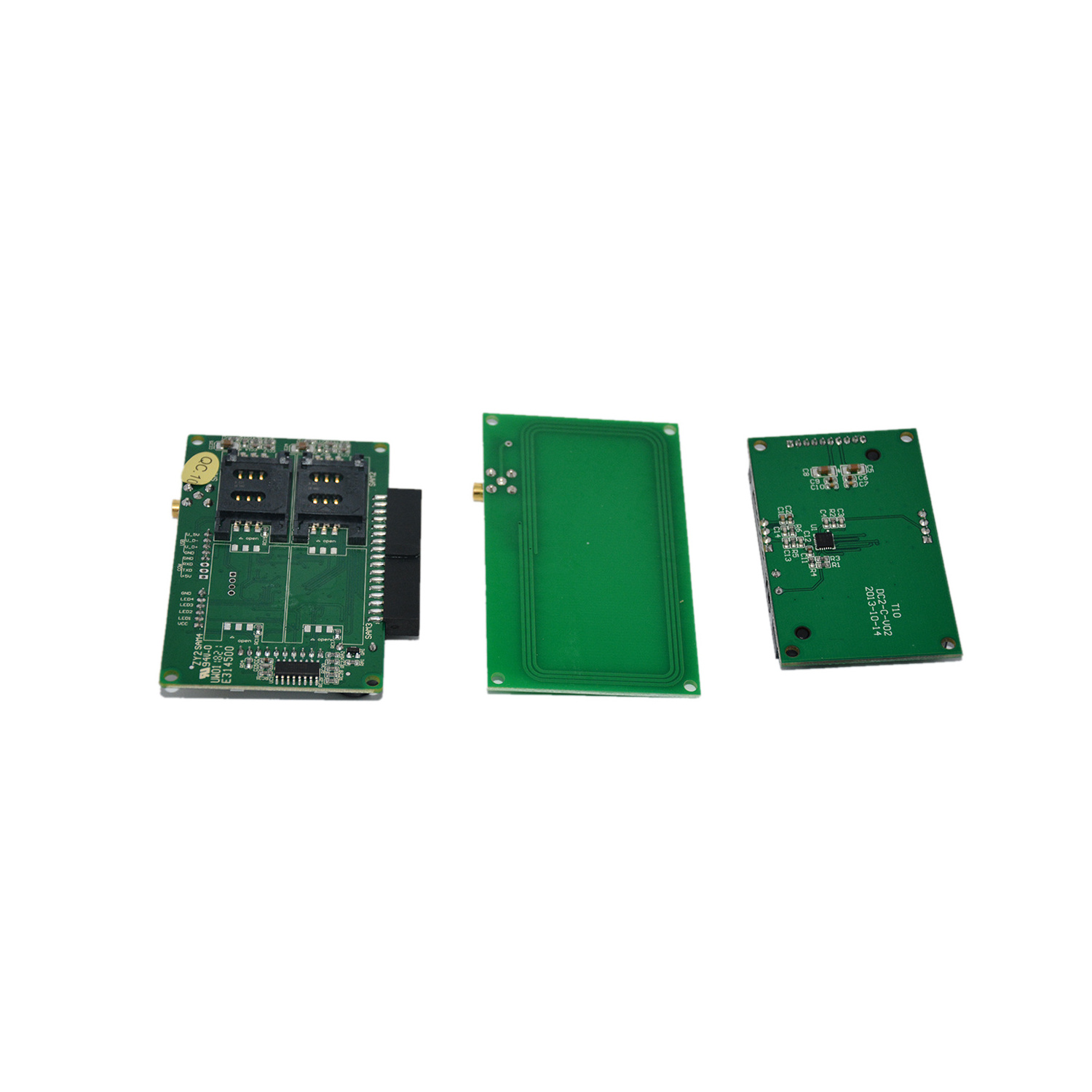

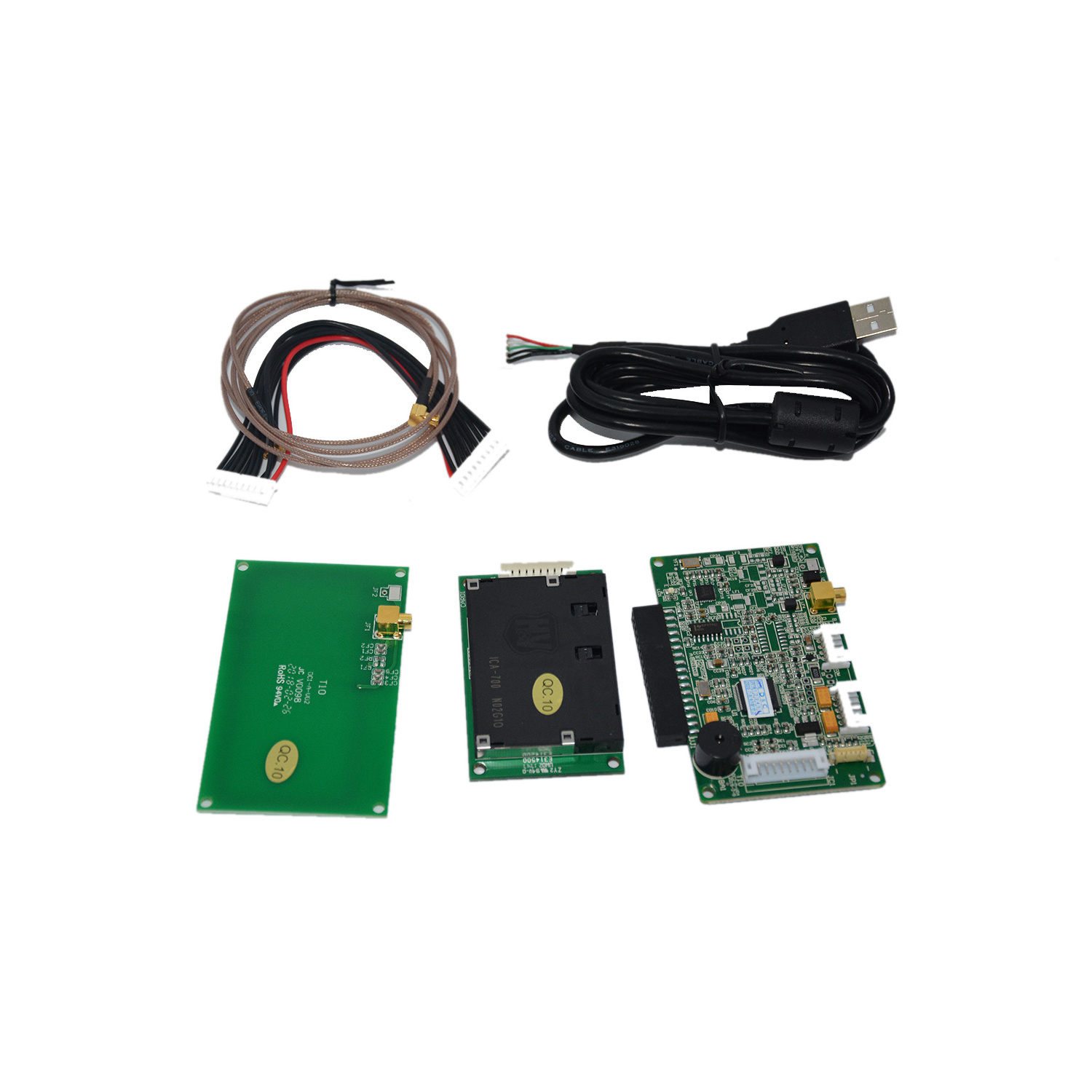

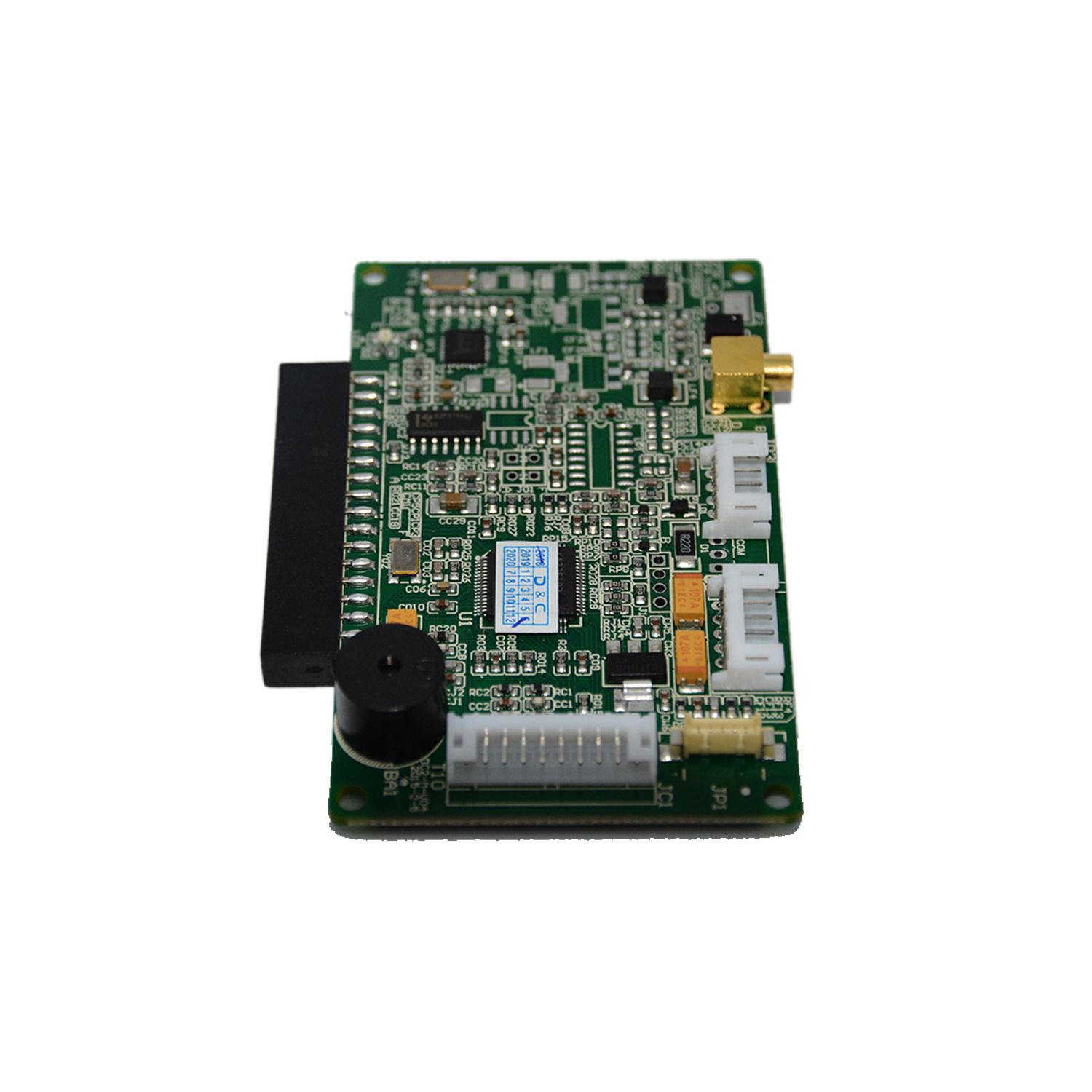

Details Images
