Quick Details
-
Production Capacity:
-
30-80 bags/min
-
Weight (KG):
-
200
-
Voltage:
-
380V 3phase 50hz
-
Place of Origin:
-
China
-
Brand Name:
-
Orangemesh
-
Dimension(L*W*H):
-
4600*2000*3600mm
-
Main Function:
-
Food Weighing Premade Bag Packing
-
Usage:
-
Food weighing fill packing machine
-
Bag type:
-
premade pouch
-
Machine type:
-
Weigher Premade Bag Granule Packing machine
-
Suitable for:
-
Powder Granule Filling Packing Machine
-
Type of machines:
-
snack food bag packing machine
-
Control system:
-
PLC control
-
Feeding System:
-
Weighting filling and packing machine
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic, cotton paper or nylon
-
Production Capacity:
-
30-80 bags/min
-
Weight (KG):
-
200
-
Voltage:
-
380V 3phase 50hz
-
Place of Origin:
-
China
-
Brand Name:
-
Orangemesh
-
Dimension(L*W*H):
-
4600*2000*3600mm
-
Main Function:
-
Food Weighing Premade Bag Packing
-
Usage:
-
Food weighing fill packing machine
-
Bag type:
-
premade pouch
-
Machine type:
-
Weigher Premade Bag Granule Packing machine
-
Suitable for:
-
Powder Granule Filling Packing Machine
-
Type of machines:
-
snack food bag packing machine
-
Control system:
-
PLC control
-
Feeding System:
-
Weighting filling and packing machine
Product Description
Product View
|
Model
|
420C
|
|
Making bag size
|
(L) 60-300mm (W) 60-200MM
|
|
Packing Speed
|
30-80 bags/min
|
|
Power Supply
|
220V 1phase 50HZ
|
|
Measuring accuracy
|
≤±1%
|
|
Packing Material
|
OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE
|
|
Compressed air consumption
|
6kg/㎡
|
|
Air consumption
|
0.3m³/min
|
|
Roll film size
|
Outer diameter D≤ø300mm, Inner diameter D=74mm
|
|
Weight
|
1000KG
|
|
Dimension
|
4600*2000*3600mm
|
Product Display

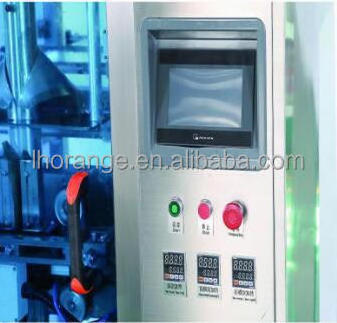

Main control system:
1. Smart touch screen, one-key adjustment of weight and size
2. Independent horizontal and vertical sealing temperature control, easy to adjust
3. Set start, stop and emergency stop switches for easy operation
4. Can be customized

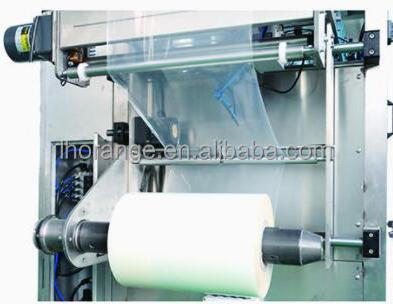

Film transport agency
1. Linked film roll to coordinate the entire film pulling link
2. Roll film bag making, disassembly and installation, easy to replace
3. Fixing device, adjustable film width
4. Suitable for more roll film materials, smooth film drawing

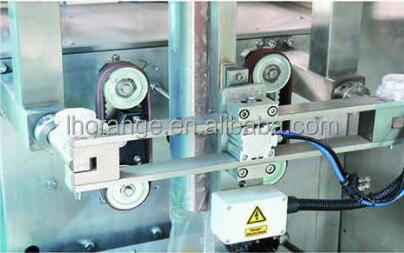

Film pulling device:
Double film structure, high-quality grinding wheel
Pulls more smoothly,
The packaging is more beautiful
Sealing device
High-quality stainless steel
Sponge exhaust
Accurate sealing, beautiful sealing
