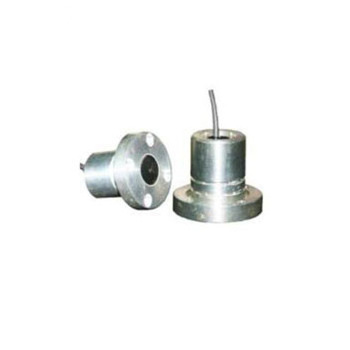

Waterproof Underwater Depth Sensor Long Range Ultrasonic Sensor
Waterproof Underwater Depth Sensor Long Range Ultrasonic Sensor
Waterproof Underwater Depth Sensor Long Range Ultrasonic Sensor
Waterproof Underwater Depth Sensor Long Range Ultrasonic Sensor

Waterproof Underwater Depth Sensor Long Range Ultrasonic Sensor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $300
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Hurricane
Theory:
Ultrasonic Sensor
Output:
Analog SENSOR
Model:
TW1M20005
Measure Range:
200KHz 0.3~20m 1MHz 0.1~5m
Frequency:
1MHz±30KHz, 200KHz
Working voltage:
Peak voltage<400VPP
Protection Level:
IP68
Working temperature:
-20~+80℃
Pressure:
Maximum 100m underwater depth

Quick Details

Usage:
depth measurement sensor
Model Number:
TW1M20005
Type:
TW1M20005, Dual-frequency
Place of Origin:
Guangdong, China
Brand Name:
Hurricane
Theory:
Ultrasonic Sensor
Output:
Analog SENSOR
Model:
TW1M20005
Measure Range:
200KHz 0.3~20m 1MHz 0.1~5m
Frequency:
1MHz±30KHz, 200KHz
Working voltage:
Peak voltage<400VPP
Protection Level:
IP68
Working temperature:
-20~+80℃
Pressure:
Maximum 100m underwater depth
Product Description

1MHz/200KHz Dual-frequency Underwater Depth Measurement Ultrasonic Transducer




Technology parameters

Item
Specificaton
Model
TW1M20005
Measure Range
200KHz : 0.3~20m
1Mhz : 0.1~5m
Frequency
1MHz±30KHz, 200KHz
Working voltage
Peak voltage<400VPP
Working temperature
-20~+80℃
Pressure
Maximum 100m underwater-depth
Corrosion resistance
Can be worked in the environment of

weak acid weak base .
Beam Angle
half-power@-3dB: 5.5°
sharpness angle: 13.1°(1MHz)

half-power@-3dB: 27.3°,
sharpness angle: 67.3°(200KHz)



Admitance Curve Diagram



Product Structure Diagram
