Quick Details
-
Dimension(L*W*H):
-
700(L)*900(W)*1400(H)mm
-
Weight:
-
350
-
Power (kW):
-
3kW
-
Crimping range:
-
6~51mm ( 1/4~2" )
-
Maximum Open Diameter::
-
114mm
-
Buckling Pressure::
-
640T
-
Free Dies::
-
12 Sets (14 16 20 22 26 30 38 46 51 54 64 69)
-
System Pressure::
-
26MPa / 31.5MPa(Optional)
-
The max open tolerance::
-
± 30mm
-
Oil pump Displacement:
-
5ml/rad(380v);2.5ml/rad(220v)
-
Efficiency::
-
250pcs/h
-
Motor Power::
-
3kW (as your requirements)
-
Scale accuracy:
-
0.01mm
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HENGHUA
-
Voltage:
-
220V/240V/380V/415V (Optional)
-
Dimension(L*W*H):
-
700(L)*900(W)*1400(H)mm
-
Weight:
-
350
-
Power (kW):
-
3kW
-
Crimping range:
-
6~51mm ( 1/4~2" )
-
Maximum Open Diameter::
-
114mm
-
Buckling Pressure::
-
640T
-
Free Dies::
-
12 Sets (14 16 20 22 26 30 38 46 51 54 64 69)
-
System Pressure::
-
26MPa / 31.5MPa(Optional)
-
The max open tolerance::
-
± 30mm
-
Oil pump Displacement:
-
5ml/rad(380v);2.5ml/rad(220v)
-
Efficiency::
-
250pcs/h
-
Motor Power::
-
3kW (as your requirements)
-
Scale accuracy:
-
0.01mm
Why Choose Us
Product Description

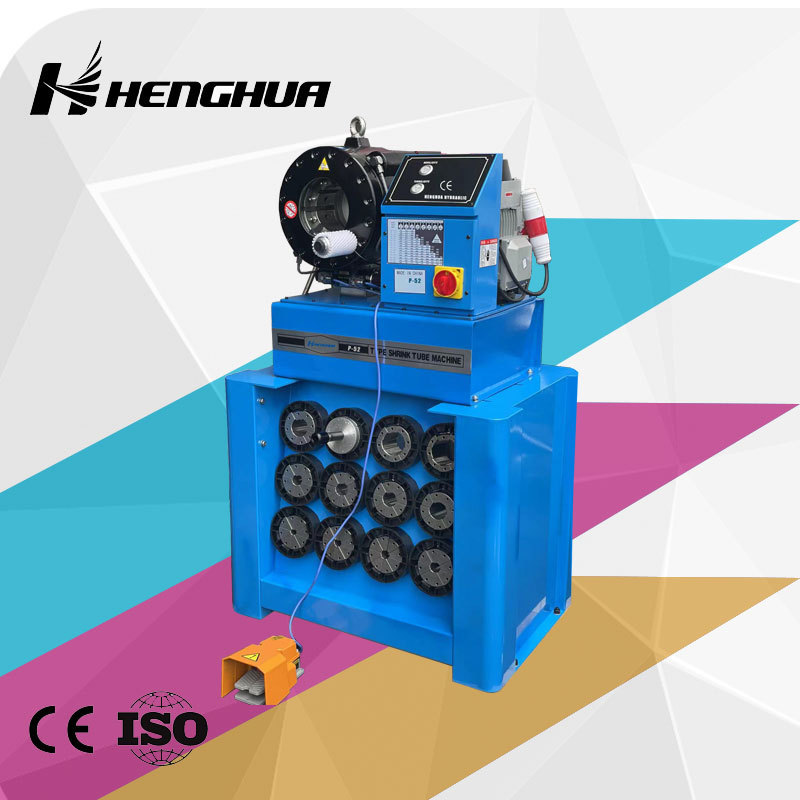

Model P52 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
| P52 FINN POWER HOSE CRIMPING MACHINE | |
| Crimping Range (Inner Diameter): | 6~51mm ( 1/4~2" ) |
| Free Dies: | 12 Sets (14 16 20 22 26 30 38 46 51 54 64 69) |
| Accuracy: | 0.01mm |
| Volume of oil tank: | 2.5L / 5L / 10L (Optional) |
| System Pressure: | 26MPa / 31.5MPa(Optional) |
| Motor Power (as your requirements): | 3kW |
| Voltage (as your requirements): | 220V/240V/380V/415V (Optional) |
| Buckling Pressure: | 640T |
| Efficiency: | 250pcs/h |
| Maximum Open Diameter: | 114mm |
| The max open tolerance: | ± 30mm |
| Hydraulic oil: | 46# |
| Net Weight: | 350KG |
| Gross Weight: | 365KG |
| Package Dimension: | 700*900*1400 mm |
| quickly change: | including |
Feature:
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
1) Using forge steel machine head, more durabler than general steel.
2) CNC operation panel, simple controls and operation.
3) CNC system, high crimp accuracy which is within 0.01mm.
4) Equipped with a foot pedal, very convenient for free hand operate.
5) Magnetic dies (Patented), very convenient to remove and install dies.
Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
Machine Head
Attribute: Forge Steel
Original: Germany Technology
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.
Dies & Mold Base
Attribute: Strong Magnetic Connection
Original: HENGHUA(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent
Electromagnetic Valve
Control Panel
Electromagnetic Valve
Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.
Control Panel
Attribute: CNC Operation Panel
Original: China(Mainland)
P52 crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.
