Quick Details
-
color:
-
green
-
Contact form:
-
1C
-
Pull in value:
-
10-25AT
-
Maximum switching voltage:
-
24VDC
-
Maximum switching current:
-
0.05A
-
Maximum operating frequency:
-
100Hz
-
Operating temperature:
-
-10~+60 degree
Quick Details
-
Max. Voltage:
-
0.1A
-
Place of Origin:
-
Zhejiang, China
-
Dimension:
-
2.5*16mm
-
color:
-
green
-
Contact form:
-
1C
-
Pull in value:
-
10-25AT
-
Maximum switching voltage:
-
24VDC
-
Maximum switching current:
-
0.05A
-
Maximum operating frequency:
-
100Hz
-
Operating temperature:
-
-10~+60 degree
Property & Application

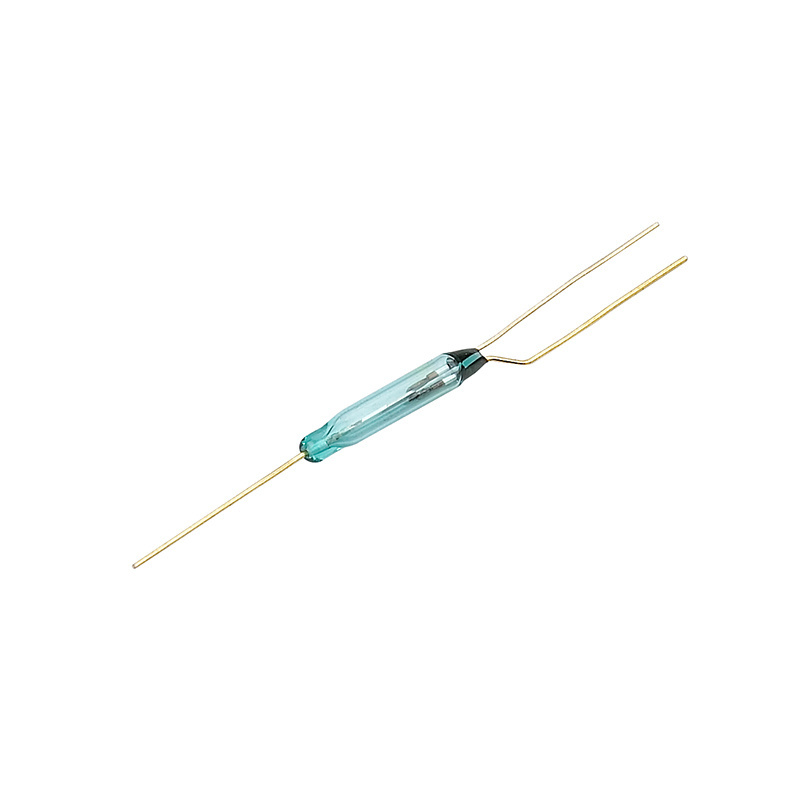

- Reed contacts are hermetically sealed within a glass tube and do not receive the external atmospheric environment ;
- Quick response, and light weight ;
- Superior corrosion resistance and wear resistance of the contacts assures stable switching operaion and long life ;
- Composed fast with the coil and magnet, reed switch can be used for reed relay or sensor ;
- Widely used in household applicances, control equipment, communication equipment, communication, automotive electronic devices, measurement equipment etc .
Model & Meanings
Contact Form & Product Structure
Specification
| Dimensions | Φ2.5 × 16mm |
| Contact Type | 1C |
| Contact Rating | 1.0VA |
| Pull In Value(PI) | 10 - 25AT |
| Drop Out Value(DO) | ≥5AT |
| Contact Resistance | ≤200mΩ |
| Breakover Voltage | ≥100V DC |
| Insulation Resistance | ≥100mΩ |
| Electrostatic Capacitance | 0.2pF |
| Maximum Switching Voltage | 24V DC |
| Maximum Switching Current | 0.05A |
| Maximum Carry Current | 0.1A |
| Operate Time | ≤0.8mS |
| Bounce Time | ≤0.4mS |
| Release Time | ≤0.2mS |
| Maximum Operating Frequency | 100Hz |
| Operating Temperature | -10-60℃ |
Why Choose Us
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- New packing design and new product research development.
- Accept to customize products up to specification.
- Small order welcome.
- Payment by Paypal, Western Union is supported.
- Provide prompt service and after-sale service.
