Quick Details
-
Usage:
-
Mining Separatoion
-
Material:
-
Carbon Steel
-
Feature:
-
High efficiency, easy maintenance, low price
-
Feeding size:
-
0-20mm
-
Installation:
-
Engineer Guidance
-
Capacity:
-
Hour
-
Color:
-
Blue
-
In stock:
-
Yes
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Product name:
-
trommel screen
-
Usage:
-
Mining Separatoion
-
Material:
-
Carbon Steel
-
Feature:
-
High efficiency, easy maintenance, low price
-
Feeding size:
-
0-20mm
-
Installation:
-
Engineer Guidance
-
Capacity:
-
Hour
-
Color:
-
Blue
-
In stock:
-
Yes
Product Description

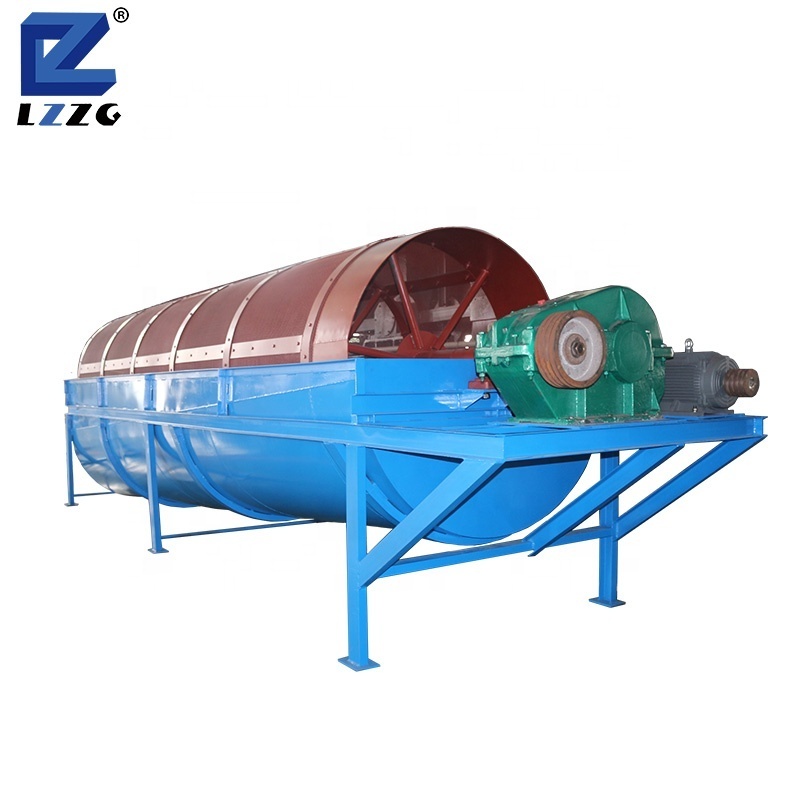

Compact rotary sand aggregate sand washer trommel screen used portable small trommel screen machine manufacturers for sale
Working Principle
The trommel drum cylinder is tilted on the rack. The motor is driven by the reducer to rotate the drum unit around its axis. After the material enters the drum device, due to the tilting and rotation of the drum device, the material on the screen surface is flipped and rolled so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the trommel screen, and the unqualified material(the product on the screen) is discharged through the discharge port at the tail of the trommel screen.
|
Tech Specifications
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Sceen size (m)
|
Angle (°)
|
Mesh Size (mm)
|
Feeding size (mm)
|
Capacity (t/h)
|
Power (kw)
|
Weight (kg)
|
Dimension
(mm)
|
||||||||
|
GT1030
|
φ1.0*3.0
|
6
|
5--15
|
≤40
|
30-100
|
4
|
1300
|
4500*1358*2336
|
||||||||
|
GT1040
|
φ1.0*4.0
|
6
|
5--15
|
≤40
|
30-100
|
4
|
1500
|
5500*1458*2336
|
||||||||
|
GT1230
|
φ1.2*3.0
|
6
|
5--15
|
≤40
|
30-150
|
5.5
|
1500
|
4500*1585*2478
|
||||||||
|
GT1240
|
φ1.2*4.0
|
6
|
5--15
|
≤40
|
30-150
|
5.5
|
1700
|
5500*1685*2478
|
||||||||
|
GT1540
|
φ1.5*4.0
|
6
|
5--15
|
≤40
|
30-200
|
7.5
|
2500
|
5800*2100*4400
|
||||||||
|
GT1560
|
φ1.5*6.0
|
6
|
5--15
|
≤40
|
30-200
|
11
|
2700
|
6800*2200*4400
|
||||||||
|
GT1860
|
φ1.8*6.0
|
6
|
5--15
|
≤40
|
30-250
|
18.5
|
5010
|
8486*2100*4673
|
||||||||
|
GT2160
|
φ2.1*6.0
|
6
|
5--15
|
≤40
|
30-250
|
22
|
6360
|
8486*2500*5000
|
||||||||
|
GT2460
|
φ2.4*6.0
|
6
|
5--15
|
≤40
|
30-300
|
22
|
7000
|
8486*2860*5200
|
||||||||
|
GT2480
|
φ2.4*8.0
|
6
|
5--15
|
≤40
|
30-300
|
22
|
7500
|
8700*2860*5700
|
||||||||

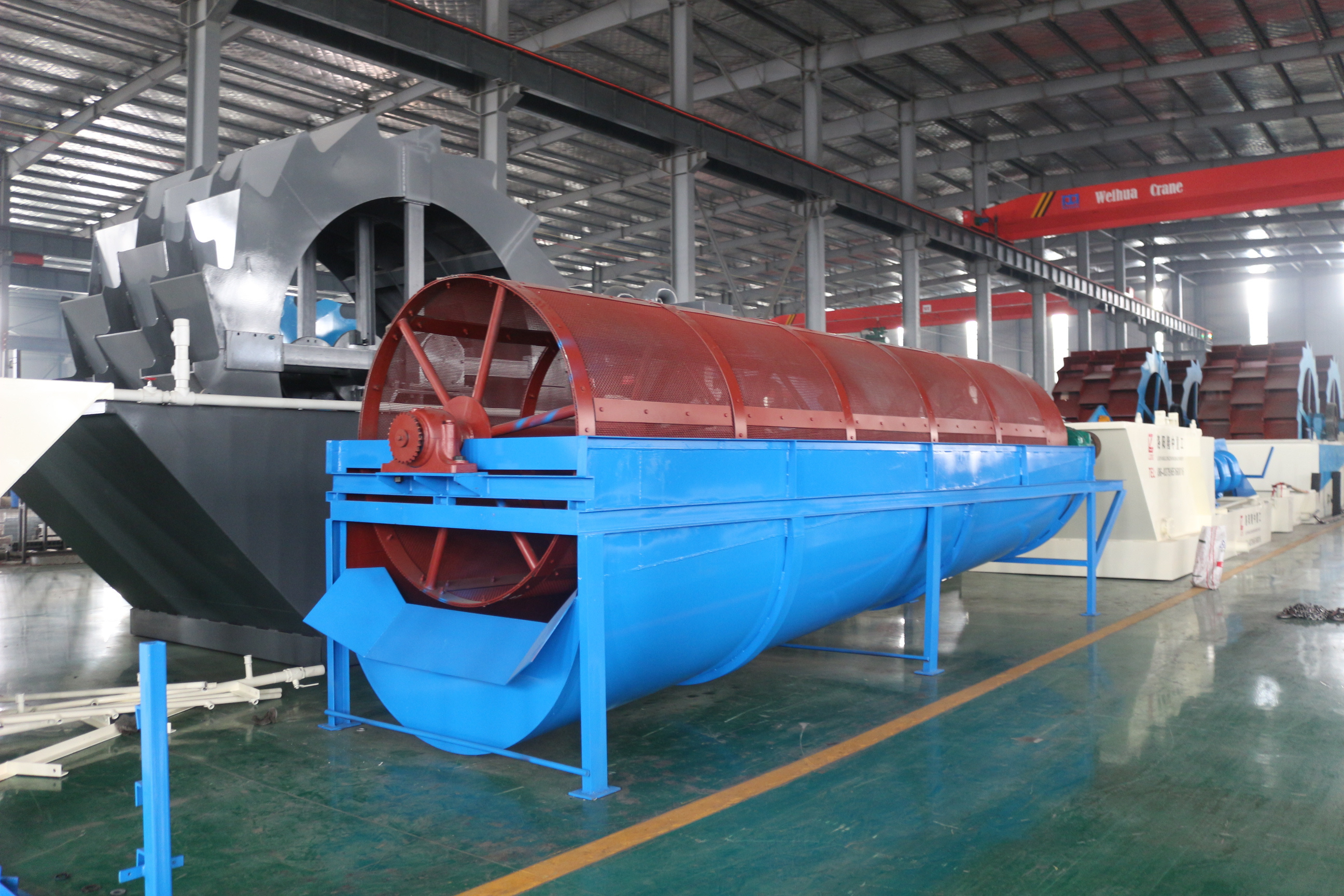

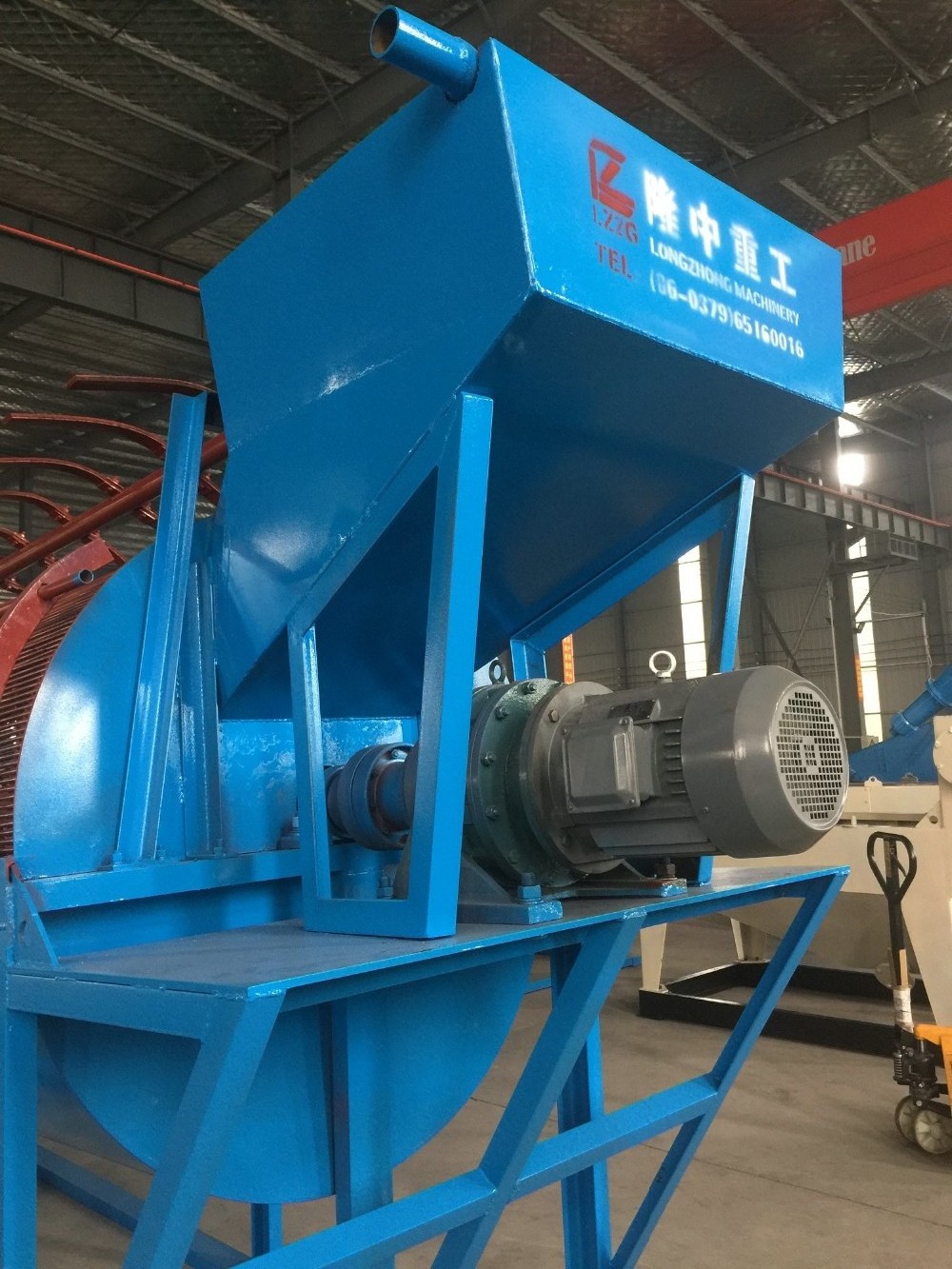

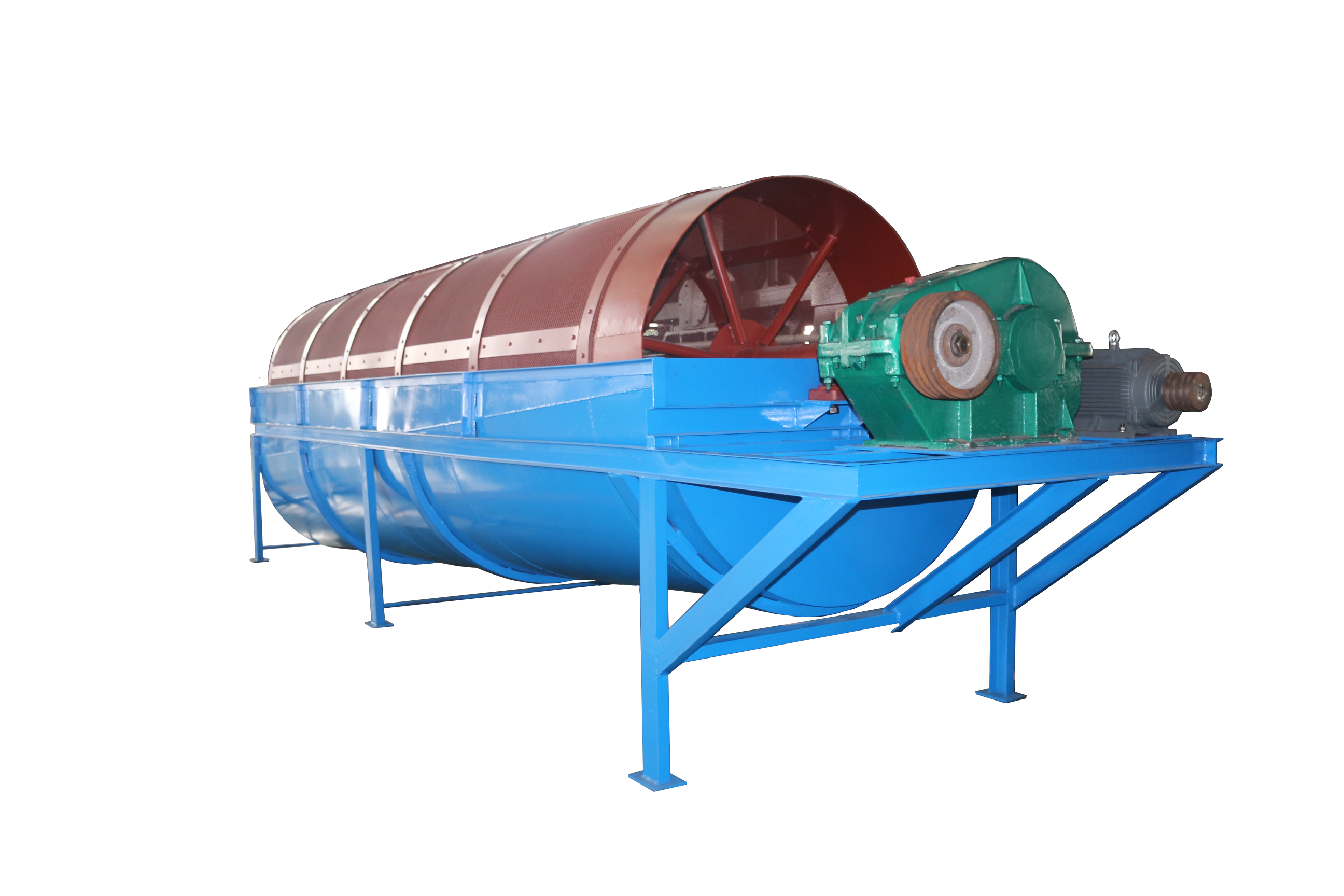

Detailed Images
Working site
Certifications
Packing & Delivery
|
Packaging & Delivery
|
|
|
|
Weight
|
1.3-7.5T
|
|
|
Delivery
|
Sea Transportation
|
|
|
Packaging Details
|
Waterproof cloth package for main body of GT series trommel screen;
Wooden package for electric motor and parts of GT series trommel screen; When arrive at the port, will all be loaded with containers. |
|
|
|
|
|
|
|
|
|
