Quick Details
-
Mounting Type:
-
easy
-
Description:
-
Ultrasonic Sensor, Ultrasonic Sensor
-
Model Number:
-
UB400-12GM-U-V1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Ultrasonic Sensor
-
Output:
-
Analog SENSOR, Analog output
-
Product name:
-
Ultrasonic Sensor
-
Material Housing:
-
brass,nickel-plated
-
Sensing distance:
-
30...400mm
-
Output type:
-
1 analogue output 0...10V
-
Connection:
-
connector(M12*1),4-pin
-
Protection grade:
-
IP67
-
Certificate:
-
CE
-
Warranty:
-
2years
Quick Details
-
Use:
-
Position Sensor, position / level sensor
-
Series:
-
UB400-12GM-U-V1
-
Features:
-
Ultrasonic Sensor
-
Mounting Type:
-
easy
-
Description:
-
Ultrasonic Sensor, Ultrasonic Sensor
-
Model Number:
-
UB400-12GM-U-V1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Ultrasonic Sensor
-
Output:
-
Analog SENSOR, Analog output
-
Product name:
-
Ultrasonic Sensor
-
Material Housing:
-
brass,nickel-plated
-
Sensing distance:
-
30...400mm
-
Output type:
-
1 analogue output 0...10V
-
Connection:
-
connector(M12*1),4-pin
-
Protection grade:
-
IP67
-
Certificate:
-
CE
-
Warranty:
-
2years

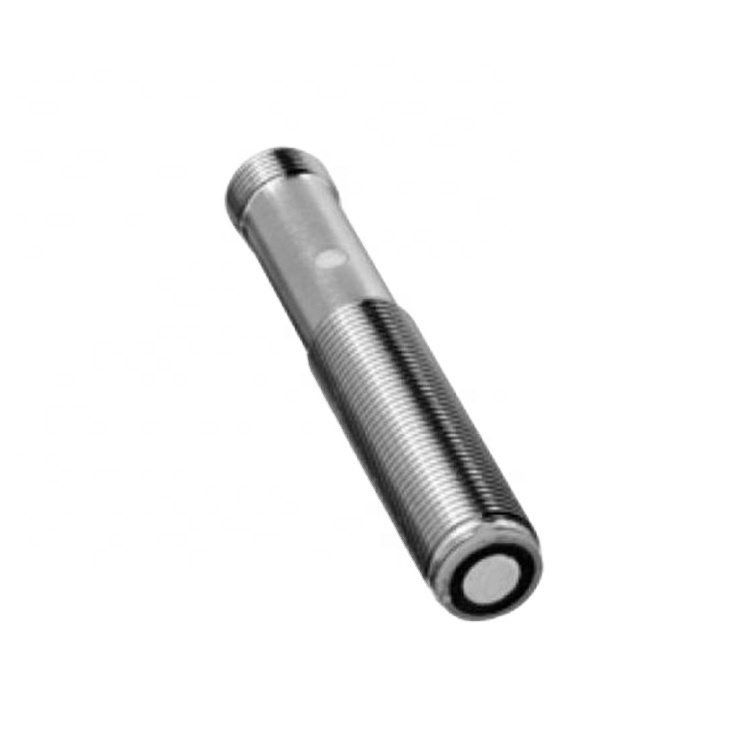

M12 Analog Output Ultrasonic Sensor (UB400-12GM-U-V1)
Technical Parameters
| UB400-12GM-U-V1 | ||||||||
| Technical data | ||||||||
| Sensing distance | 30…400mm | |||||||
| Adjustment range | 50…400mm | |||||||
| Unusable area | 0…30mm | |||||||
| Standard target plate | 100mm×100mm | |||||||
| Transducer frequency | About 310kHz | |||||||
| Response delay | About 50ms | |||||||
| Indicators/Operating means | ||||||||
| LED blue | Power on | |||||||
| LED yellow | ||||||||
| LED red | ||||||||
| Electrical specifications | ||||||||
| Operating voltage UB | 10…30VDC,ripple10%ss | |||||||
| No-load supply current | ≤30mA | |||||||
| Output | ||||||||
| Output type | 1 analogue output 0…10V | |||||||
| Resolution | 0.11mm at max.sensing range | |||||||
| Deviation of the characteristic curve | ±1% of full-scale value | |||||||
| Repeat accuracy | ±0.1% of full-scale value | |||||||
| Load impedance | >1k Ohm | |||||||
| Temperature influence | ±1.5% of full-scale value | |||||||
| Mechanical specifications | ||||||||
| Protection grade | IP67 | |||||||
| Connection | connector(M12×1),4-pin | |||||||
| Material Housing | brass,nickel-plated | |||||||
| Transducer | ||||||||
