Quick Details
-
Dimension(L*W*H):
-
675*440*850mm
-
Weight:
-
216kg
-
Power (kW):
-
3kw
-
Name:
-
Pipe press
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Free spare parts, Online support, Video technical support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Russia
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
mashi
-
Voltage:
-
Standard
-
Dimension(L*W*H):
-
675*440*850mm
-
Weight:
-
216kg
-
Power (kW):
-
3kw
-
Name:
-
Pipe press
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Free spare parts, Online support, Video technical support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Russia
-
Certification:
-
ISO CE

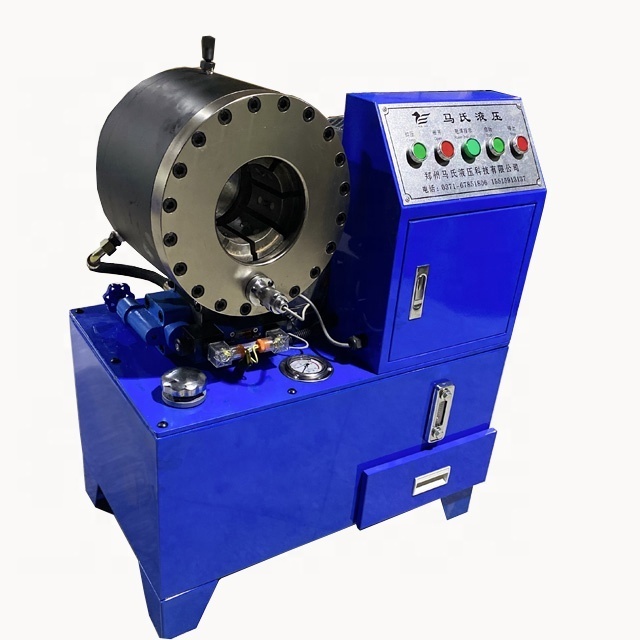

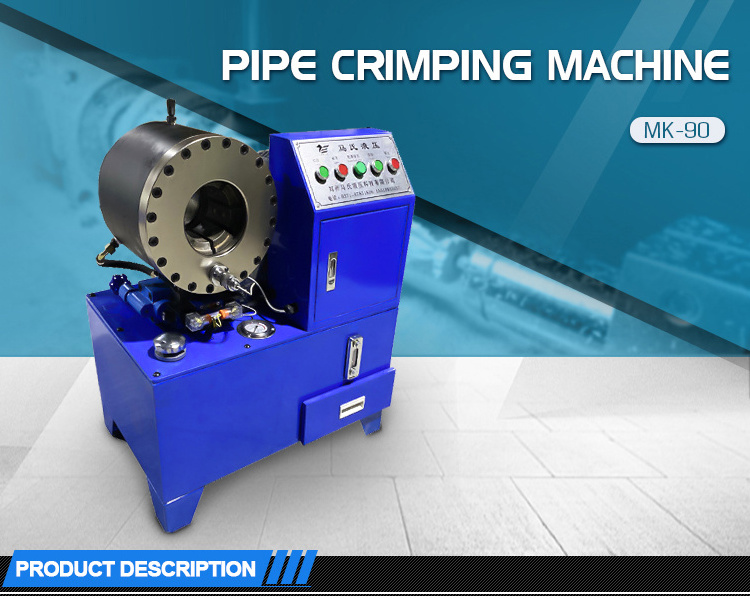

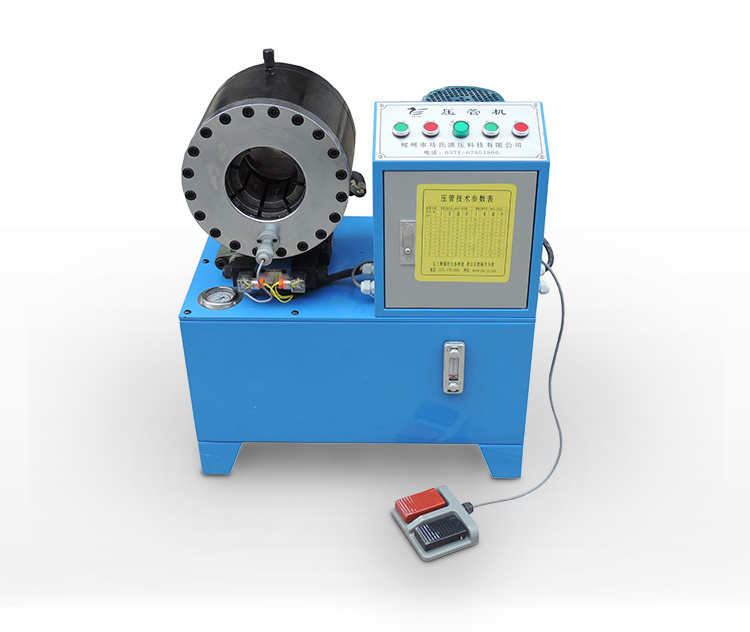

Mk-90 pipe pressing machine is one of the best-selling models in our company. It is compact and portable, easy to operate. The case adopts imported spraying process, which is beautiful and corrosion-resistant. The electrical control system used is easy to maintain and repair. In order to prolong the service life of the machine, the dedicated die steel material and unique heat treatment process are adopted. We promise to focus on doing high-quality products, all products have passed the ISO9001 quality system certification. Each equipment has passed a number of tests before leaving the factory, the original factory quality, after-sales worry free.
|
|
MK-90
|
|
Clamping range
|
φ6-φ51 mm
|
|
Maximum outside diameter of buckle
|
80 mm
|
|
Maximum opening
|
130 mm
|
|
Working speed
|
≤10 S
|
|
Power supply
|
110-480 V OPTIONAL
|
|
System pressure
|
31.5 MPa
|
|
Buckle pressure
|
3600 KN
|
|
Number of moulds
|
10 sets
|
|
Volume
|
675 * 440 * 850 mm
|
|
Net weight
|
216 kg
|
|
Tank capacity
|
70 L
|
|
Packing size
|
720 * 480 * 970 mm
|
|
Gross Weight
|
238 kg
|
Zhengzhou MASHI Hydraulic Technology Co., Ltd. is a hydraulic series product enterprise integrating R & D, production, sales and service. The company has been specialized in the field of production and sales of hydraulic equipment for decades. The products are mainly various withholding machines, all of which have passed the ISO9001 quality system certification.
1.Q: Is the company a manufacturer or trading company?
A: The company is a professional manufacturer of crimping machines and directly provides factory quotations.
2.Q: Shall we visit the factory?
A：Welcome friends from all over to visit.
3.Q: Shall we use our brand?
A：We provide OEM service.
4.Q: Do you support special-shaped product customization?
A：All kinds of customization are supported.
5.Q: What is the MOQ？
A: 1 set.
6.Q: What if I can’t find the product I need?
A: Please contact with me online, or write you need to my email, we will reply soon.
