Quick Details
-
Weight (KG):
-
3000
-
Voltage:
-
380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IMAKO
-
Dimension(L*W*H):
-
4650*3650*1700
-
Scope of application:
-
Facial tissue,V fold hand towel,napkin
-
Packaging style:
-
3D(Three Dimensional)
-
Packaging material:
-
CPP,PE,SPP,BOPP etc
-
Power consumption:
-
12KW
-
Iptional device:
-
Ink Printer
-
Certification:
-
CE
-
Tissue sorting mode:
-
Auto intelligent tissue sorting
-
Size mould:
-
3sets
-
Compressed air(MPA):
-
Air source:≥0.5
-
Movement control mode:
-
3 servo shafts positioning control
Quick Details
-
Function:
-
Wrapping
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
3000
-
Voltage:
-
380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IMAKO
-
Dimension(L*W*H):
-
4650*3650*1700
-
Scope of application:
-
Facial tissue,V fold hand towel,napkin
-
Packaging style:
-
3D(Three Dimensional)
-
Packaging material:
-
CPP,PE,SPP,BOPP etc
-
Power consumption:
-
12KW
-
Iptional device:
-
Ink Printer
-
Certification:
-
CE
-
Tissue sorting mode:
-
Auto intelligent tissue sorting
-
Size mould:
-
3sets
-
Compressed air(MPA):
-
Air source:≥0.5
-
Movement control mode:
-
3 servo shafts positioning control
|
Max. Work Speed:
|
100Pack/min
|
|
Total Power:
|
12KW
|
|
Pack Range(mm):
|
Length (L): 95-210
Width (W): 80-115(Extension150) Height (H): 30-100(Exceeded size can be customized) |
Product Description
|

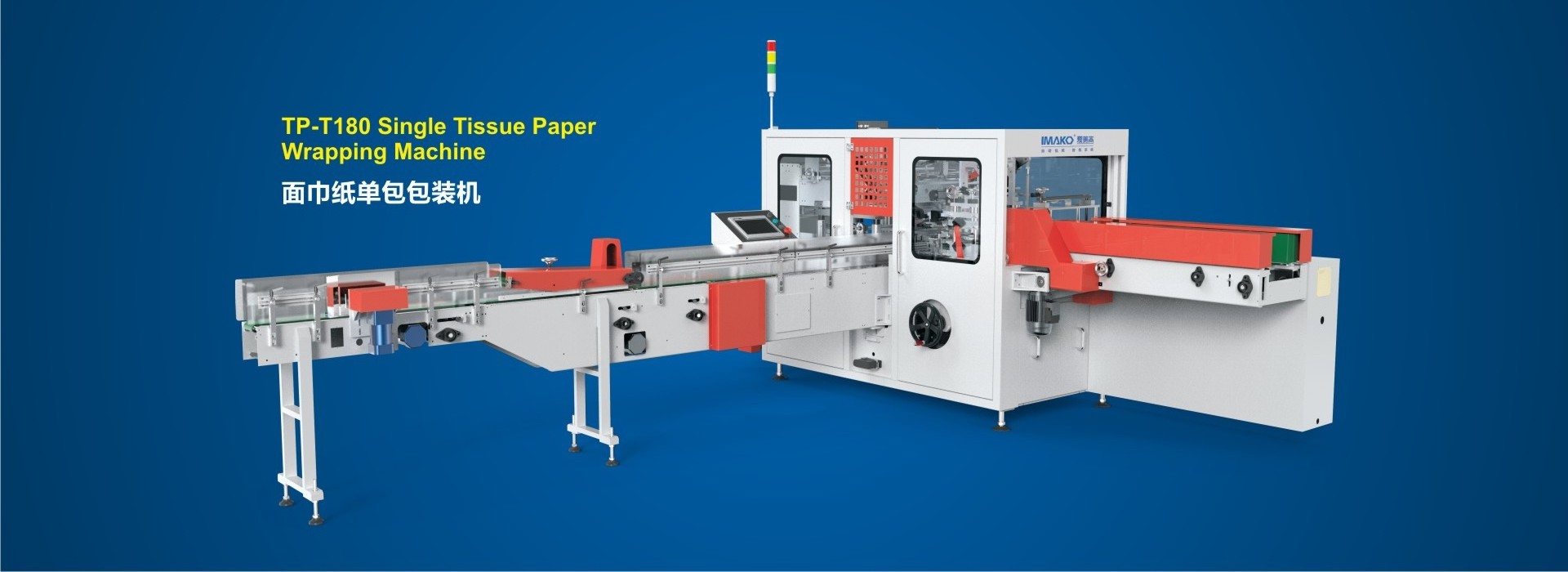

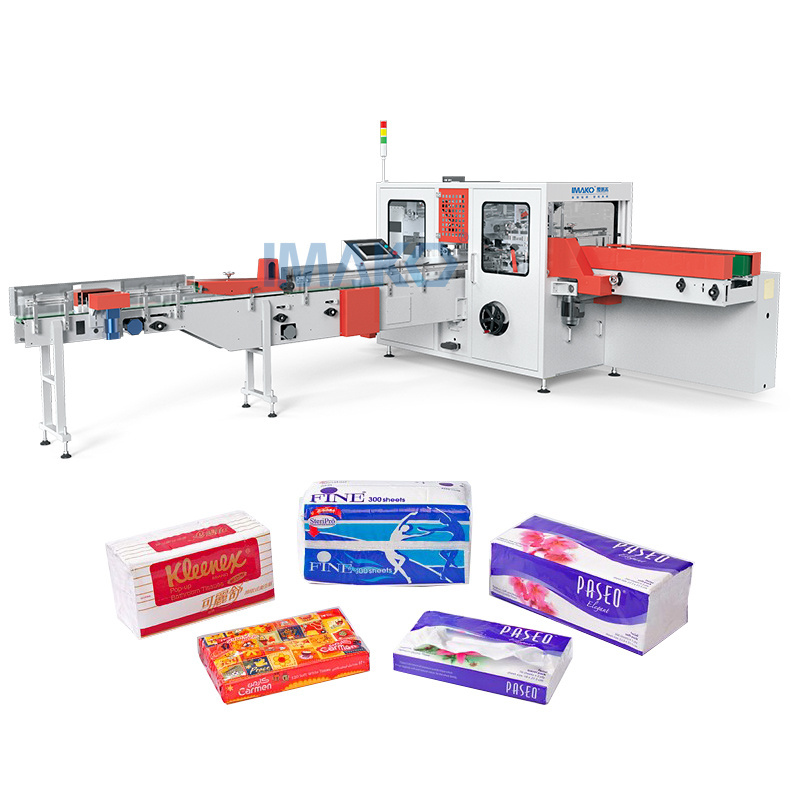

Fully automatic tissue paper machine for facial tissue,napkin and V fold hand towel
|
|
|
|
|||
|
Scope of application
|
V fold facial tissue,Napkin,V fold hand towel
|
Packaging style
|
3D(Three dimensional)
|
|||
|
Design speed
|
100 packs/min
|
Production speed
|
80-100 packs/min
|
|||
|
Tissue length
|
95-210mm
|
Tissue width
|
90-115mm
|
|||
|
Tissue height
|
40-100mm(can be customized)
|
Size changing moulds
|
3sets
|
|||
|
Machine dimension
|
4650X3650X1700mm
|
Packaging material
|
CPP,PE,SPP,BOPP
|
|||
|
Film thickness
|
0.035-0.05mm
|
Max.film diameter
|
≤500mm
|
|||
|
Film core diameter
|
76mm(international standard)
|
Max.film width
|
340mm
|
|||
|
Compressed air
|
0.6mpa
|
Power supply
|
380V,50HZ(can be customized)
|
|||
|
Total power cunsumption
|
12kw
|
Electrical control system
|
Mitsubishi,Siemens
|
|||
|
Pneumatic system
|
FESTO
|
Optional device
|
Ink printer
|
|||
Detailed Images
Paper arrangement and feeding
Adopts inverter for controlling tissue arrangement and feeding.
Paper sorting, feeding
Adopts
servo motors for
positioning
Film perforation and film pulling and Sealing parts
Film perforation, film pulling and film cut off and center sending are controlled by servo motors.

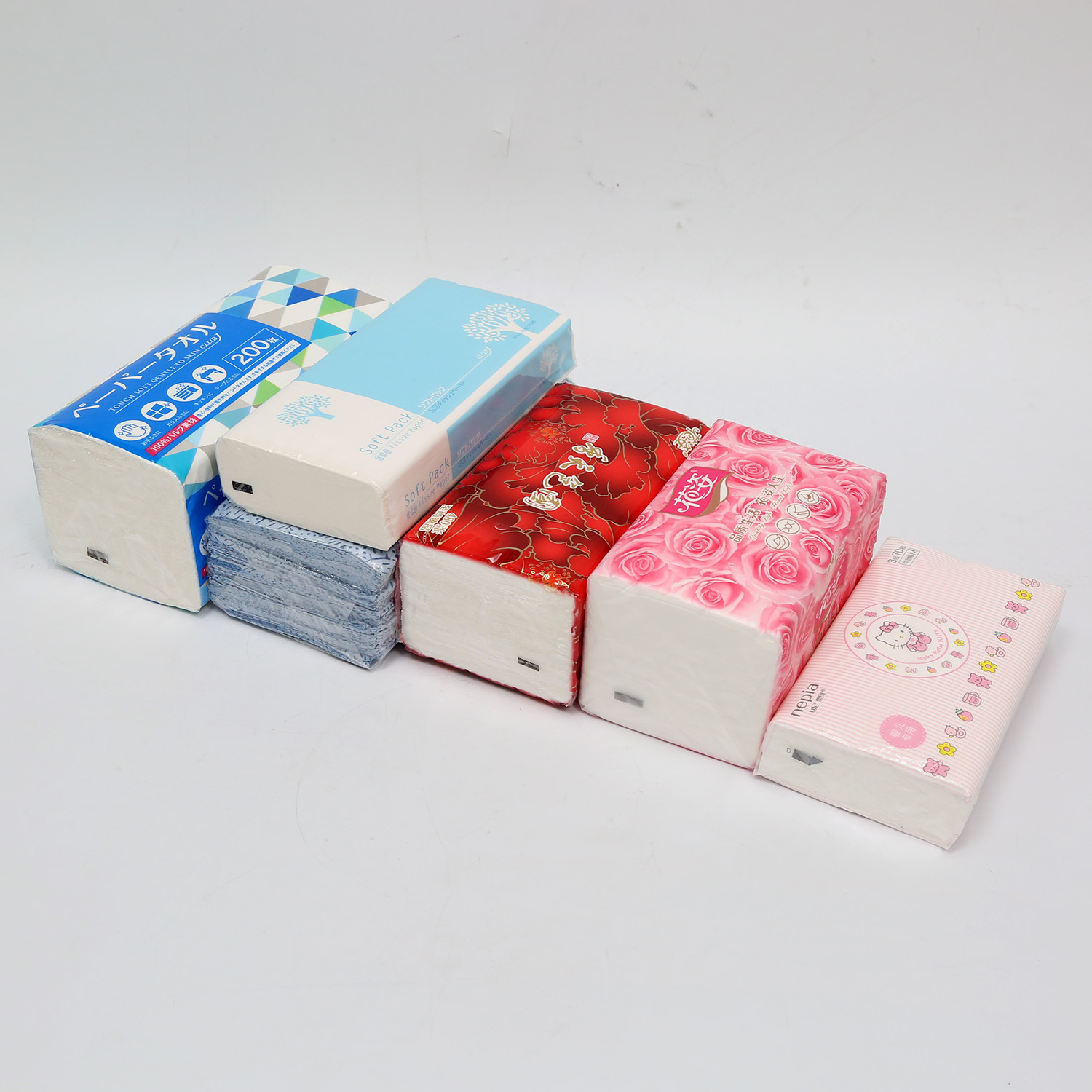

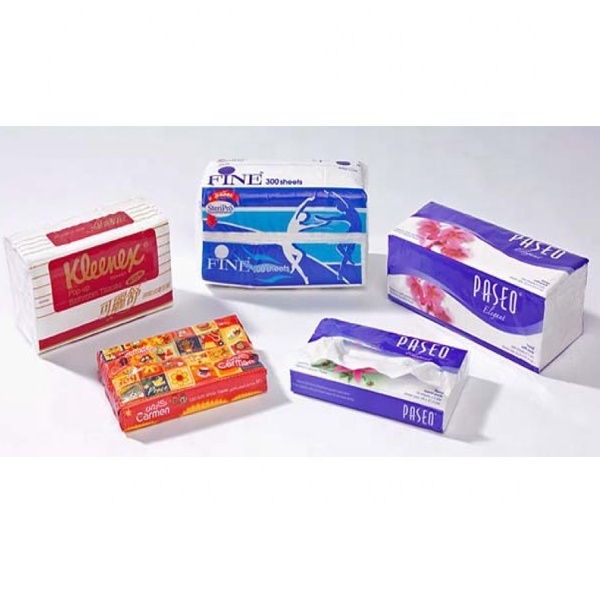

Finished Product
This machine has the advantages of complete operation function,high use efficiency,easy to operation,wide range of suitable specification,quick size change over,convenient maintenance,low cost for maintenance etc..
Packing & Delivery
Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery: 50 days upon receiving deposit.
Guarantee:One year. (The following problems are excluded from the warranty:due to
accidents,misuse,misapplication,storage damage,negligence,or modification to the Equipment or its components.)
After service: Conduct Installation and Use Training(Engineers may not be able to travel abroad for the COVIN-19 PANDEMIC)
Delivery: 50 days upon receiving deposit.
Guarantee:One year. (The following problems are excluded from the warranty:due to
accidents,misuse,misapplication,storage damage,negligence,or modification to the Equipment or its components.)
After service: Conduct Installation and Use Training(Engineers may not be able to travel abroad for the COVIN-19 PANDEMIC)
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like
air tickets,accommodation and local transportation.
air tickets,accommodation and local transportation.
