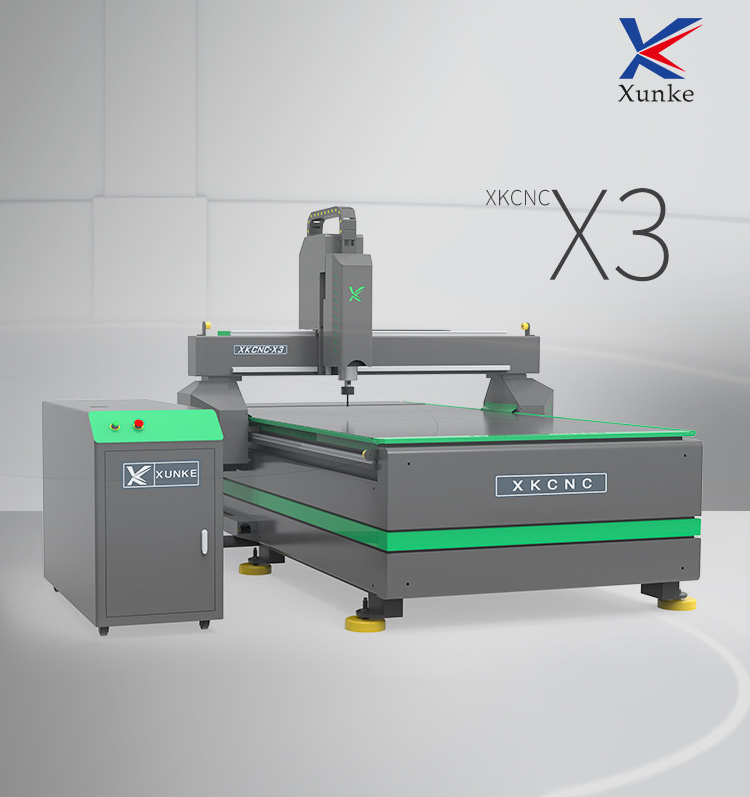

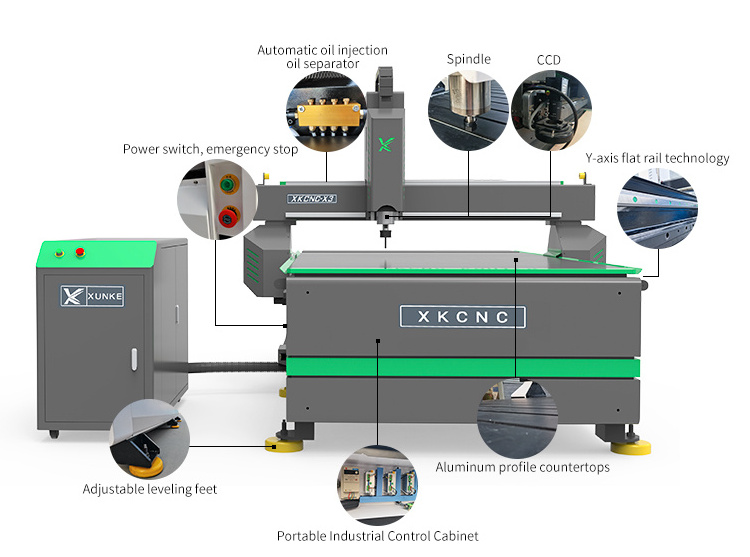

Xk-X3 CNC Router main components are:
machine tool host, control system, spindle, pump, inverter and so on.
This machine is mainly used for all kinds of wood materials; Aluminum, plastic; PVC, Acrylic, double color board, density board, crystal board and other advertising materials; Artificial soft marble and other non-metal and light metal material.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
4800*2600*1800mm
-
Power (kW):
-
10
-
Weight (KG):
-
1200
-
Product name:
-
Cnc Router Machine
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Working area:
-
1300x2500mm
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Motor:
-
Servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Vacuum Table+T-solt Table
-
Keywords:
-
Cnc Wood Router Engraver
-
Inverter:
-
Taiwan Delta Inverter
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
4800*2600*1800mm
-
Power (kW):
-
10
-
Weight (KG):
-
1200
-
Product name:
-
Cnc Router Machine
-
Spindle:
-
3/4.5/5.5kw/6kw Spindle
-
Working area:
-
1300x2500mm
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Motor:
-
Servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Vacuum Table+T-solt Table
-
Keywords:
-
Cnc Wood Router Engraver
-
Inverter:
-
Taiwan Delta Inverter
Products Description
Specification

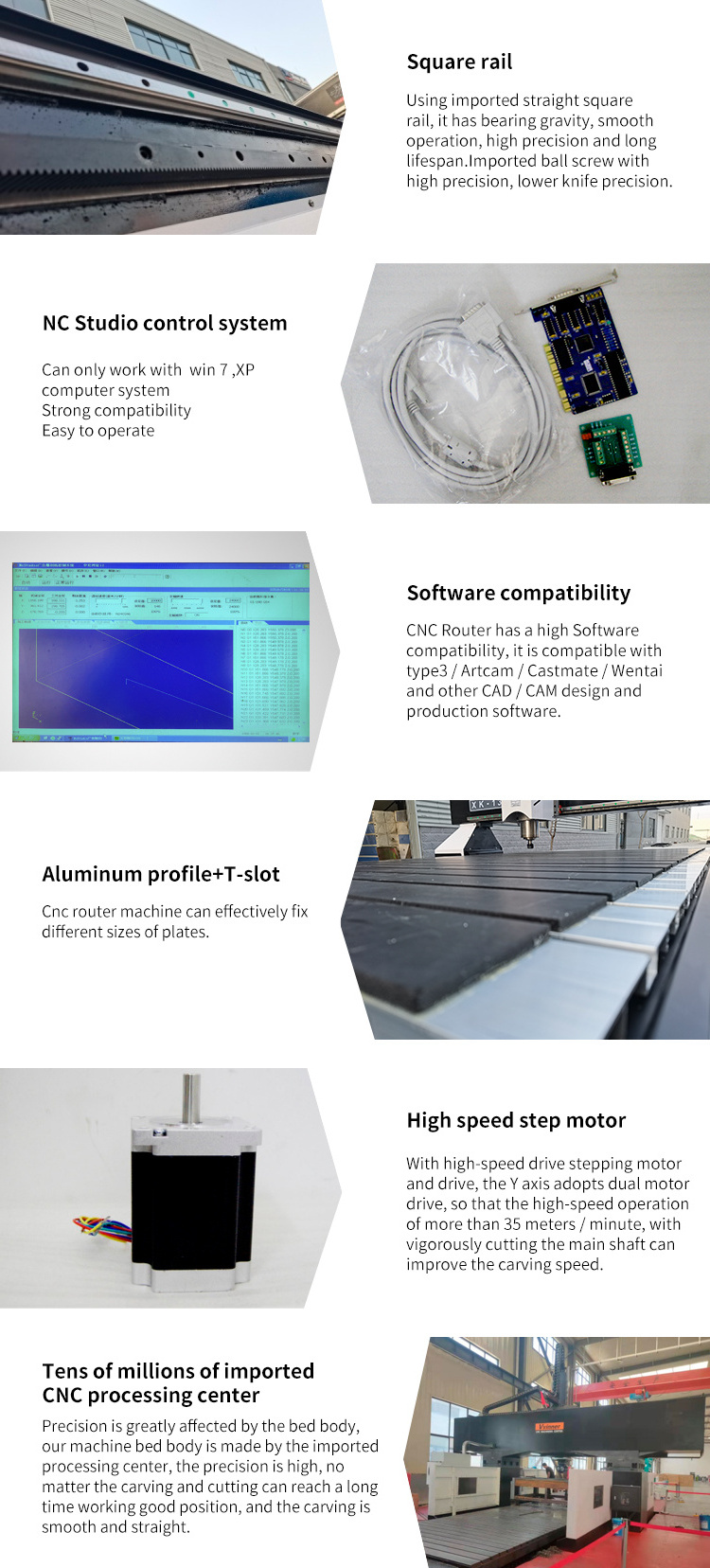

1325 cnc router is equipped with:
^High quality square rail and rack
^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor
^High quality square rail and rack
^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor
Product Paramenters
|
No.
|
Model
|
Parameter
|
Unit
|
|
1.
|
Working area
|
2500x1300x200
|
mm
|
|
2.
|
X axis
|
1300
|
mm
|
|
3.
|
Y axis
|
2500
|
mm
|
|
4.
|
Z axis
|
200
|
mm
|
|
5.
|
X,Y positioning accuracy
|
±0.05/1000mm
|
mm
|
|
6.
|
X,Y repeat positioning accuracy
|
±0.03/1000mm
|
mm
|
|
7.
|
Max running speed
|
25
|
m/min
|
|
8.
|
Weight
|
850
|
kg
|
|
9.
|
Table max load
|
400
|
kg
|
|
10.
|
Machine size(LxWxH)
|
3200×2050×1750
|
mm
|
|
11.
|
Control system
|
NC studio
|
|
|
12.
|
Whole machine power
|
≥4.5
|
kw
|
|
13.
|
Voltage
|
380v/220v 50HZ
|
|
Quality control
Our company has six steps to guarantee the machine quality, from the start to the end. Machine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use precise instrument to measure the precision of every part, and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.
Application
1325 CNC Routers are computer-controlled engraving/milling/cutting machines. They can be used in the production of various different items, such as furniture, cabinet, signboards, wood panels, wooden frames, door carvings, prototyping & modeling, musical instruments, art crafts, and so on. It can also cut materials which are used widely in advertising industry like acrylic, PVC, MDF, double colors board, plywood, etc.
