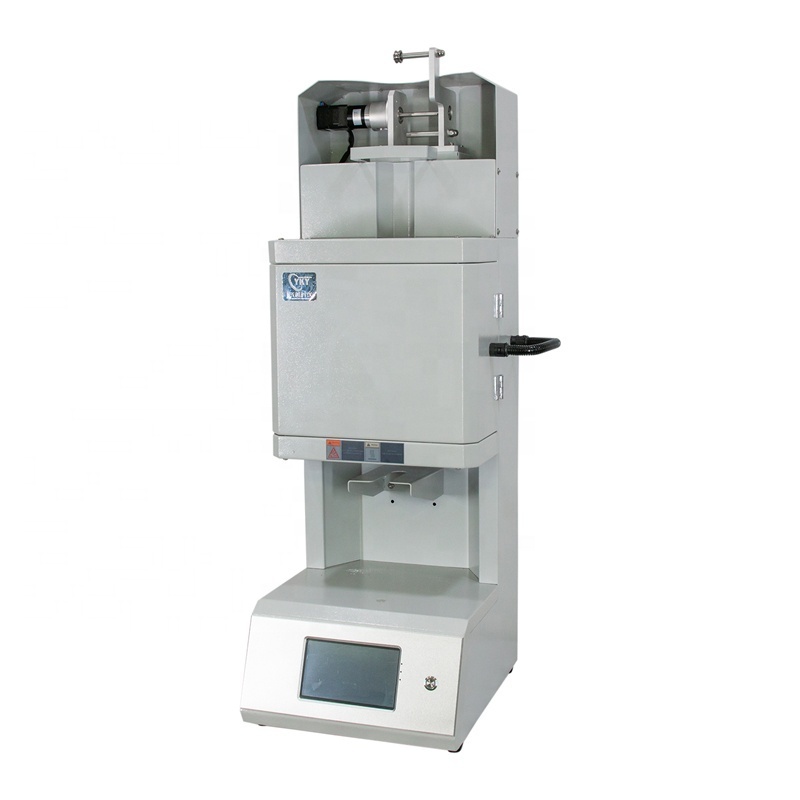

CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH
CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH

CY-Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C - CY-1200X-S-VT-BMGH

FOB Reference Price: Get Latest Price
≥1 Pieces
US $4000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan, China
Name:
Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism
Working Voltage:
110V AC or 220V selectable
Max. Power Consumption:
1.5 KW
Max. heating temperature:
1200°C
Continuous working temperature:
1100°C
Power:
50W, 110V - 240V C
Compliance:
CE Certified

Quick Details

Warranty:
one year, One Year
Brand Name:
CYKY
Model Number:
CY-1200X-S-VT-BMGH
Place of Origin:
Henan, China
Name:
Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism
Working Voltage:
110V AC or 220V selectable
Max. Power Consumption:
1.5 KW
Max. heating temperature:
1200°C
Continuous working temperature:
1100°C
Power:
50W, 110V - 240V C
Compliance:
CE Certified
Product Description
SPECIFICATIONS:

Vertical Two Zone Tube Furnace


  • Compact two zones split vertical tube furnace.
  • Working Voltage: 110V AC or 220V selectable
  • Max. Power Consumption: 1.5 KW
  • Two Heating Zone:  100 mm L for each Zone  , 200 mm L in total
  • Max. heating temperature: 1200°C
  • Continuous working temperature: 1100°C
  • Two programmable digital temperature controllers which control two heating zone independently.
  • Max. Temperature gradient:   1ºC/Cm
    • Finding suitable thermal gradient is user responsibility
    • Adjusting two heating zone's temperature can create different thermal gradient profile
    • Adjusting furnace opening diameter also can change thermal gradient
  • Quartz tube is included with sealed flange.
  • Click Pic left to see detail specs of the dual zone furnace

Hanging wire

  • Three sets of Ni-SShanging wire are included (pic to the left). Max. working temperature is 800C.
  • Thin hanging wire goes through the top flange.  Positive inert gas can keep processing tube under controlled atmosphere.
  • For air sensitive material,  sample shall be sealed in a small quartz tube with pre-vacuumed as Pic below right
Motor and C ontroller


  • 6"L x 4"W Touch Screen Unit is built in controlling DC motor rotating and wire traveling speed
  • Wire descending speed  is programmable within 3 segments.
  • Descending speed range :  1-500 um/sec adjustable with accuracy of +/- 0.05%
  • Lower speed range is available upon request at extra cost
  • Total stoke length: 450mm
  • High-quality DC motor is installed for rotating hanging wire for at extra cost and pulling up
  • Power:  50W,  110V - 240V C
Product Dimensions 520mm(L) x 430mm(W) x 1100 mm(H)
Compliance
  • CE Certified
  • NRTL certification is available upon request at extra cost
Warranty
  • One Year limited warranty with lifetime support
  • Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty
Application Notes
  • In order to get better film coating, the substrate shall be treated by plasma cleaner
Net Weight 105 kg (230 lbs)
Shipping Weight 137 kg (300 lbs)
Shipping Dimensions 48"(L) x 45"(W) x 70"(H)
