Quick Details
-
Brand Name:
-
AOYI
-
Model Number:
-
HN-DP3-VM
-
Supply Voltage:
-
220V(85% to 110%)
-
Operating Temperature:
-
0℃ to 40℃
-
Dimensions:
-
98 x 50 x 7 (mm)
-
Measure Precision:
-
±0.5% ±1Word
-
Application Environment:
-
0℃ to 40℃
-
Power Loss:
-
3.5W
-
Relative Humidity:
-
<85%
Quick Details
-
Measuring Range:
-
for customization
-
Accuracy Class:
-
0.5 class
-
Place of Origin:
-
China
-
Brand Name:
-
AOYI
-
Model Number:
-
HN-DP3-VM
-
Supply Voltage:
-
220V(85% to 110%)
-
Operating Temperature:
-
0℃ to 40℃
-
Dimensions:
-
98 x 50 x 7 (mm)
-
Measure Precision:
-
±0.5% ±1Word
-
Application Environment:
-
0℃ to 40℃
-
Power Loss:
-
3.5W
-
Relative Humidity:
-
<85%
Product Description
installation method
:

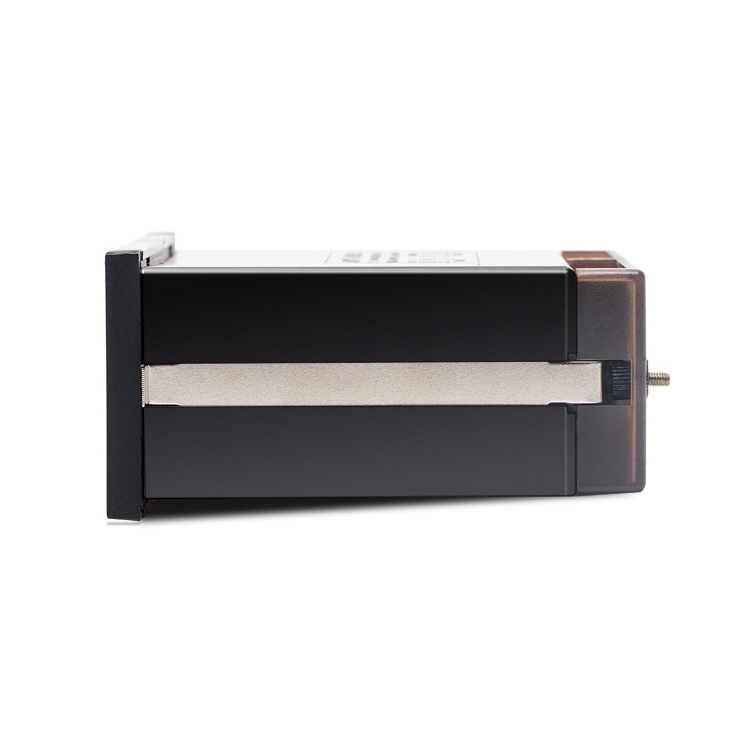

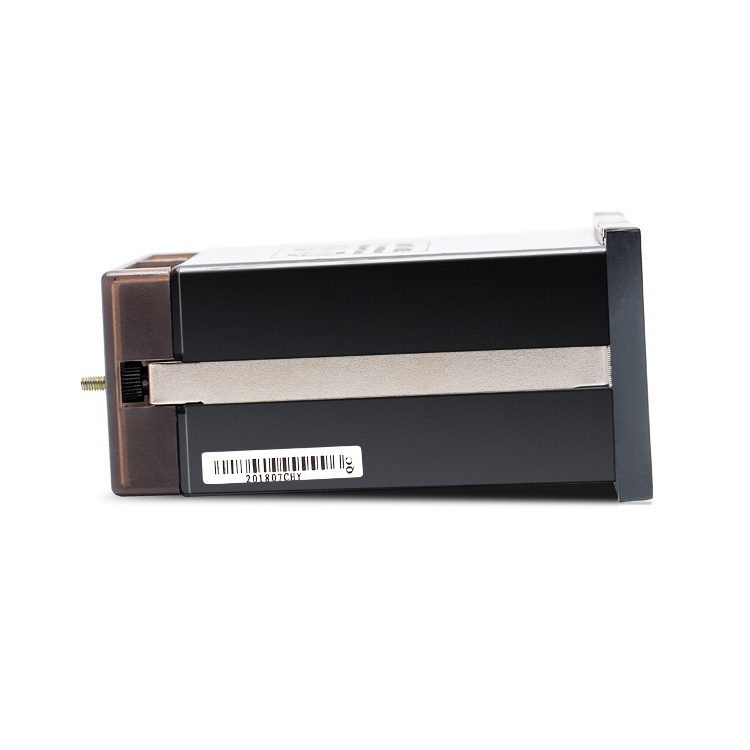

according to the appearance of instrument,select the corresponding installation hole size in the above table,open a hole on the installation screen,insert the instrument into the hole,put two clamping parts into the clamping groove of the instrument shell,and then push them by hand(if there are tightening screws,tighten them.)
wiring and terminal instructions
:

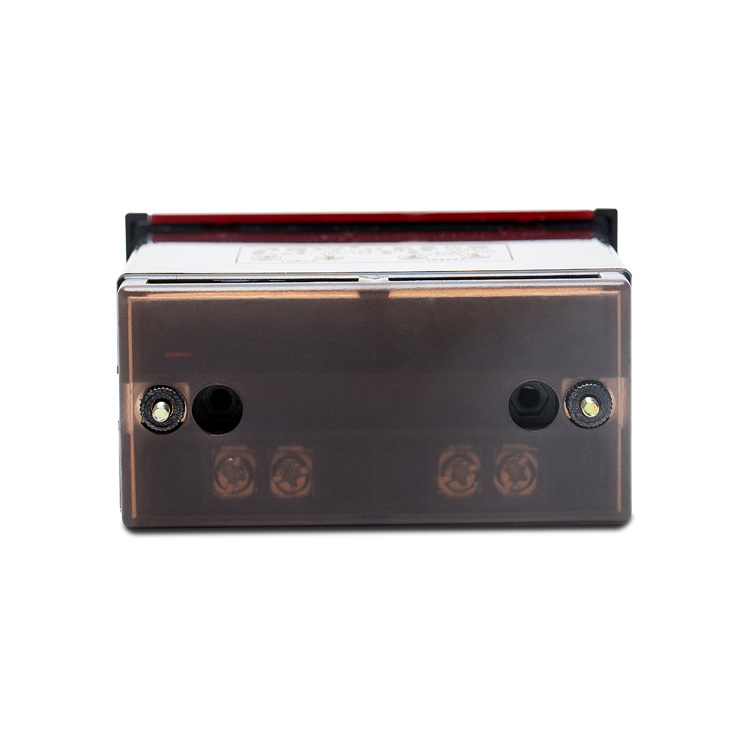

INPUT is the input terminal of measuring signal,POWER is working power terminal,and if it is inconsistent with the enclosure wiring diagram,please refer to the enclosure wiring diagram.
1 This series of instruments has the function of the external zero compensation.When the meter is opened(or pried open),only the front cover of the meter will see potentiometer marked with zero-adjustment or ZERO.This potentiometer can adjust the room temperature.The current and voltage meter shall be customized for this function.
