Quick Details
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.2 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DWIN CNC ROUTER MACHINE
-
Voltage:
-
AC250V/50Hz
-
Dimension(L*W*H):
-
300mm*400mm*150mm
-
Weight (KG):
-
60
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X Y working area:
-
300*400mm
-
Max. feeding height:
-
80mm
-
Max. working speed:
-
4-6m/min
-
Max. rapid travel rate:
-
5-8m/min
-
Command language:
-
G-code, ugg,mmg,plt
-
Spindle speed:
-
0-24000rpm/min
-
Drive system:
-
stepper
-
Repositioning positioning accuracy:
-
0.05mm
-
X,Y,Z structure:
-
ball screw(cnc 3d stone engraving machine)
Quick Details
-
Working Table Size(mm):
-
300*400
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.2 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.2 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DWIN CNC ROUTER MACHINE
-
Voltage:
-
AC250V/50Hz
-
Dimension(L*W*H):
-
300mm*400mm*150mm
-
Weight (KG):
-
60
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
X Y working area:
-
300*400mm
-
Max. feeding height:
-
80mm
-
Max. working speed:
-
4-6m/min
-
Max. rapid travel rate:
-
5-8m/min
-
Command language:
-
G-code, ugg,mmg,plt
-
Spindle speed:
-
0-24000rpm/min
-
Drive system:
-
stepper
-
Repositioning positioning accuracy:
-
0.05mm
-
X,Y,Z structure:
-
ball screw(cnc 3d stone engraving machine)
feathures
1. Y axises imported linear square orbit.
2. Three axises waterproof, dustproof structure.
3.Imported bearings, contant torque,low noise,high power water cooing spindle.
4.Taiwan transducer with stable output signals.
5.High flexility, uneasy distorted cable and imported electronic components.
6.This series routers are designed with 3D embossment engraving particulary for redwood, classiacal, funiture,high precision,high speed,can satisfy any kinds of engraving work.
7.Two axises dustproof, Gantry mode movement, whole cast structure, Strong and long lifetime ,steady working without distortion, high precision.
8.International top quality DSP handle system(OPTIONAL Nc studio SYSTEM). This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.
9.Germany import ballscrew, original packing nut,impor5t linear square orbit.1.5KW water cooling spindle motor.
10.The water cooling spindle driver adopt imported sccessaries and imported transducer, low noise, long life span, low maintenance cost.
Technical parameters

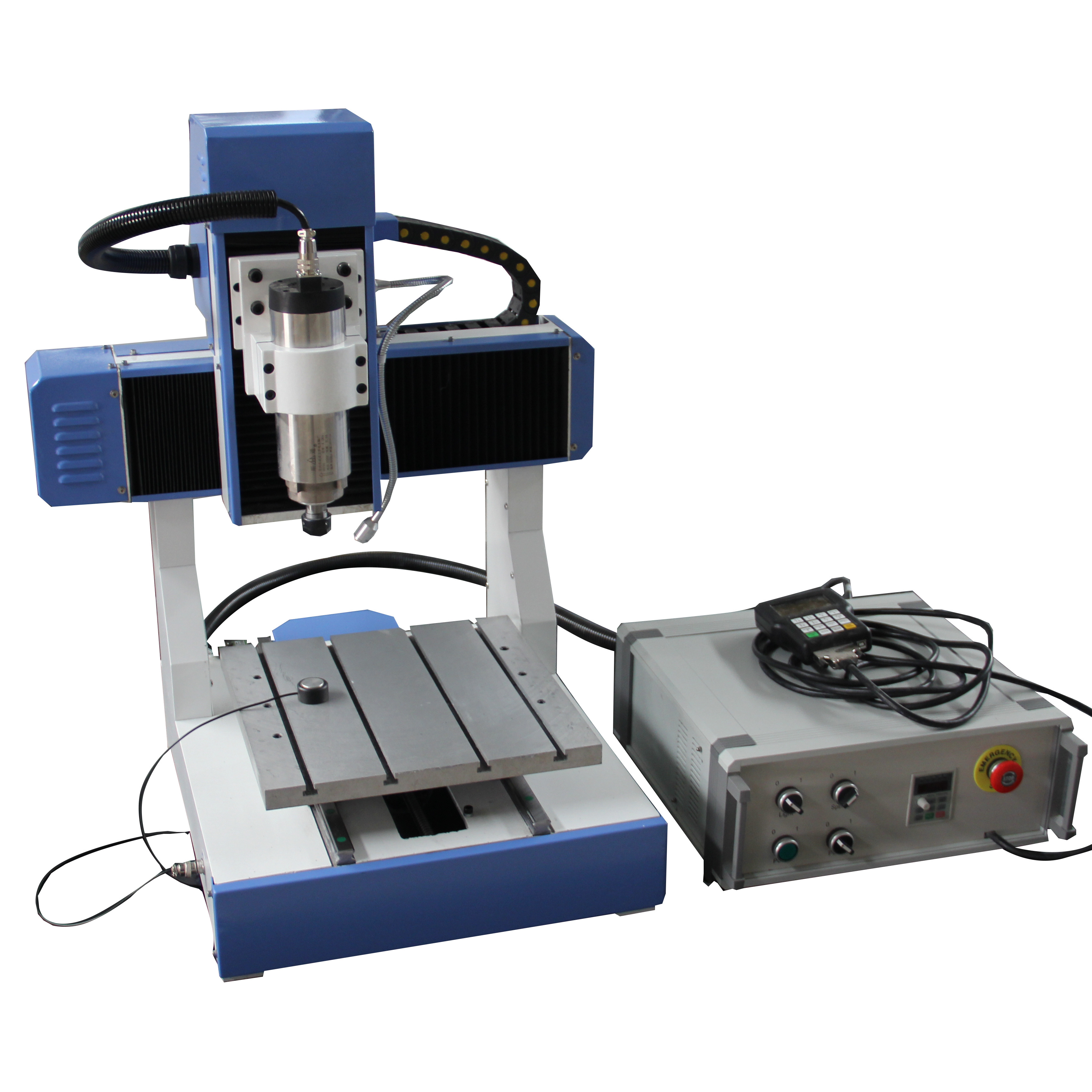

cnc 3d stone engraving machine
|
Model
|
DW-3040
|
|
|
X,Y working area
|
300mmx400mm
|
|
|
Z working area
|
150mm
|
|
|
Processing precision
|
0.05mm
|
|
|
Reposition precision
|
0.02mm
|
|
|
Table structure
|
aluminium
|
|
|
X,Y,Z structure
|
ball screw
|
|
|
Self-consuming power
|
0.6KW
|
|
|
Max ilding speed
|
24000mm/min
|
|
|
Operation command
|
G CODE
|
|
|
Max working speed
|
10000mm/min
|
|
|
Work voltage
|
AC220V/50Hz
|
|
|
Spindle power
|
800W-1.5kw
|
|
|
Spindle rotating speed
|
0-24000rpm/min
|
|
|
Drive motor
|
Stepper(ooption servo)
|
