Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
meanwell
-
Model Number:
-
LRS-100-5
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
20A
-
Out put power:
-
66W 90w 102W 105W 108W 100.8W 110.4W
-
Certification:
-
CB,CE,CCC, EAC
-
Warranty:
-
3 Years
-
Protection:
-
All-Around Protection: OVP, SCP, OLP
-
Efficiency:
-
84.5% 86.0% 88.0% 88.5% 90.0% 90.5% 91.0%
-
Working Temp.:
-
-30 ~ +70℃
-
MTBF:
-
720.6K hrs min.
-
Size:
-
129*97*30mm (L*W*H)
-
PACKING:
-
0.34Kg ; 40pcs/14.6Kg/0.92CUFT
-
output voltage:
-
3.3v 5v 12v 15v 24v 36v 48v
Quick Details
-
Output Power:
-
51 - 100W
-
Input Voltage:
-
85 ~ 264VAC 120 ~ 373VDC
-
Output Voltage:
-
12V/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
meanwell
-
Model Number:
-
LRS-100-5
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
20A
-
Out put power:
-
66W 90w 102W 105W 108W 100.8W 110.4W
-
Certification:
-
CB,CE,CCC, EAC
-
Warranty:
-
3 Years
-
Protection:
-
All-Around Protection: OVP, SCP, OLP
-
Efficiency:
-
84.5% 86.0% 88.0% 88.5% 90.0% 90.5% 91.0%
-
Working Temp.:
-
-30 ~ +70℃
-
MTBF:
-
720.6K hrs min.
-
Size:
-
129*97*30mm (L*W*H)
-
PACKING:
-
0.34Kg ; 40pcs/14.6Kg/0.92CUFT
-
output voltage:
-
3.3v 5v 12v 15v 24v 36v 48v

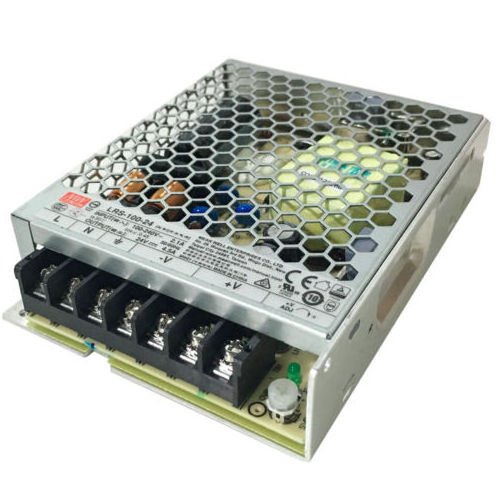

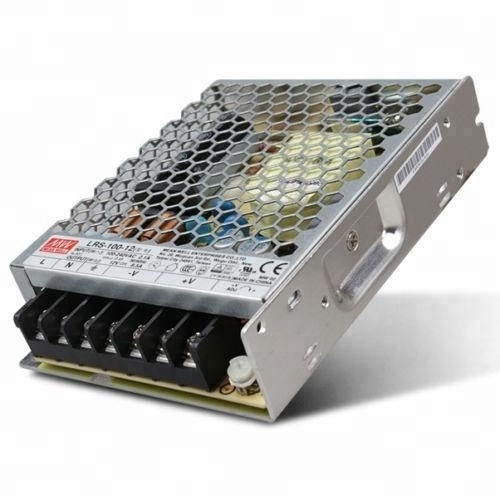

switch power supply
Meanwell 3.3v 12v 15v 24v 36v 48v regulated electrical equipment adjustable ac dc switch 5v power supply
- Universal AC input range selectable by switch
- Withstand 300Vac surge input for 5 second
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/EN 60335-1 (PD3) and IEC/EN 1558-1, 2-16 for household appliances
-
Withstand 5G vibration test
- LED indicator for power on
- No load power consumption <0.3W
- 100% full load burn-in test
- High operating temperature up to 70℃
- Operating altitude up to 5000 meters (Note. 7)
- High Efficiency, long life and high reliability
- 3 years warranty
Applications:
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- Household appliances
| Model Number | DC Voltage | Rated Output Current | Input Voltage Range | ||
| LRS-100-3.3 | 3.3v | 20A | 66W | 84.5% | |
| LRS-100-5 | 5v | 18A | 90W | 86% | |
| LRS-100-12 | 12v | 8.5A | 102W | 88% | |
| LRS-100-15 | 15v | 7A | 105W | 88.5% | |
| LRS-100-24 | 24v | 4.5A | 108W | 90% | |
| LRS-100-36 | 36v | 2.8A | 100.8W | 90.5% | |
| LRS-100-48 | 48v | 2.3A | 110.4W | 91% |
