Quick Details
-
Applicable Industries:
-
transmission
-
Cylinder:
-
6-cylinders
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weichai
-
Dimension(L*W*H):
-
1695*858*1385 mm
-
Weight:
-
1200
-
Warranty:
-
one year
-
Rated power/speed:
-
330kw/2100rpm
-
Application:
-
Marine main engine,auxiliary engine,gemerator
-
Type:
-
In line ,injection, two-circulation, water cooled
-
engine brand:
-
WEICHAI
-
certificate:
-
CCS/ZY/KR/RS
-
warranty:
-
1 year/1500hrs
-
engine power:
-
450hp
-
engine model:
-
WP12C450-21
Quick Details
-
Displacement:
-
11.596
-
Emission Standard:
-
IMO TIER 2
-
Power:
-
315 KW, 60 KW
-
Applicable Industries:
-
transmission
-
Cylinder:
-
6-cylinders
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weichai
-
Dimension(L*W*H):
-
1695*858*1385 mm
-
Weight:
-
1200
-
Warranty:
-
one year
-
Rated power/speed:
-
330kw/2100rpm
-
Application:
-
Marine main engine,auxiliary engine,gemerator
-
Type:
-
In line ,injection, two-circulation, water cooled
-
engine brand:
-
WEICHAI
-
certificate:
-
CCS/ZY/KR/RS
-
warranty:
-
1 year/1500hrs
-
engine power:
-
450hp
-
engine model:
-
WP12C450-21
Product Description

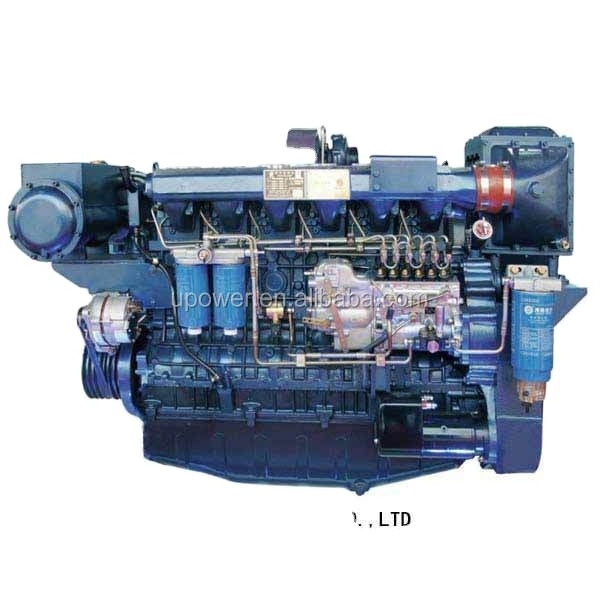

WD618 series marine diesel engine is based on the proven technology of Steyr series diesel engine, the newly developed marine diesel engines with a larger displacement and torque reserves
Weichai Steyr series diesel engine annual output of more than 250,000,
WD618 series marine engines are one of the large displacement speed marine diesel engines on the market, the most stable and mature
Weichai Steyr series diesel engine annual output of more than 250,000,
WD618 series marine engines are one of the large displacement speed marine diesel engines on the market, the most stable and mature
| Type |
In-line, four stroke
injection |
Total displacement(L) | 11.596 |
| number of cylinders | 6 | Compressure ratio | 17:1 |
| bore(mm) | 126 | Ingnition mode | 1-5-3-6-2-4 |
| stroke(mm) | 155 | The smoke(FSN) | ≤1.0 |
| intake mode |
turbocharged
and intercooled |
Noise(dB(A)) |
≤108
|
| rated power(Kw/ PS ) | 180/ 245 -294/ 400 | Overhaul period | 10000 |
| rated speed(r/min) | 1500-2150 | net weight(kg) | 1100 |
| Fuel consumption(g/kW.h) | ≤198 | Usage |
Marine engines and
fixed power |
| Oil consumption(g/kW.h) | ≤0.5 |
