Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wuhan Especial Optic
-
Model Number:
-
Customization
-
Product name:
-
Sapphire crystal glass
-
Transmit region:
-
0.15-5um
-
Size:
-
5-300mm
-
Dimension Tolerance:
-
±0.2mm
-
Surface quality:
-
60/40, 40/20
-
Flatness:
-
2 Lambda-Lambda/4
-
Parallelism:
-
< 3 arcmin
-
Clear Aperture:
-
90%
-
Bevel:
-
Protective Bevel
-
Coating:
-
AR coating, broadband AR coating
-
Certification:
-
ISO9001
Quick Details
-
Use:
-
Optical
-
Structure:
-
Flat
-
Shape:
-
Spherical, rectangular
-
Warranty:
-
6 months
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wuhan Especial Optic
-
Model Number:
-
Customization
-
Product name:
-
Sapphire crystal glass
-
Transmit region:
-
0.15-5um
-
Size:
-
5-300mm
-
Dimension Tolerance:
-
±0.2mm
-
Surface quality:
-
60/40, 40/20
-
Flatness:
-
2 Lambda-Lambda/4
-
Parallelism:
-
< 3 arcmin
-
Clear Aperture:
-
90%
-
Bevel:
-
Protective Bevel
-
Coating:
-
AR coating, broadband AR coating
-
Certification:
-
ISO9001
Product Description

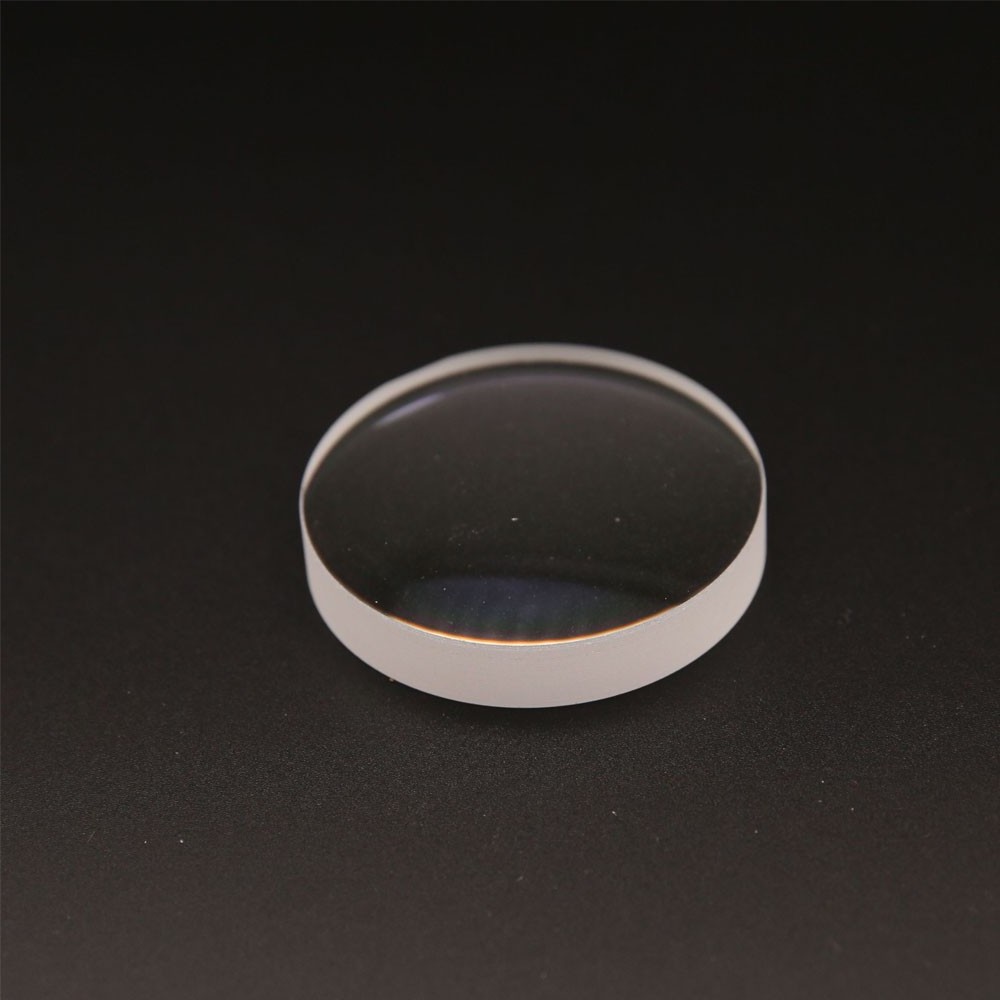

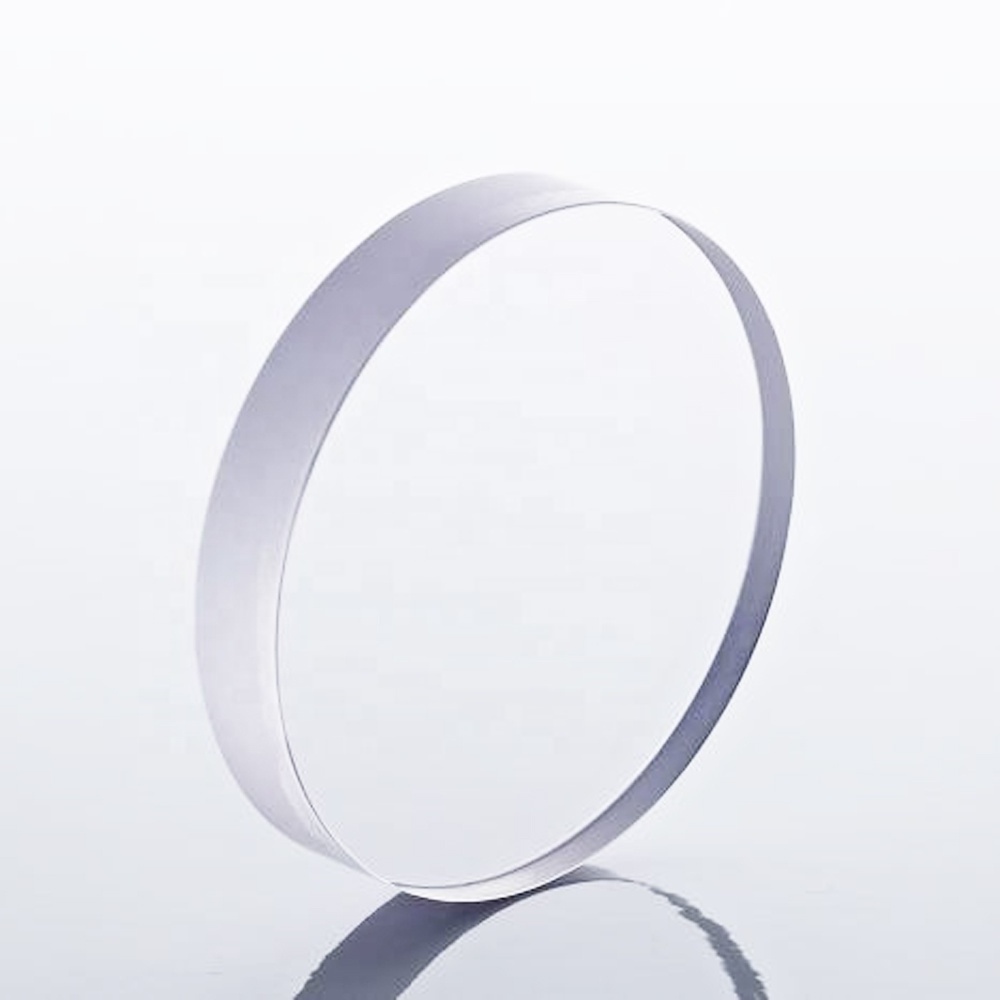

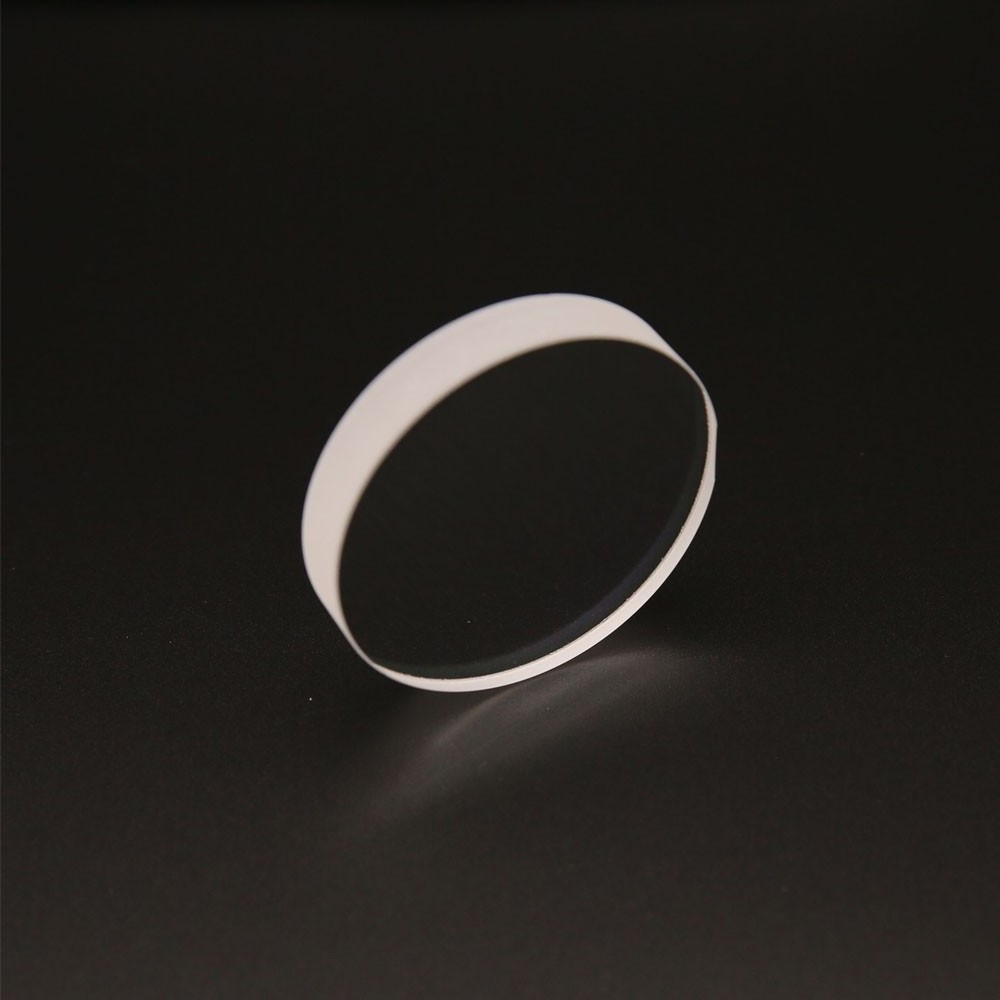

Optical windows are typically fabricated from two flat, or commonly referred to as plano, polished surfaces that are optically transparent and intended to separate, seal, or otherwise protect other components. The double-sided manufacturing process yields exceptional parallelism and transmitted wavefront making it ideal for visible windows in industrial and biomedical applications, as well as IR windows in infrared and military/defense applications.
Sapphire could trasmit wide wavelength region ranged from 150nm to 5um. Due to the high refractive index, Sapphire is also widely used for making prisms and ball lenses. Let me know the specs for your optics, maybe we have similar ones in stock.
In addition, Sapphire is very hard and duarable, has very high resistance to scratch. Only less harder than diamond. If your application needs optics in harsh enviroment, we strongly advis Sapphire.
|
|
Standard
|
High Pricision
|
|
||
|
Material
|
Si, Ge, ZnS, ZnSe, CaF2, MgF2, Sapphire
|
|
|
||
|
Size
|
5mm-300mm
|
5mm-300mm
|
|
||
|
Size Tolerance
|
±0.1mm
|
±0.02mm
|
|
||
|
Clear Aperture
|
≥90%
|
95
%
|
|
||
|
Surface Quality
|
60/40
|
20/10
|
|
||
|
Centration
|
3'
|
1'
|
|
||
|
Focal Length Tolerance
|
±2%
|
±0.5%
|
|
||
|
Coating
|
Uncoated, AR, BBAR, Reflective
|
|
|
||
Our Company
Wuhan Especial Optic established in 2012, compliance with ISO 2009.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.
In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.
