Quick Details
-
Vertical Travel(mm):
-
0-3200mm
-
Horizonal Travel(mm):
-
0-3200mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QJAR, EVS
-
Weight:
-
300 kg
-
Dimension(L*W*H):
-
customized
-
Power:
-
customized
-
keyword:
-
welding robot
-
Degree of freedom:
-
6 axis, 4 axis
-
Maximum reaching distance:
-
570mm~3700mm
-
Robot body weight:
-
30kg~300kg
-
Application:
-
Mechanical processing , automotive component, furniture,
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
work place:
-
Mechanical processing , automotive component, furniture,
Quick Details
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 years
-
Vertical Travel(mm):
-
0-3200mm
-
Horizonal Travel(mm):
-
0-3200mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QJAR, EVS
-
Weight:
-
300 kg
-
Dimension(L*W*H):
-
customized
-
Power:
-
customized
-
keyword:
-
welding robot
-
Degree of freedom:
-
6 axis, 4 axis
-
Maximum reaching distance:
-
570mm~3700mm
-
Robot body weight:
-
30kg~300kg
-
Application:
-
Mechanical processing , automotive component, furniture,
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
work place:
-
Mechanical processing , automotive component, furniture,

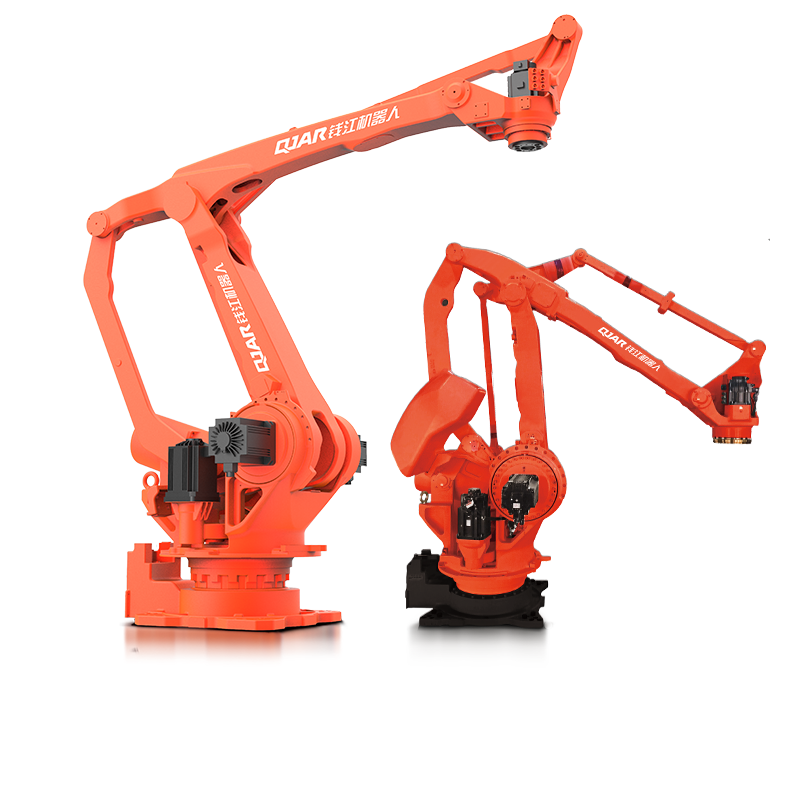

High Stability Industrial Welding Robot Automated Welding Equipment Tig Mig Mag Welding Intelligent Welding System

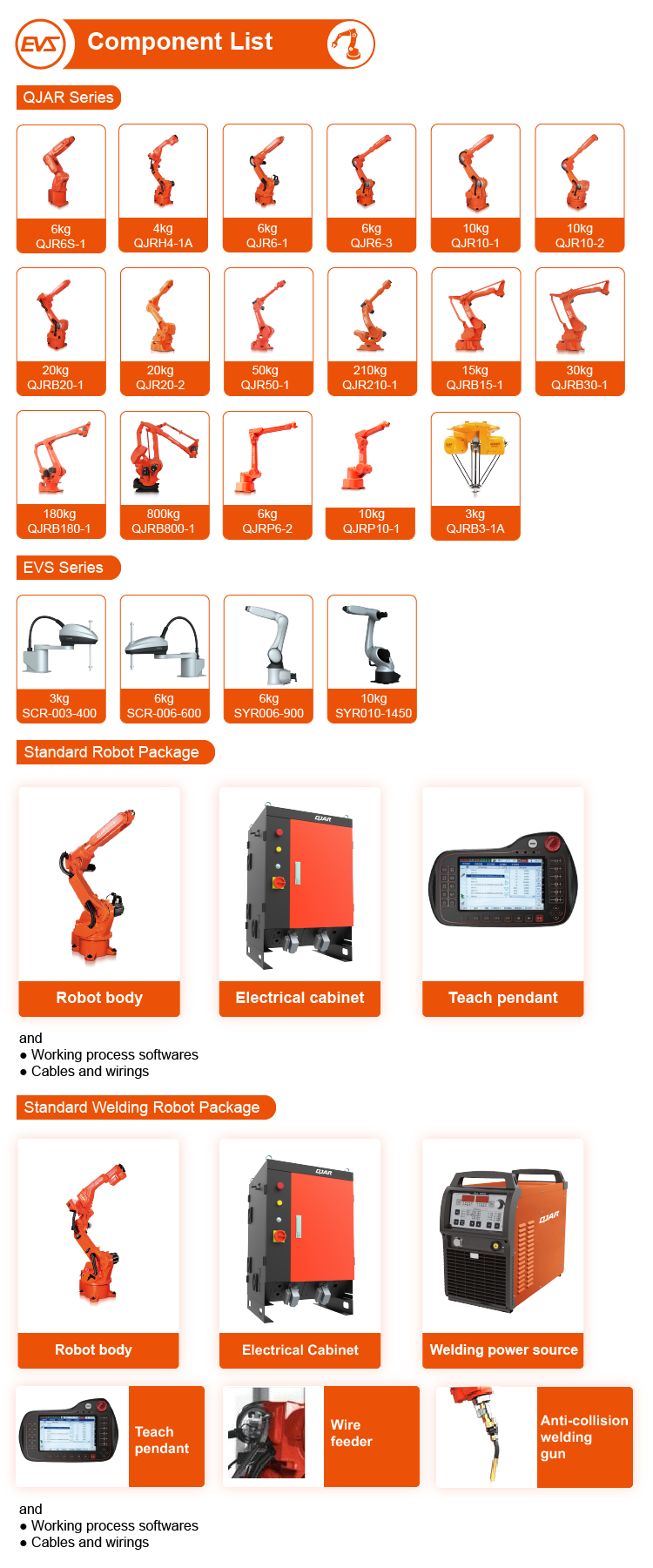

Component list

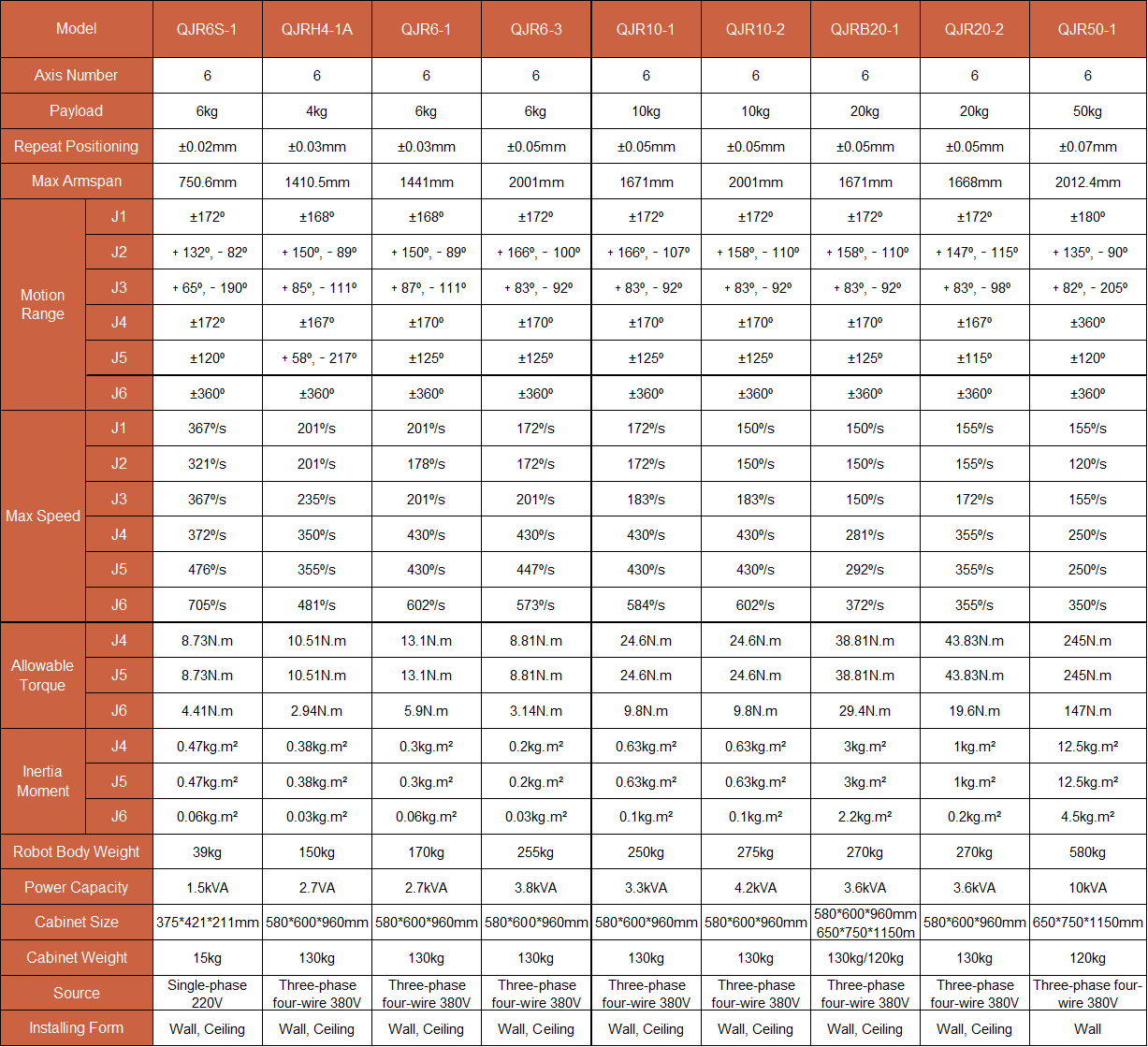

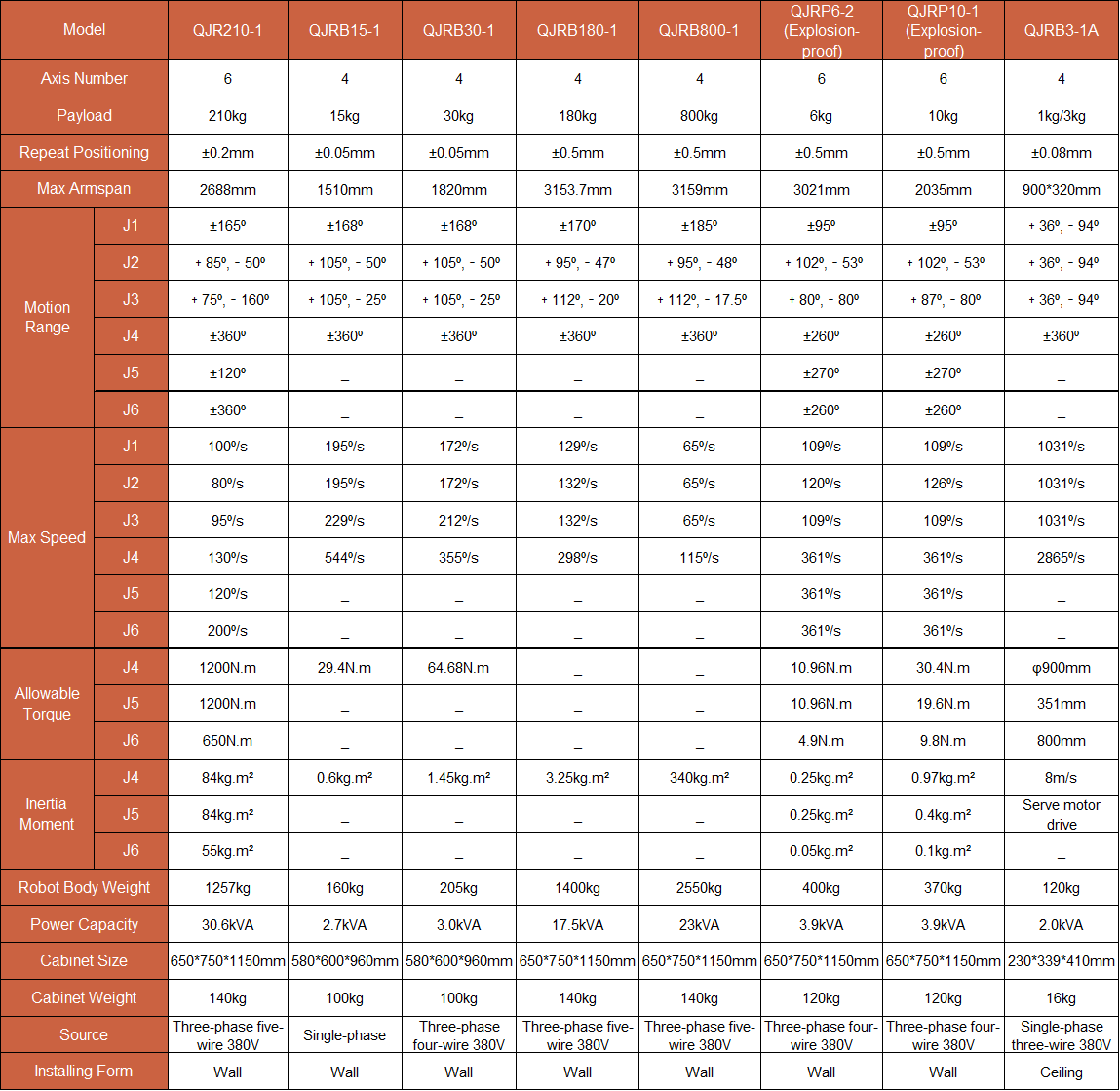

Product Paramenters
QJAR Series
EVS Series
Robot Controller
Controller Parameters
|
Product
|
Specification
|
|
|
|
|||
|
Hardware Structure
|
Intel 4-core
|
|
|
|
|||
|
System
|
Real-time Linux operating system
|
|
|
|
|||
|
Memory
|
Max to 8G
|
|
|
|
|||
|
Storage
|
Support SATA storage
|
|
|
|
|||
|
Communication Port
|
USB3.0 (4), 1000M Ethernet(2), EtherCAT(1), DIO(8), HDMI(1), RS232(2)
|
|
|
|
|||
|
EtherCAT Bus
|
Communication Cycle 1ms
|
|
|
|
|||
|
|
Support max to 32 axes
|
|
|
|
|||
|
|
Support extendable IO
|
|
|
|
|||
|
Power Input
|
DC 12V/3A
|
|
|
|
|||
|
EMC Class
|
Industrial level III
|
|
|
|
|||
Product Applications
Basic Parameters of the Electrical Cabinet
|
Power Supply
|
Three-phase 380V±10%
|
|
|
|
|||
|
Power Capacity
|
4.5KW
|
|
|
|
|||
|
Dimension
|
580×600×960mm
|
|
|
|
|||
|
Temperature
|
0~45°C
|
|
|
|
|||
|
Humidity
|
10~90%RH
|
|
|
|
|||
|
Operating System
|
QJAR System
|
|
|
|
|||
