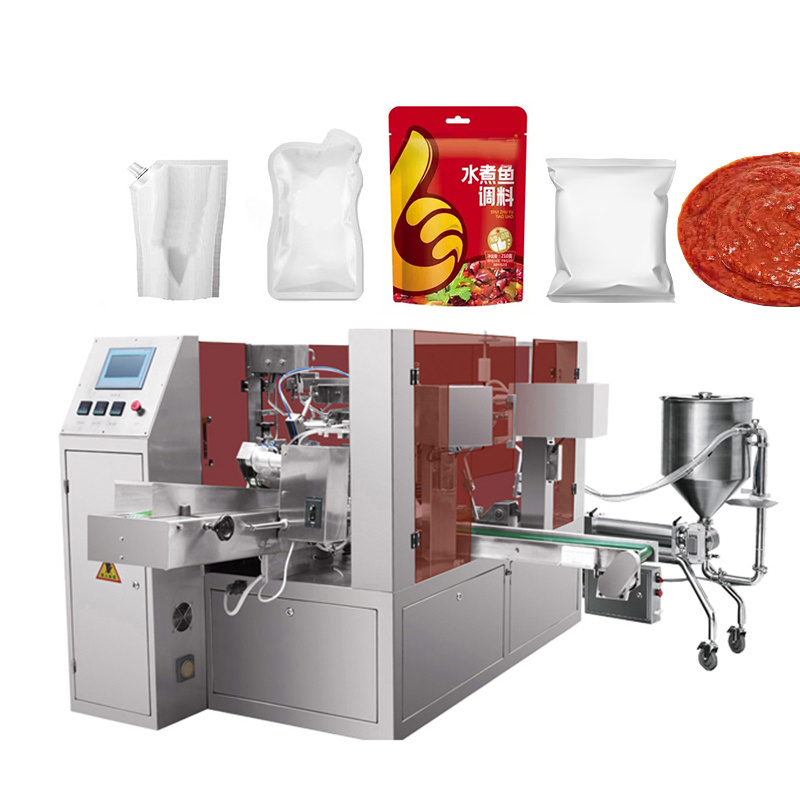

Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine
Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine

Multifunction Automatic pineapple hair dyes filling sealing machine juice packing machine hookah tobacco filling machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $23000
≥2 Sets
US $21000
≥3 Sets
US $18000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
1600
Voltage:
220V/380V
Place of Origin:
Zhejiang, China
Brand Name:
Mingrui
Dimension(L*W*H):
1710*1505*1640mm
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Material:
Stainless steel
Factory:
YES
Payment item:
TT30 % down,70% balance before shipping
Installation:
7 days/engineer with trainning
customization:
yes

Quick Details

Function:
FILLING, Wrapping, Labeling, COATING, Sealing
Packaging Type:
Stand-up Pouch, Bags, Film, Pouch
Packaging Material:
Plastic, Paper
Weight (KG):
1600
Voltage:
220V/380V
Place of Origin:
Zhejiang, China
Brand Name:
Mingrui
Dimension(L*W*H):
1710*1505*1640mm
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Material:
Stainless steel
Factory:
YES
Payment item:
TT30 % down,70% balance before shipping
Installation:
7 days/engineer with trainning
customization:
yes
Product Description
Specification
Specification for MingRui Rotary packing machine
Model
MR8-200
MR8-260R

MR8-300R
MR8-400R
Bag Size
Width:100-200mm,
Length:100-400mm
Width:120-260mm, Length:120-350mm
Width:180-300mm
Length:180-400mm
Width:280-400mm, Length:280-650mm
Filling Volume
5-2500g (Depending on type of products)
Max 5kgs
Capacity
30-60bags/min

(The speed depends on products and packaging material )
25-45bags/min (For zipper bag)
30-60bags/min

(The speed depends on products and packaging material )
25-45bags/min (For zipper bag)
30-40bags/min

(The speed depends on products and packaging material )
20-30bags/min

(The speed depends on products and packaging material )
Package Accuracy
Error≤±1%
Total Power
4 KW (220V/380V,3PH,50HZ
Demension
1460×2500×1400mm
1710x1505x1640mm
2460×1830×1460mm
2520×1750×1600mm
Weight
1700KGS
Main Standard Accessories
1. Bag feeding system 2. PLC control system 3. Bag opening device 4. Filling system
5. Cleaning system 6. Hot
sealing control system 7. Output system
Main Optional Equipment
Material metering and filling machine, working platform, check weigher, material elevator, finished product conveyor, metal detector.
Applications
Widely used Liquid Paste Packaging.
1.Thin Liquid: Detergent,fruit juice, drinks,miller wine, soy sauce, rice vinegar, etc.
2.Thick liquid: Tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
3. Other materials , such as liquid/sauce with particles .

Suitable Pouch Type:
All type of heat sealable performed side seal bags, block bottom bags, zip-lock bags, stand-up pouch with or without spout etc.

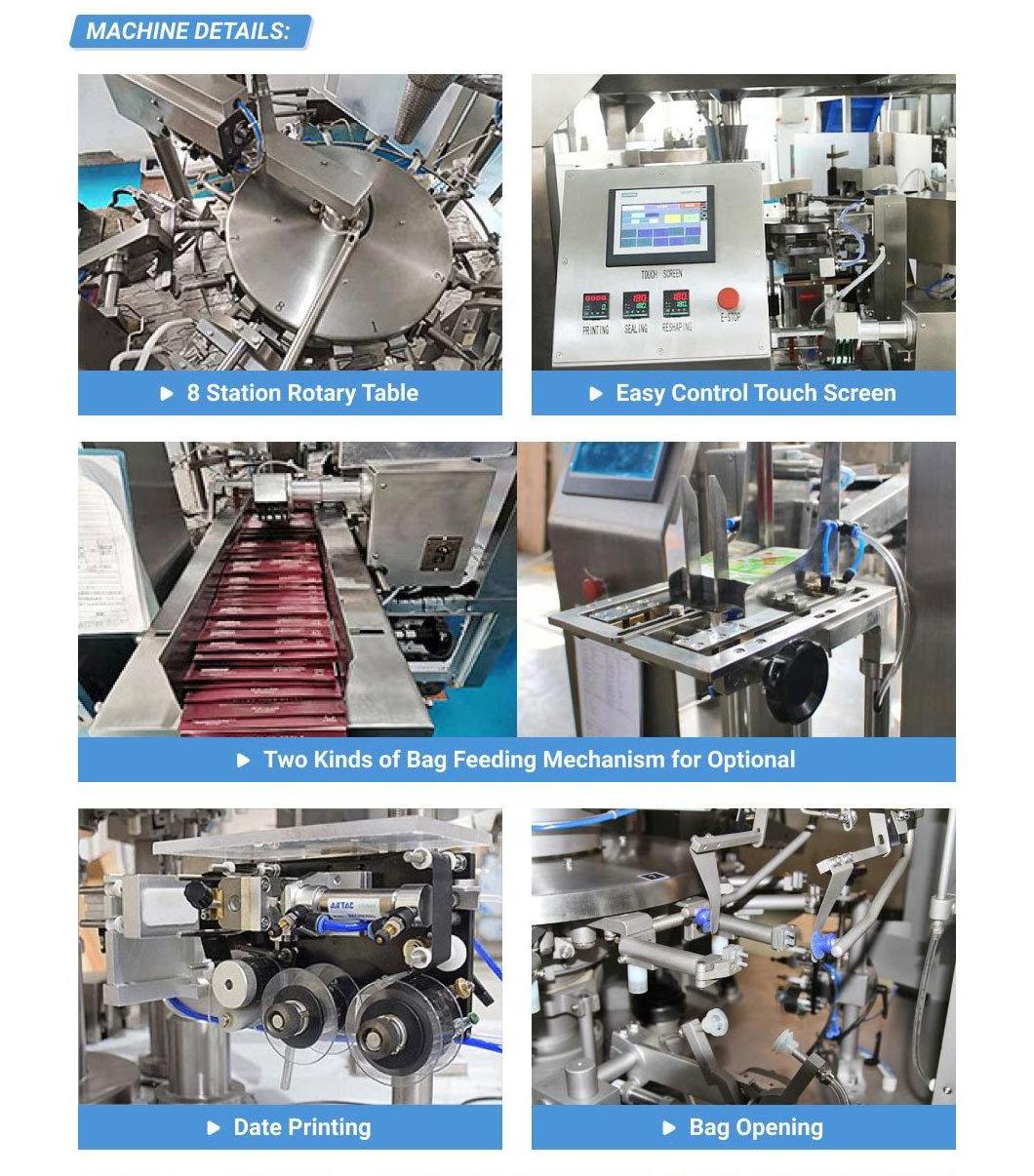

Machine Details
Features and Characteristics:
1.Suitable pouches: All kinds of size premade pouches.
2.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3.Easy to adjust: All working process in one station, more easily adjusting.
4.Frequency control: Speed can be adjusted by frequency conversion within the range.
5.High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.

Safety and Hygiene:
1.Machine alarm and stop when the inadequate air pressure.
2.Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
3.Hygienic construction, the product contact parts are adopted sus304 stainless steel.
4.Imported engineering plastic bearings, no need to oil, no contamination.
5.Oil-free vacuum pump, avoid the pollution of the production environmental.

Work Process:
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→heat sealing 1→heat sealing 2→forming and output
