Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
380
-
Dimension(L*W*H):
-
3200*2020*1250mm
-
Weight (KG):
-
1680
-
Product name:
-
cnc wood router
-
Table material:
-
Aluminium Alloy woodworking cnc router
-
Maximum feed height:
-
80mm
-
Max Engravin Speed:
-
4000-7000mm/min
-
Spindle Rotating Speed:
-
6000-24000rpm
-
Spindle cooling:
-
water cooling
-
Drive motor system:
-
step motor and step driver
-
Memory buffer (Flash):
-
128MB
-
Certifications:
-
CE,ISO 9001
-
Power(W):
-
3000
Quick Details
-
Working Table Size(mm):
-
1300*2500MM
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
380
-
Dimension(L*W*H):
-
3200*2020*1250mm
-
Weight (KG):
-
1680
-
Product name:
-
cnc wood router
-
Table material:
-
Aluminium Alloy woodworking cnc router
-
Maximum feed height:
-
80mm
-
Max Engravin Speed:
-
4000-7000mm/min
-
Spindle Rotating Speed:
-
6000-24000rpm
-
Spindle cooling:
-
water cooling
-
Drive motor system:
-
step motor and step driver
-
Memory buffer (Flash):
-
128MB
-
Certifications:
-
CE,ISO 9001
-
Power(W):
-
3000

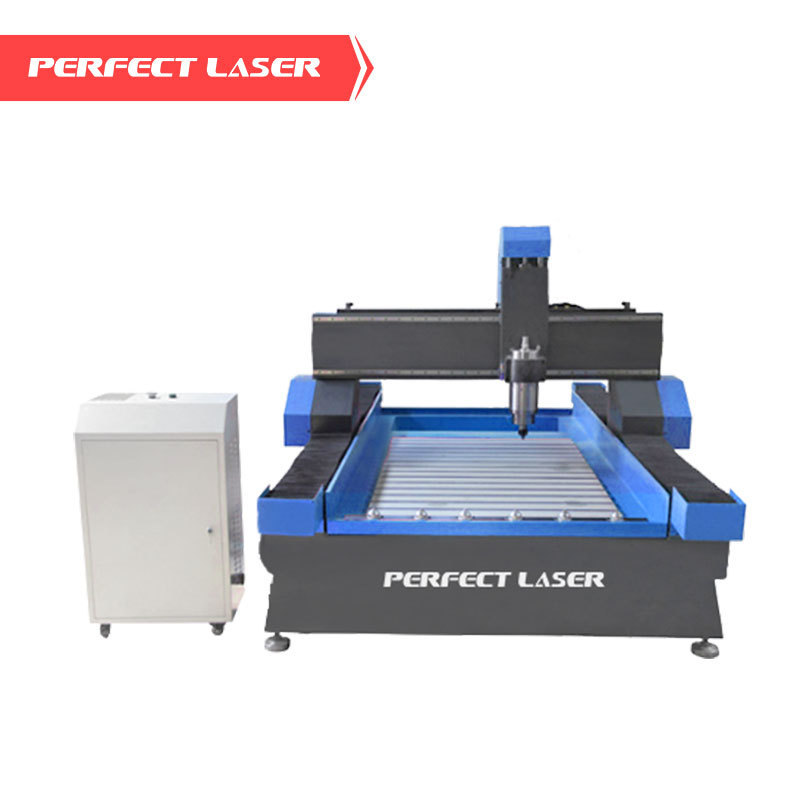

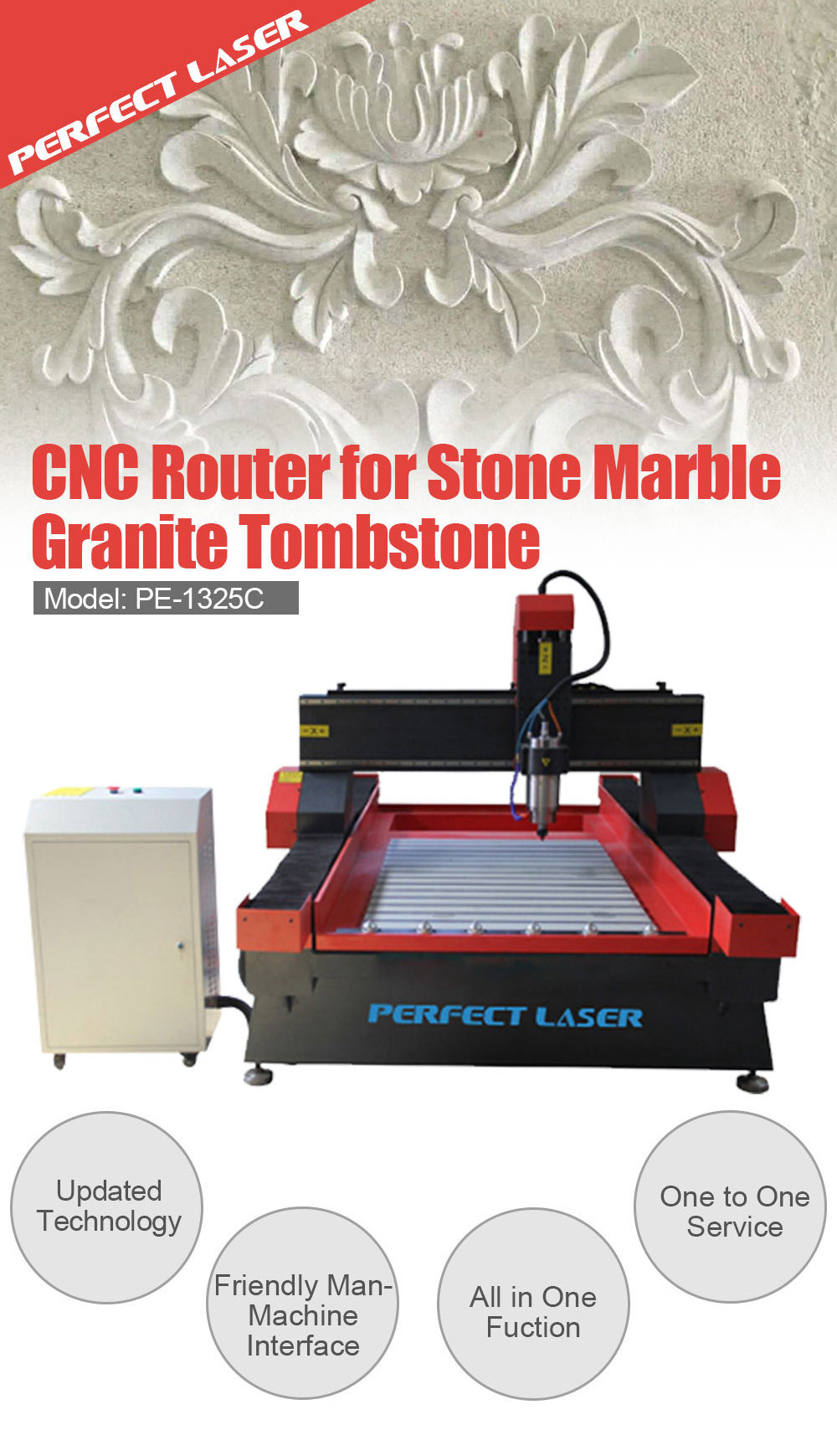

Perfect Laser 1212 2040 1325 Woodworking 3D CNC Router Stone Marble Granite Tombstone Engraving Carving Machine
(Model:PE-1325C)
Crystal: sales013(@)perfectlaser.net; Whatsapp:+86 136 5989 3728; Skype: perfectlaser013
Product Description
Product Application
Suitable industries: billboards, model industry,decoration industry, toys and gifts,furniture manufacturing, etc.
Available materials: stone, marble, granite, tombstone, acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB, copper,aluminum and various non-ferrous metals.It is also called stone engraving machine,marble engraving machine,granite engraving machine,tombstone engraving machine,engraving stone,3D engraving machine,3D CNC router engraving machine.
Available materials: stone, marble, granite, tombstone, acrylic, double color boards, plastic, wood, ABS, PVC, MDF, PCB, copper,aluminum and various non-ferrous metals.It is also called stone engraving machine,marble engraving machine,granite engraving machine,tombstone engraving machine,engraving stone,3D engraving machine,3D CNC router engraving machine.
Product Features

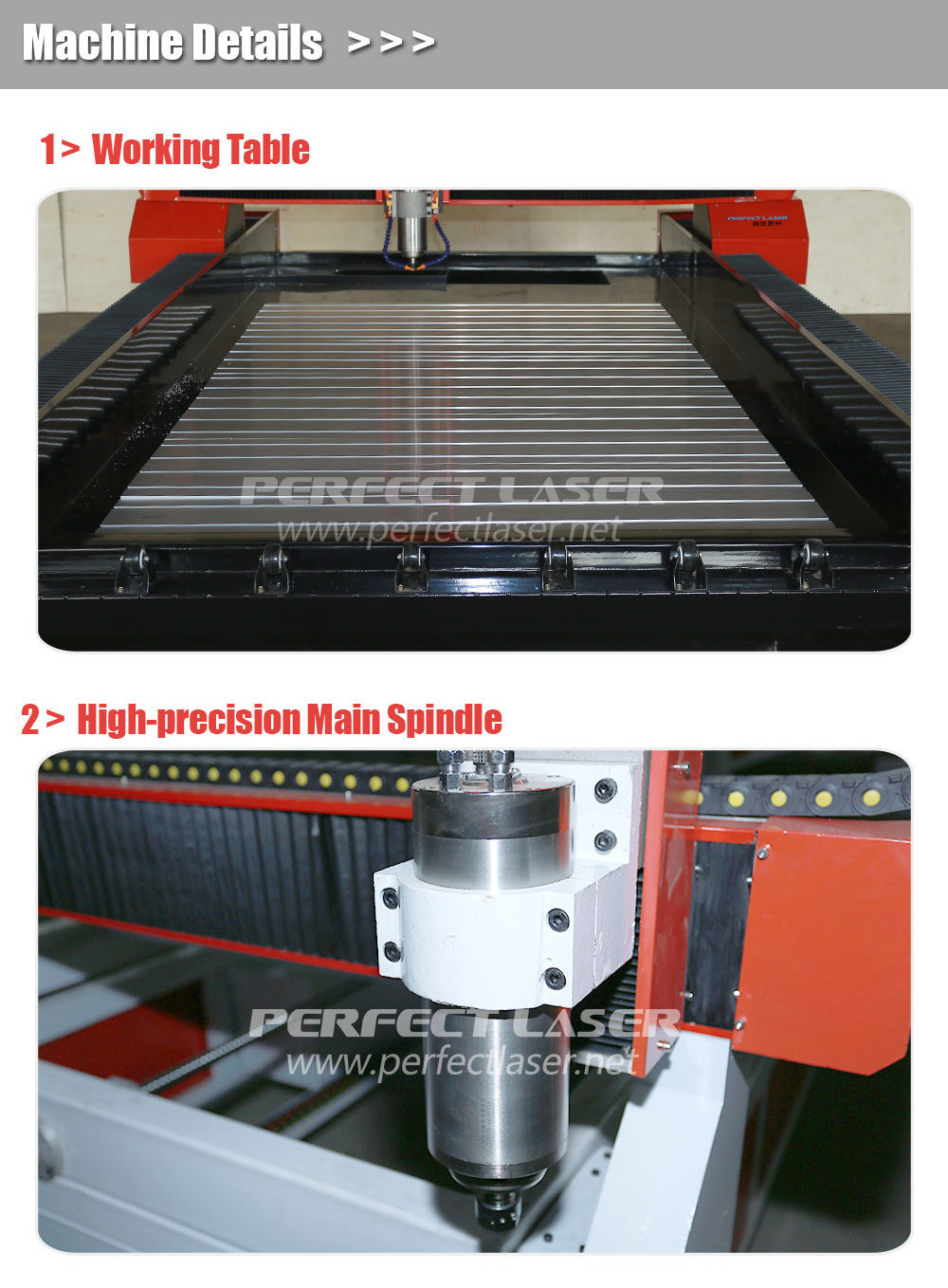

Machine Details
Technical Data
|
Model
|
PE-1325C
|
|
Working area
|
1300*2500*200mm
|
|
Machine Volume
|
3200*2020*1250mm
|
|
Main axle power rate
|
2.2/3/4.5/5.5KW(optional)
|
|
Main axle rotating speed
|
6000-24000 rpm/min
|
|
Max.Working speed
|
8000mm/min
|
|
Feeding height
|
200mm
|
|
Engraving tools
|
3.175/4/6/12.7mm
|
|
Re-positioning Accuracy
|
0.02mm
|
|
Supported File Format
|
DXF,PLT,G code,MMG,U00,NC,ENG
|
|
Power
|
AC220V(380V)/50HZ (optional:AC110V/60HZ )
|
|
Weight
|
1600 kgs
|
