Quick Details
-
Brand Name:
-
DP
-
Model Number:
-
DP-A33.1502
-
Product name:
-
Digital Microscope With LCD Screen
-
Head:
-
Trinocular Head, 30° Inclined
-
Eyepiece:
-
WF10x/20mm, Diopter Adjustable, Dia. 30mm
-
Objective lens:
-
4x, 10x, 40x(S), 100x(Oil, S)
-
Nosepiece:
-
Quadruple, Backward With Click Stops
-
Condenser:
-
Abbe Condenser N.A.1.25, Center Adjustable
-
Light Source:
-
3W LED Brightness Adjustable
-
Adapter:
-
C-Mount 1.0x
-
MOQ:
-
1 pc
-
Warranty:
-
1 year
Quick Details
-
Theory:
-
Biological Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
China
-
Brand Name:
-
DP
-
Model Number:
-
DP-A33.1502
-
Product name:
-
Digital Microscope With LCD Screen
-
Head:
-
Trinocular Head, 30° Inclined
-
Eyepiece:
-
WF10x/20mm, Diopter Adjustable, Dia. 30mm
-
Objective lens:
-
4x, 10x, 40x(S), 100x(Oil, S)
-
Nosepiece:
-
Quadruple, Backward With Click Stops
-
Condenser:
-
Abbe Condenser N.A.1.25, Center Adjustable
-
Light Source:
-
3W LED Brightness Adjustable
-
Adapter:
-
C-Mount 1.0x
-
MOQ:
-
1 pc
-
Warranty:
-
1 year
Product Description

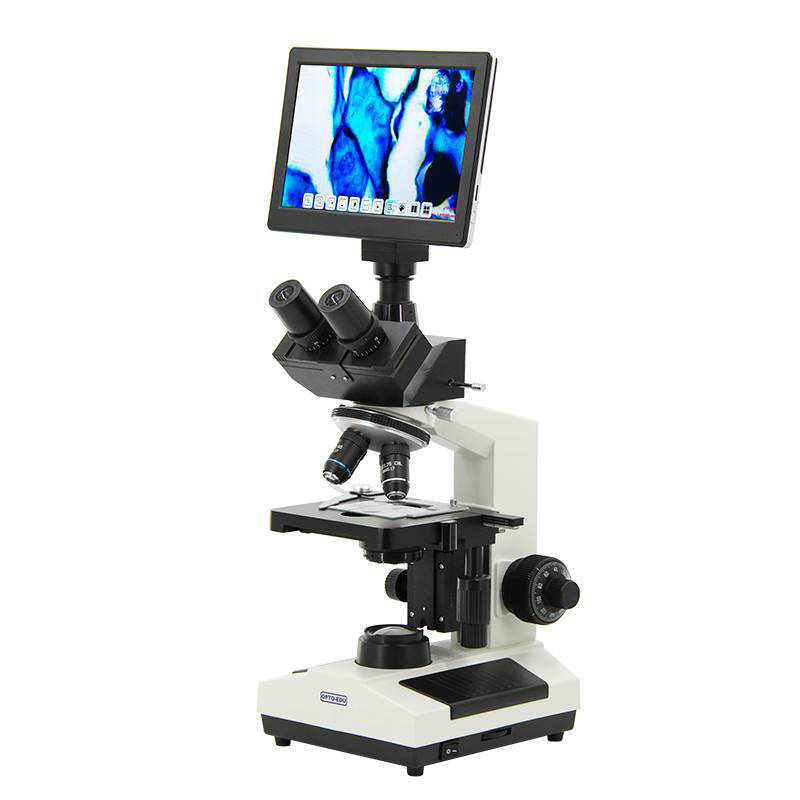

9.7'' LCD Touchscreen Digital Biological Microscope With Microscope Camera For Lab
Specifications
|
Head
|
Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
|
|
Eyepiece
|
WF10x/20mm, Diopter Adjustable, Dia. 30mm
|
|
Objective
|
High Contrast Chromatic Free
4x, 10x, 40x(S), 100x(Oil, S) |
|
Focus Knob
|
Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
|
|
Nosepiece
|
Quadruple, Backward With Click Stops
|
|
Stage
|
Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
|
|
Condenser
|
Abbe Condenser N.A.1.25, Center Adjustable
|
|
Light Source
|
3W LED Brightness Adjustable
|
|
Adapter
|
C-Mount 1.0x
|
|
Package
|
53*32.5*53.5cm/11.5Kg, 1 Set/Carton
|
9.7" LCD Pad Digital Camera
|
LCD
|
9.7" HD IPS Touch Screen With Backlight
|
|
Camera
|
5.0M 1/2.5" CMOS Digital Camera
|
|
Resolution
|
2048x1536 @15FPS
|
|
Pixel
|
2.2umx2.2um
|
|
Data Storage
|
TF Card or Built-in Memory
|
|
Data Output
|
USB2.0, HDMI, TF Card
|
|
|
5.0M .JPEG
|
|
Video
|
1080p Video Record
|
|
System
|
Android 5.1 System
|
|
|
90 Languages
|
|
|
Support Mouse + Keyboard Control
|
|
|
Support WIFI
|
|
|
Support Bluetooth
|
|
Function
|
S-Eye Software & Instruction Manual Installed
|
|
|
Mark: Point, Crosshair, Coordinate, Text
|
|
|
Length Measure:
Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point To Line Distance |
|
|
Distance Between 2 Circle Centers:
Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle |
|
|
Geometric Measure:
Line Segment Length, Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle, Concentric Circle |
|
|
Geometric Area Measure:
Polygon, Square |
|
Power
|
DC 12V/2A Power Adaptor, AC 100~240V
|
|
Size
|
Pad 238x182x12mm, Camera 40x39mm
|
