Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Grandio
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Weight (KG):
-
1800
-
Product name:
-
1325ATC CNC Router
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Keywords:
-
ATC Woodworking Cnc Router
-
Spindle:
-
9kw ATC Spindle
-
Control system:
-
Taiwan LNC Control System
-
Transmission:
-
XY-axis:rack
-
Working area:
-
1300x2500mm
-
Inverter:
-
Delta Inverter
-
Motor:
-
1500w Servo Motor
-
Frame:
-
Heavy Duty Steel Frame
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Grandio
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Weight (KG):
-
1800
-
Product name:
-
1325ATC CNC Router
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Keywords:
-
ATC Woodworking Cnc Router
-
Spindle:
-
9kw ATC Spindle
-
Control system:
-
Taiwan LNC Control System
-
Transmission:
-
XY-axis:rack
-
Working area:
-
1300x2500mm
-
Inverter:
-
Delta Inverter
-
Motor:
-
1500w Servo Motor
-
Frame:
-
Heavy Duty Steel Frame

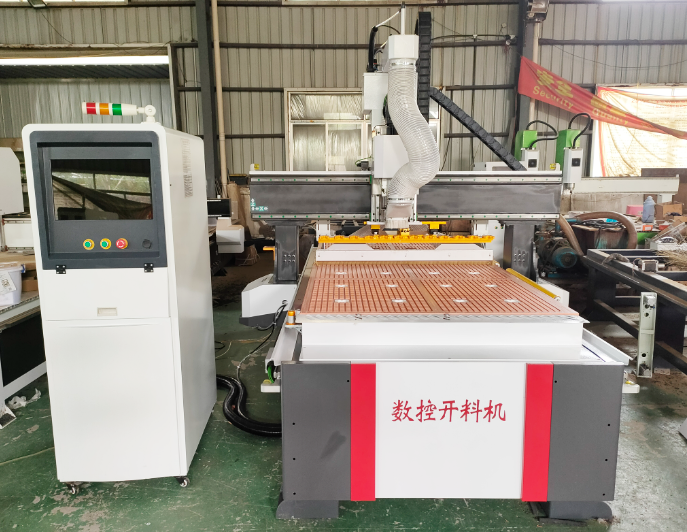

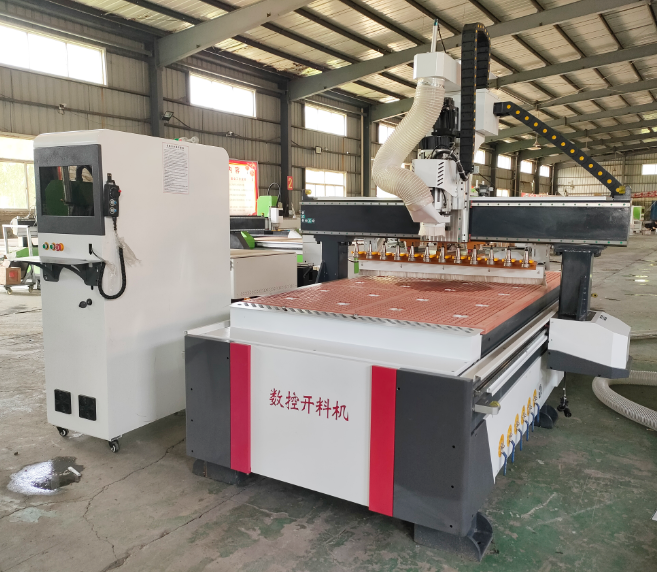

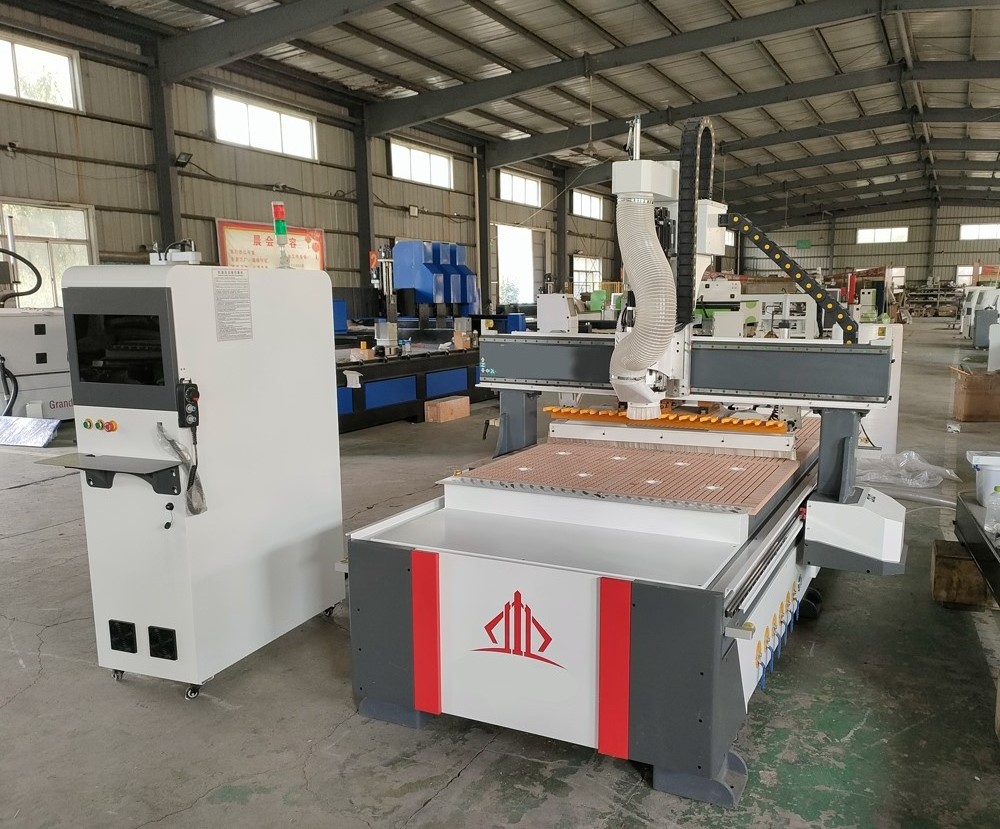

Product Description
(
1)Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-te-rm use of no deformation.
(2)Machine adopts Taiwan SYNTEC/LNC control system, high-performance industrial control system, w-hich has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture, with fast and smooth three-dimensional processing, carving and cutting.
(3)The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four-ball slider, lo-ading capacity, smooth running, keeping high accuracy.
(4)The machine worktable adopts the international leader vacuum technology, surface density, deformat-ion, high adsorption capacity, which can strongly absorb different materials, convenient maintenance. au-tomatic lubrication, only need to hand gently press can achieve the whole machine maintenance.
(5)The software compatibility: compatible type3/Castmate/Artcam/ Wentai/Mastercame and other design software.
Feature
# Adopt industrial heavy-duty structure design, ensure the strength and rigidity of the machine body.
# Standard with independent, 6 zone matrix vacuum table with high strength, suitable for different size processing.
# Adopt gantry transmission structure, to ensure fast speed and high efficiency.
# Adopt Taiwan Hiwin/PMI high precision linear rail, moving smooth and high accuracy.
# Configuration with servo motor, to ensure the transmission stronger and noise lower.
# Independent control cabinet, spearation of strong electricity and weak electricity to make the maintenance more convenient.
# Famous brand NC Studio / Syntec control system, multi functional.
# Chinese top brand HQD / Italy 9kw HSD ATC spindle, high quality and powerful.
|
Model
|
GD-1325
|
|
|
|
|||
|
XY working area
|
1300*2500mm(working area can be customized according to your needs)
|
|
|
|
|||
|
Z axis
|
250mm
|
|
|
|
|||
|
Transmission system
|
XY axis: Helical gear rack Z: Taiwan TBI ball screw
|
|
|
|
|||
|
Guide rail
|
Taiwan Hiwin/PMI linear square rail
|
|
|
|
|||
|
Working Table
|
Vacuum adsorption
|
|
|
|
|||
|
Spindle
|
9.0kw ATC air cooling spindle
|
|
|
|
|||
|
Control system
|
Taiwan SYNTEC control system
|
|
|
|
|||
|
Drive system
|
Japan YASKAWA servo motor and driver
|
|
|
|
|||
|
Inverter
|
Delta
|
|
|
|
|||
|
Spindle Speed
|
0-24000rpm/min
|
|
|
|
|||
|
Max. Rapid Travel Rate
|
45000mm/min
|
|
|
|
|||
|
Max. Working Speed
|
30000mm/min
|
|
|
|
|||
|
Command
|
G-code
|
|
|
|
|||
Detailed Images
9KW HSD/HQD spindle
Adopt Italian HSD ATC spindle both with better cutting effect , long using life with less maintain .
Servo auto tool changer with 1 2 / 2 4 disk
Compared with stepper tool magazine , servo tool magazine speed is faster and more precision
Double layer vacuum adsorption table
The whole machine has 108 empty positions, the adsorption table has no dead corner, and the small plate - sample suction is easy
Automatic oiling system
Reduce labor, save time and labor, perfect lubrication system, and prolong the service life of the slider
Application
1. Woodworking Industry:
various doors, windows, cabinets, craft wooden doors, paint free doors, screens, process fan windows, wave board processing and other furniture, wood processing.
2. Advertising Industry:
the production of advertising products of various materials, such as advertisement signs, marking production, advertising material cutting, plastic modeling,led neon lamp production, etc.
3. Handicraft Industry: various fine patterns and characters can be carved on wood, bamboo,artificial marble, organic board, bichromatic board, crystal and other materials.
4. Home decoration Industry: kitchen wood products, decorative cut-out partition, 3D relief decorative painting and other widely used.
5. Various solid wood relief batch carving machines; Various crafts batch carving machines; Various furniture batch carving machines.
3. Handicraft Industry: various fine patterns and characters can be carved on wood, bamboo,artificial marble, organic board, bichromatic board, crystal and other materials.
4. Home decoration Industry: kitchen wood products, decorative cut-out partition, 3D relief decorative painting and other widely used.
5. Various solid wood relief batch carving machines; Various crafts batch carving machines; Various furniture batch carving machines.
Working samples Display
Certificate
Company Introduction
Shandong Grandio CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine,Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture,solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing,automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries. After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive. At present, the company's products are sold to major and small cities and regions in China. The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
