Quick Details
-
Material:
-
Q235B Q345B
-
Zinc coating:
-
550-600g/㎡,Customized
-
Color:
-
Customized
-
Technology:
-
Hot Galvanized+Cold Rolled
-
Standard:
-
AASHTO M-180
-
Surface treatment:
-
Galvanized , Powder Coated
-
Application:
-
Roadway Safety
-
Certificate:
-
CE/BV/ISO 9001/ISO14001/ISO 18001
-
Usage:
-
Outdoor Security
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sino-Energy
-
Product name:
-
Highway Guardrail
-
Material:
-
Q235B Q345B
-
Zinc coating:
-
550-600g/㎡,Customized
-
Color:
-
Customized
-
Technology:
-
Hot Galvanized+Cold Rolled
-
Standard:
-
AASHTO M-180
-
Surface treatment:
-
Galvanized , Powder Coated
-
Application:
-
Roadway Safety
-
Certificate:
-
CE/BV/ISO 9001/ISO14001/ISO 18001
-
Usage:
-
Outdoor Security
Products Description

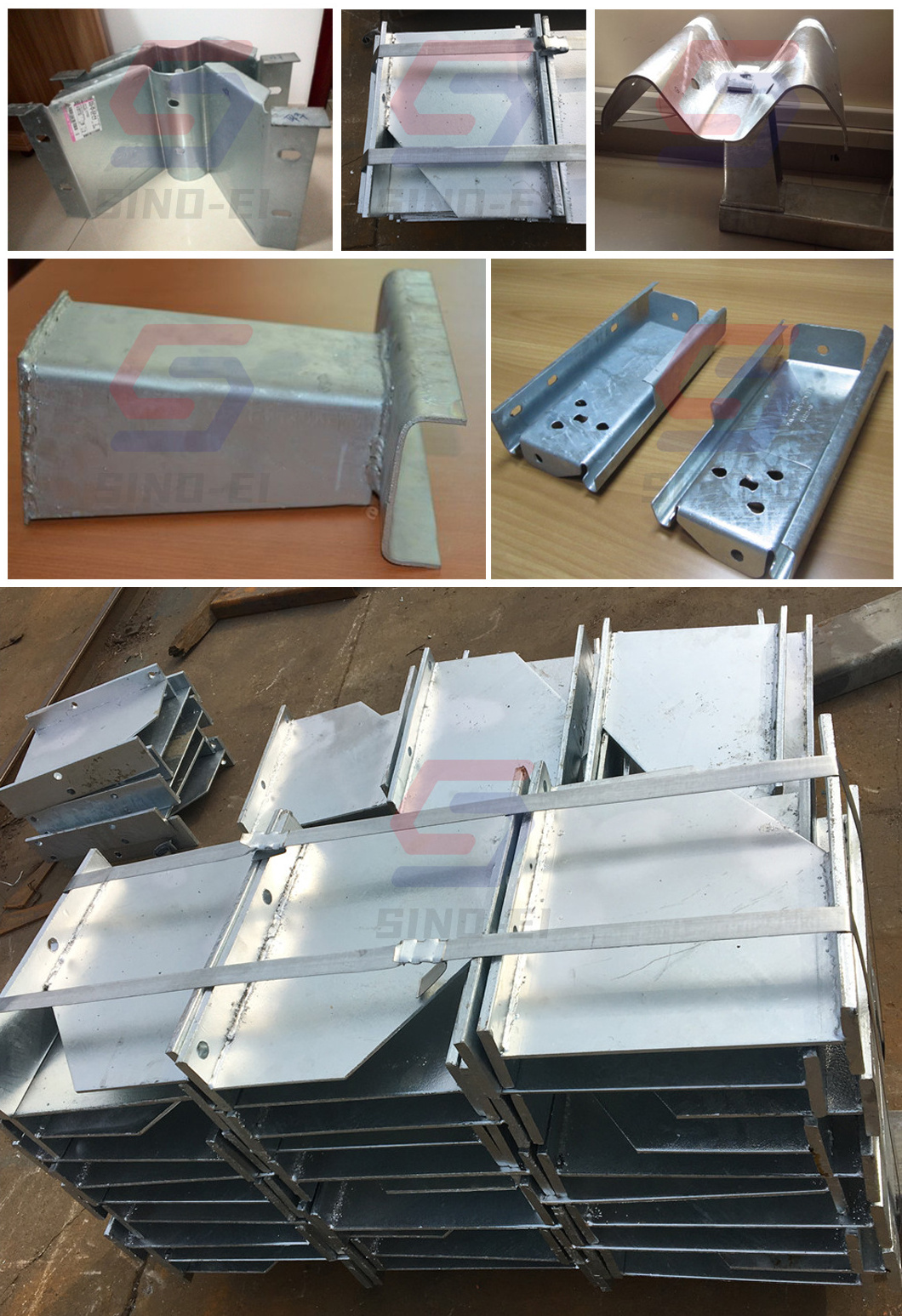

Guardrail Spacial S
pacer
Guardrail Spacer Block are considered as passive protectors with a view to ensure the safety of the pedestrians by the wayside and the vehicles. Highway guardrails are designed in pursuance to the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.
It is mainly installed between guardrail and post to reduce the crash collision of highway/expressway/roadway.Spacer block itself is an energy absorbing part,so it could make the guardrail deform gradually during the sudden collisions.thus is conducive to energy absorption, reduce occupant casualties;at the same time,the spacer block could allocate the crash energy to guardrail and post,thereby increase the overall strength and tension of the guardrail system.

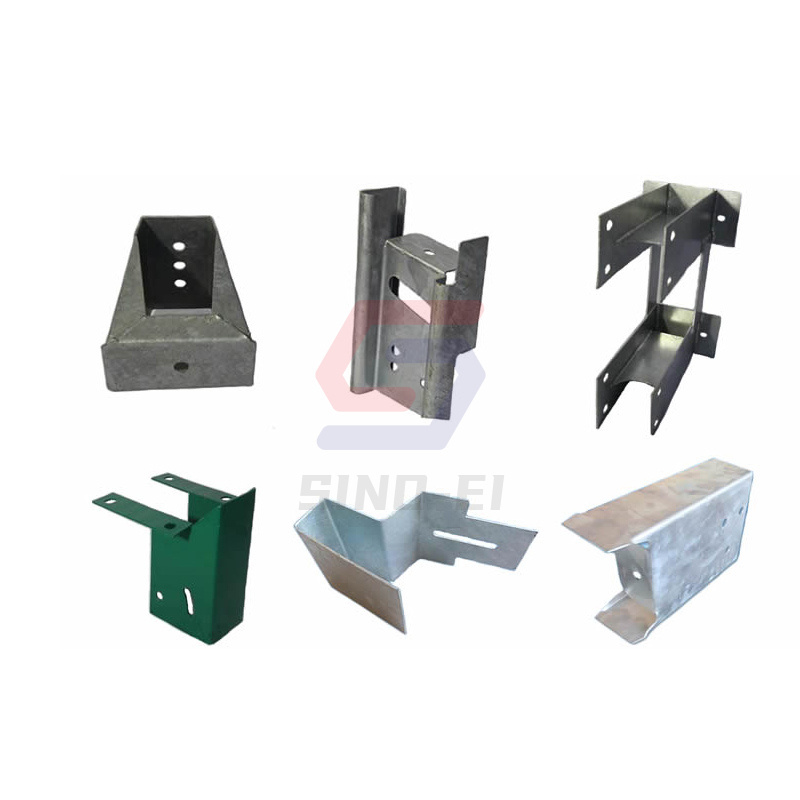

In addition to the most basic types, there are Plane Wings, Round Block,Bracket and other types.
It is mainly installed between guardrail and post to reduce the crash collision of highway/expressway/roadway.Spacer block itself is an energy absorbing part,so it could make the guardrail deform gradually during the sudden collisions.thus is conducive to energy absorption, reduce occupant casualties;at the same time,the spacer block could allocate the crash energy to guardrail and post,thereby increase the overall strength and tension of the guardrail system.
In addition to the most basic types, there are Plane Wings, Round Block,Bracket and other types.
Product Paramenters
|
Shape
|
C/U/H/U/UPN/BOX/Bracket/Round/Plane Wings/Trapezoid
|
|
Color
|
Silver (Other Colors Available Like Blue, Green)
|
|
Base Material
|
A572/Q345B/HA350/Q235B/A36/S355JR/S275JR
|
|
Zinc Coating Weight
|
300/550/610/900/1100/1220 G/M2
|
|
Certificate
|
AASHTO,AS/NZS, EN, ISO9001,ISO14000,SGS,CE, BV
|
|
Standard
|
AASHTO-M180, AS/NZS 3845:1999,BS EN-1317
|
|
Features
|
Great Corrosion Resistant, High Intensity, Durable
|
Number of Road Accessories per Kilometer
|
Product
|
Size
(L * W * WW * WH * T）
|
Post spacing: 4 m
Quantity per KM
|
Post spacing: 2 m
Quantity per KM
|
Coating Treatment
|
|||
|
W-beam
|
4320*310*85*3/4 mm
|
250 Pcs
|
250 Pcs
|
Hot Dip Galvanized:
60-100μm;
Powder spraying:
Pre-Galvanized + Powder spraying 50-90μm;
|
|||
|
C Post
|
1800*125*62.5*25*5mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
C Spacer Block
|
330*125*62.5*25*3mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Washer
|
76*44*4mm
|
251 Pcs
|
501 Pcs
|
|
|||
|
Bolts & Nuts
|
M16*35mm
|
2000 Sets
|
2000 Sets
|
|
|||
|
Bolts & Nuts
|
M16*45mm
|
502 Sets
|
1002 Sets
|
|
|||
|
Bolts & Nuts
|
M16*50mm
|
251 Sets
|
501 Sets
|
|
|||
|
Terminal End
|
R160
|
2 Pcs
|
2 Pcs
|
|
|||
|
Notes
|
1.Shape:Two waves, W-beam
2.Normal Specification: 4320*310*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007，AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers’ request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts,Terminal,Reflectors 8. Certificate: ISO9001:2015 |
|
|
|
|||

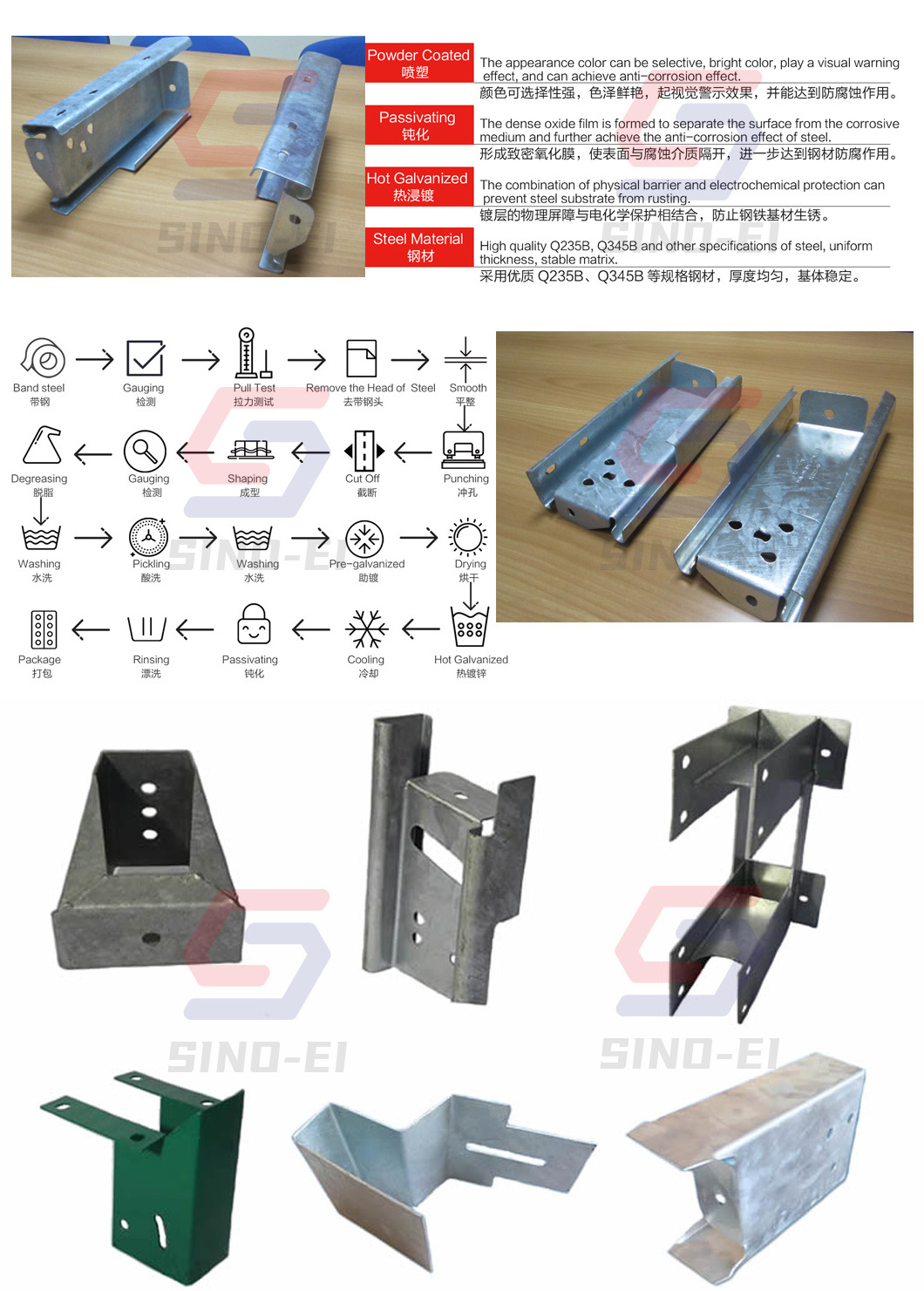

Manufacturing Technique
