Quick Details
-
Model Number:
-
WPNT03
-
Product name:
-
Pressure Transmitter
-
Application:
-
Water Oil Air Pressure Measurement
-
Pressure range:
-
0.1-60Mpa
-
Accuracy:
-
0.5%FS
-
Measured media:
-
Gas Water Steam Fuel
-
Supply voltage:
-
5-12VDC
-
Output:
-
Lora/LoraWan/WMbus
-
Material:
-
Stainless Steel
-
Certification:
-
CE
-
Power supply:
-
Battery
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jingwei
-
Model Number:
-
WPNT03
-
Product name:
-
Pressure Transmitter
-
Application:
-
Water Oil Air Pressure Measurement
-
Pressure range:
-
0.1-60Mpa
-
Accuracy:
-
0.5%FS
-
Measured media:
-
Gas Water Steam Fuel
-
Supply voltage:
-
5-12VDC
-
Output:
-
Lora/LoraWan/WMbus
-
Material:
-
Stainless Steel
-
Certification:
-
CE
-
Power supply:
-
Battery
Product Description
LoRaWAN Wireless pressure sensor WNPT01 with high precision and sensitivity and the ultra-low power consumption microprocessor are adopted to process the pressure signal of the medium under test into digital signal, which can display the pressure value on site and transmit the measured data wireless through the standard LoRaWAN protocol. It has the advantages of convenient installation and use, further transmission distance, stable and reliable performance and so on. It is widely used in intelligent fire protection, intelligent water supply, intelligent factory and other wireless pressure monitoring field.
Specification
|
Display mode:
|
Five-digit liquid crystal display
|
|
The test medium:
|
Liquid or gas compatible with material
|
|
Scale range:
|
0.1~ 60MPaInner arbitrary interval
|
|
Precision grade:
|
0.5%FS
|
|
Working voltage:
|
3.6VDC battery
|
|
Battery capacity:
|
19000mAh
|
|
Sleep currency:
|
<30uA
|
|
Transmit currency:
|
<140mA
|
|
Receive currency:
|
<15mA
|
|
LoraWan frequency:
|
433Mhz/868Mhz/915Mhz/923Mhz
|
|
Communication protocol:
|
Standard LoRaWAN agreement
|
|
Working temperature:
|
-20~60°C
|
|
Overload capacity:
|
300%
|
|
Service life:
|
>9 million Pressure cycle
|
|
Install the screw:
|
M20*1.5, G1/2, etc.
|
|
Protection grade:
|
IP65
|

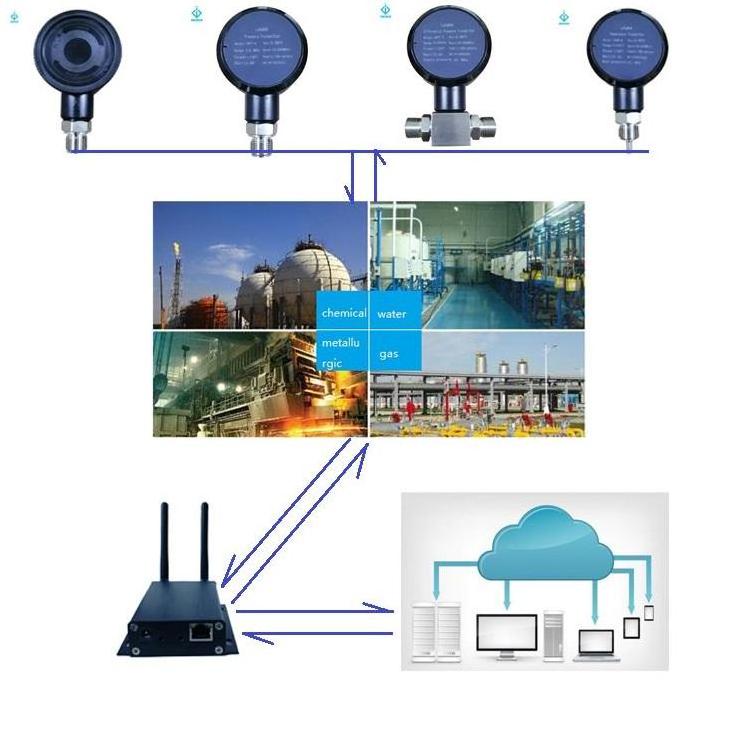

Application
Packing & Delivery
OUTER: carton box; INNER: small box per unit
