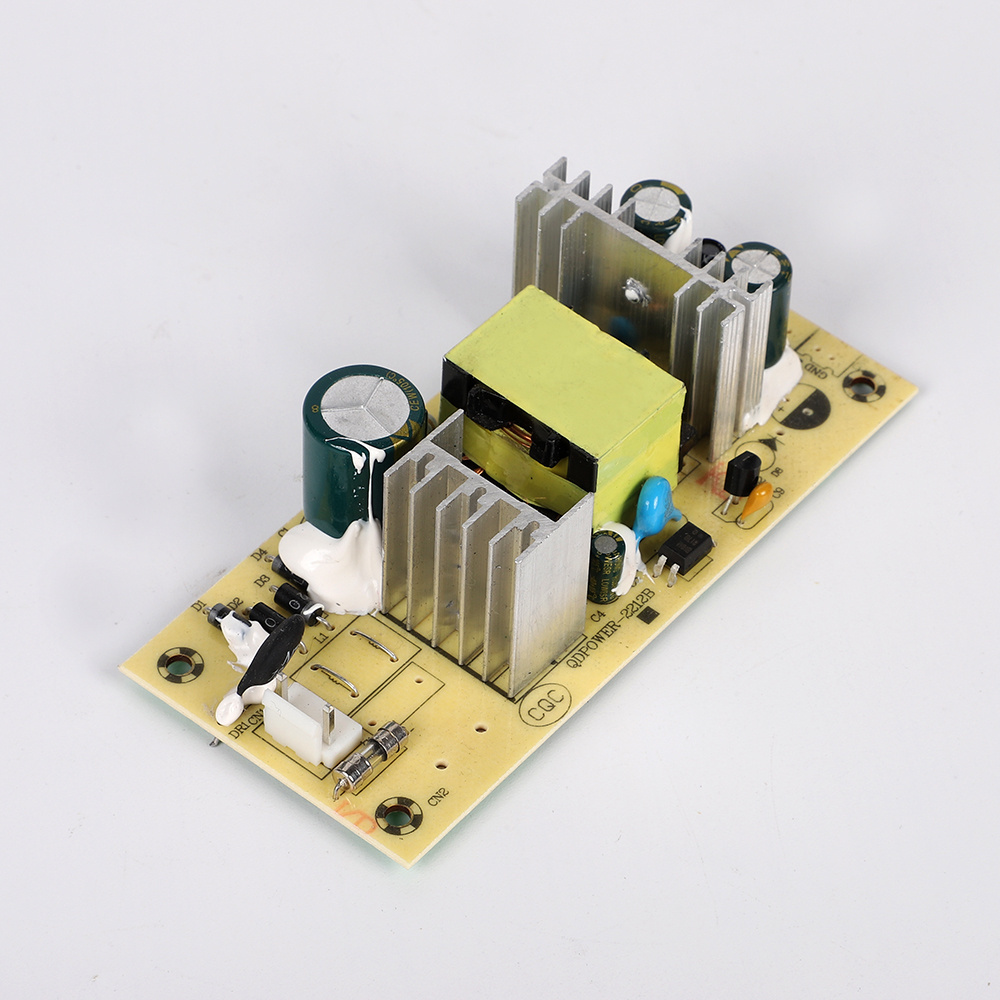

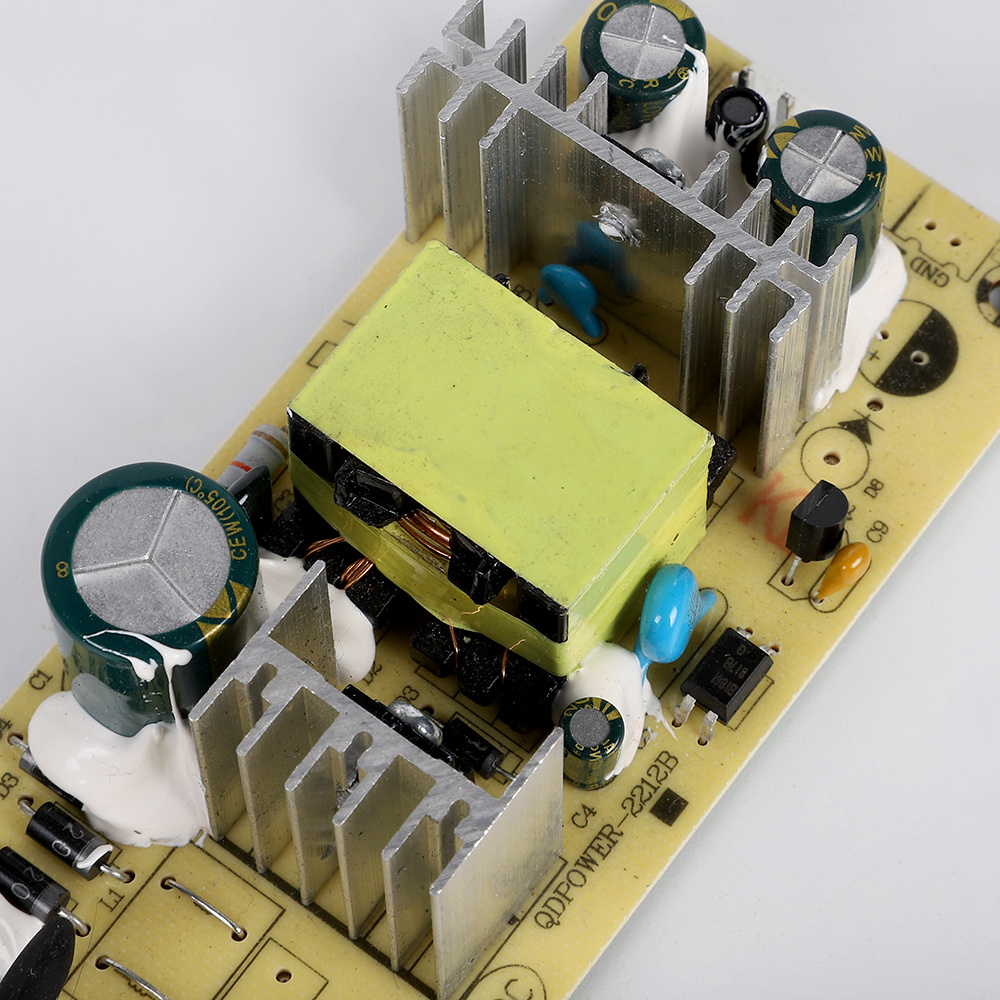

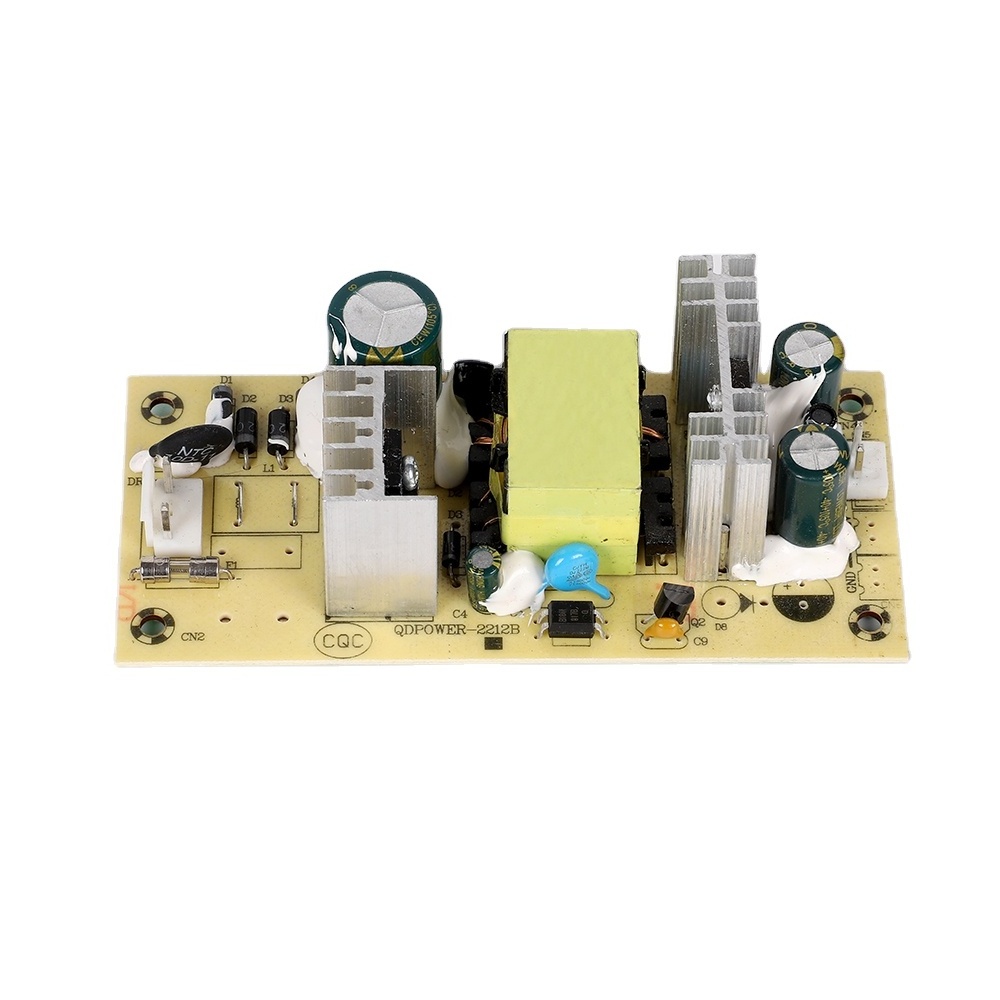

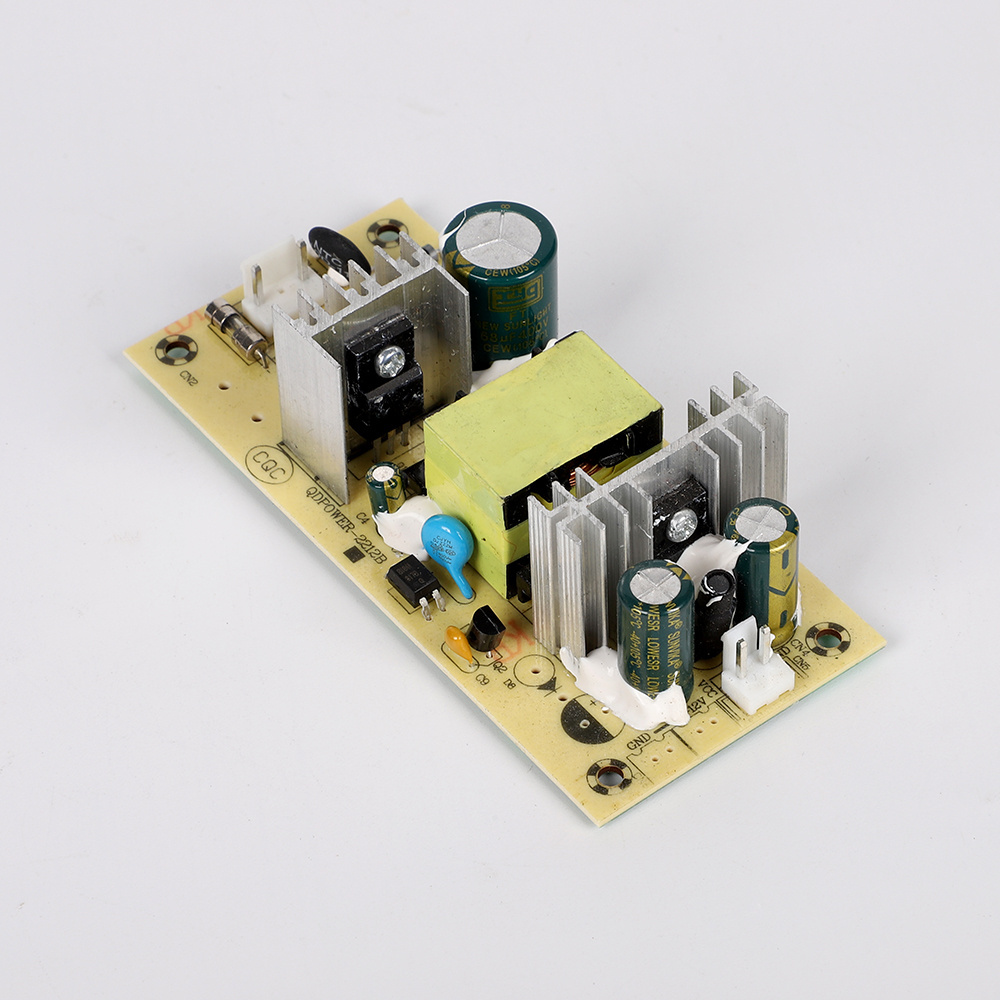

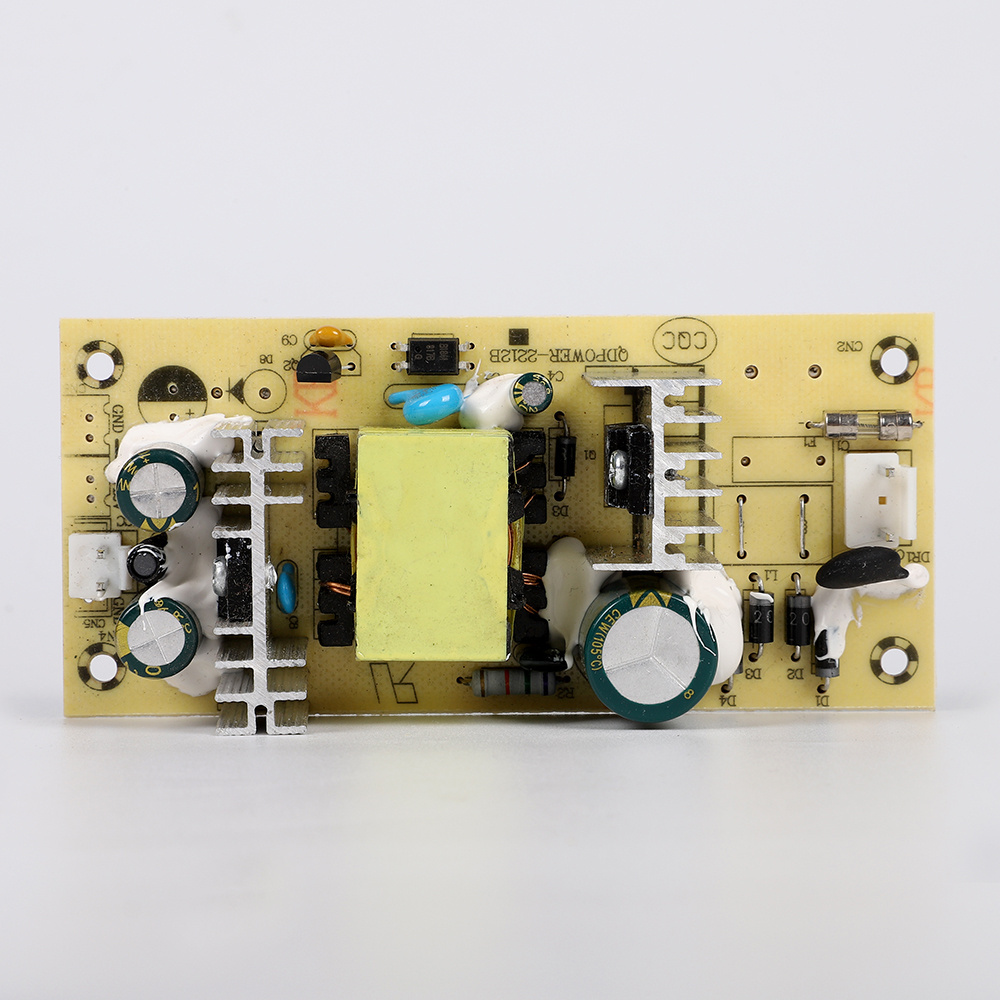

Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module
Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module

Constant Voltage High Efficiency Durable Single 24V 36V 48V 1A 2A 3A Switch Power Supply Module

FOB Reference Price: Get Latest Price
≥200 Pieces
US $2.22
≥1000 Pieces
US $2.2
≥3000 Pieces
US $2.18
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
QIDA
Model Number:
QD-2212B
Output Frequency:
50-60Hz
Output Current:
2A
Application:
Consumar Electronic,Audio,Industrial Control
Air Convection:
Yes
Dimension:
115*55*25MM
Input Connector:
JST VH3.96MM 2 out of 3
Output Connector:
JST VH3.96MM
Isolated Power:
Yes
Double-sided Board:
No
Warranty:
2 years
Max Output Power:
100W
Working Temp:
0-40 Celsius Degree

Quick Details

Input Voltage:
100-240
Output Voltage:
36V
Place of Origin:
Guangdong, China
Brand Name:
QIDA
Model Number:
QD-2212B
Output Frequency:
50-60Hz
Output Current:
2A
Application:
Consumar Electronic,Audio,Industrial Control
Air Convection:
Yes
Dimension:
115*55*25MM
Input Connector:
JST VH3.96MM 2 out of 3
Output Connector:
JST VH3.96MM
Isolated Power:
Yes
Double-sided Board:
No
Warranty:
2 years
Max Output Power:
100W
Working Temp:
0-40 Celsius Degree
Product Description
Product Name
Constant Voltage High Efficiency Durable Power Supply 36V 2A 48V 1A Switch Power Supply
Model Number
QD-2212B
Rated Output Volt
36V
Current Range
0-2A
Start,Rise,Hold Up time
1500ms,50ms/230Vac 2000ms,50ms/115Vac(full load)
Voltage Tolerance
+-4%
Ripple Voltage
200mVp-p
Input Voltage
100-240Vac
Frequency
50/60Hz
Current Max
1.2A(115VaC) 0.7A(230Vac)
Inrush Current
20A(230Vac cold start)
Leakage Current
less than 0.75mA(240Vac)
Line Regulation
+-3%
Load Regulation
+-3%
Protection
OVP,OLP,SCP
Withstanding Voltage
I/P to O/P 3KVac 60S; O/P-FG:0.5KV 1min
Isolation Resistance
I/P-O/P IP/FG O/P-FG:500VDC 100MΩ
MTBF
60,000hrs RM25℃
Working Temp
-10~40℃
Model: QDPOWER-2212B
Rated Output : 36V  Power:72W
Line regulation : +-3%
Outinedimension(mm): 115*55*25MM
Efficiency(ty) : 85%

Packing&Shipping
Company Introduction

Our Services & Strength

Professional AC DC，DC/DC Switching Power Supply And Adapter Manufacturer: Qida is a switching power supply&adapter manufacturer which is producing a variety of power supply,power adapters and more.Our factory is positioned in the international business city Guangzhou of China,close to the Guangzhou Baiyun international airport with most convenient transportations.With more than 15 years experience in the global power supply industry.Qida high performance powerproducts are widely used in all kinds of electronics including speakers,audio amplifiers,mixers,LED display,LED lighting,medical equipment,TV,PC and more.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you.

Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days

Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.

Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standardized and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
