Quick Details
-
Brand Name:
-
MYCUT
-
Model Number:
-
MC1200
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
128MB
-
Cutter Pressure:
-
0-500g(optional 0-1000g)
-
Cutting Speed:
-
800mm/s
-
Driver:
-
Stepper Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
1-500 Times
-
Size:
-
1670*330*395mm
-
automatic contour:
-
camera sensor scan
-
Interface:
-
USB2.0/U-disc/ Ethernet port
-
Software:
-
coreldraw plugin/ signmaster/flexi
-
Blade:
-
Roland Blade
-
Color:
-
White/grey/blue/gold
-
Usage:
-
car sticker, logo cutter
-
Plotting instruction:
-
DM-PL HP/GL
-
Brand:
-
MYCUT
-
Material:
-
Aluminum Alloy
-
Warranty:
-
12 Months
Quick Details
-
Paper Feed Width:
-
1370mm
-
Cutting Width:
-
1270 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYCUT
-
Model Number:
-
MC1200
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
128MB
-
Cutter Pressure:
-
0-500g(optional 0-1000g)
-
Cutting Speed:
-
800mm/s
-
Driver:
-
Stepper Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
1-500 Times
-
Size:
-
1670*330*395mm
-
automatic contour:
-
camera sensor scan
-
Interface:
-
USB2.0/U-disc/ Ethernet port
-
Software:
-
coreldraw plugin/ signmaster/flexi
-
Blade:
-
Roland Blade
-
Color:
-
White/grey/blue/gold
-
Usage:
-
car sticker, logo cutter
-
Plotting instruction:
-
DM-PL HP/GL
-
Brand:
-
MYCUT
-
Material:
-
Aluminum Alloy
-
Warranty:
-
12 Months
Product Description

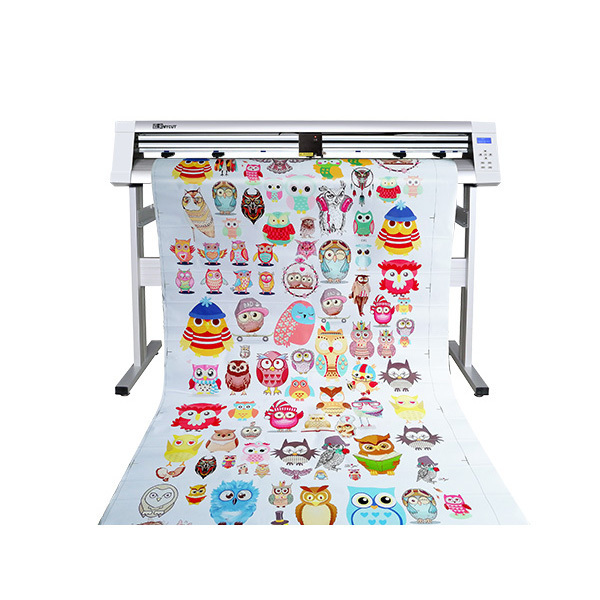

MYCUT MC1200 camera sensor automatic contour cut signmaster /coreldraw plugin vinyl cutting plotter
Main Features
|
Model
|
MC330(12'')
|
MC630(24'')
|
MC1200(48'')
|
MC1500(59'')
|
|||
|
Media Way
|
Desk cutter
|
Floor Stand
|
Floor Stand
|
Floor Stand
|
|||
|
Main Board
|
High-performance & intelligent ARM 32 CPU; 256M memory
|
|
|
|
|||
|
Driver
|
High speed stepping motor, micro-step driver
|
|
|
|
|||
|
Max Paper Feed Width
|
430mm
|
730mm
|
1370mm
|
1600mm
|
|||
|
Max Cutting Width
|
330mm
|
630mm
|
1270mm
|
1500mm
|
|||
|
Max Cutting Speed
|
650mm/s
|
|
|
|
|||
|
Cutting Force
|
0-500g/0-1000g (optional configuration)
|
|
|
|
|||
|
Mechanical Precision
|
0.05mm
|
|
|
|
|||
|
Repeatable Precision
|
< +-0.1mm
|
|
|
|
|||
|
Plotter Instruction
|
DM-PL/HP-GL Automatic Identification
|
|
|
|
|||
|
Interfaces
|
USB/
U-Disc port/ Ethernet port
|
|
|
|
|||
|
Power Supply
|
AC110V /220V±10%, 50Hz/60Hz
|
|
|
|
|||
|
Software
|
plugin for coreldraw/signmaster
|
|
|
|
|||
|
Noise at Work
|
≤55DB
|
|
|
|
|||
|
External Dimension
|
750*330*400mm
|
1045*330*400mm
|
1590*330*400mm
|
1890*330*400mm
|
|||
|
Shipping Weight
|
15kgs
|
23kgs
|
34kgs
|
41kgs
|
|||

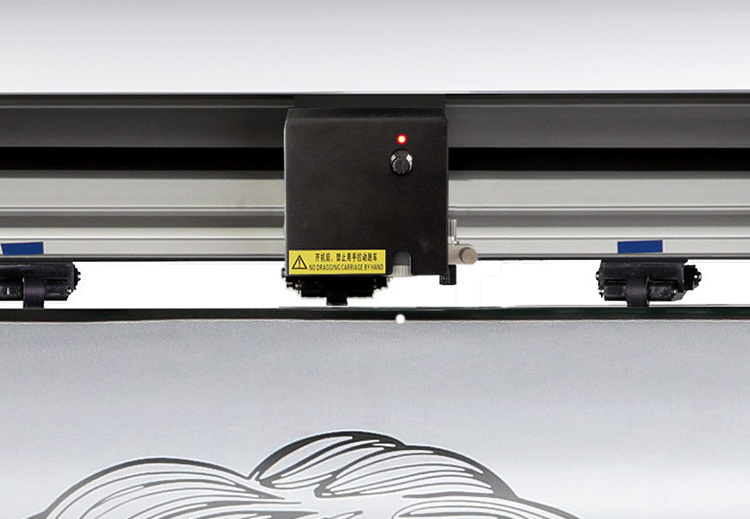

Strong Integrated Carriage
wider range of applications
Integrated Grit Roller
High precision
Big LCD Display
Strong Pinch Roller

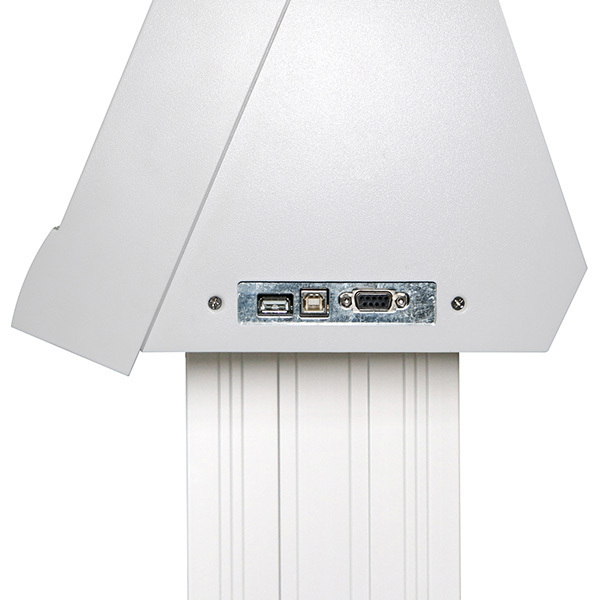

Three Interfaces
Standard Blade
MYCUT Vinyl Cutter Performance Video Link
Standard Accessories
1) User Manual(CD) 2) 1 RS232 serial cable 3) 1 Power cable and 1 USB cable
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card
Optional Choices
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card
Optional Choices
1)floor stand
2)laser point
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer)
8)bluetooth or wifi wireless transfer
Note:we will extra charge for optional configuration,please contact us for details.
2)laser point
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer)
8)bluetooth or wifi wireless transfer
Note:we will extra charge for optional configuration,please contact us for details.
MYCUT Vinyl Cutter Application
Label /Paper Cut
Advertise Sign
Wall / Window Sticker
Packing & Delivery
Standard Packing
Factory Info
Shenzhen Huansheng Machinery Co.,Ltd MYCUT Vinyl Cutter Plotter Factor
Shenzhen HuanSheng Machinery Co.,Ltd is a professional manufacture of vinyl cutter, engraving machine and other CNC equipments.
With the Brand " MYCUT" ,mycut vinyl cutter is new name, but MYCUT team have a long history with more than 10 years in this field. Now MYCUT become the leading supplier of vinyl cutter in China with the highest precision and reliability.We get high reputation from our partners from North America, South Ameraic ,Middle East and Asia.
MYCUT located in Shenzhen ,the "CITY of DESIGN".As a globle supplier for vinyl cutter, we try to offer partners high quality products with fashion design. It's our aim to added value to our customers.
With the Brand " MYCUT" ,mycut vinyl cutter is new name, but MYCUT team have a long history with more than 10 years in this field. Now MYCUT become the leading supplier of vinyl cutter in China with the highest precision and reliability.We get high reputation from our partners from North America, South Ameraic ,Middle East and Asia.
MYCUT located in Shenzhen ,the "CITY of DESIGN".As a globle supplier for vinyl cutter, we try to offer partners high quality products with fashion design. It's our aim to added value to our customers.
Warranty &Service
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.
