- Product Details
- {{item.text}}
Quick Details
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
200 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
57 g/s
-
Injection Weight (g):
-
40 g
-
Screw diameter (mm):
-
22 mm
-
Distance between Tie Bars:
-
250*200mm
-
Weight (KG):
-
1000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
215 mm
-
Model Number:
-
XH-436
-
Brand Name:
-
Xihua
-
Power (kW):
-
6 kW
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
250mm
-
Distance between Tie Bars(Height)(mm):
-
200mm
-
Ejector Number:
-
16
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
200 kN
-
Theoretical Shot Volume(cm³):
-
40 cm³
-
Injection Rate (g/s):
-
57 g/s
-
Injection Weight (g):
-
40 g
-
Screw diameter (mm):
-
22 mm
-
Distance between Tie Bars:
-
250*200mm
-
Weight (KG):
-
1000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
215 mm
-
Model Number:
-
XH-436
-
Brand Name:
-
Xihua
-
Power (kW):
-
6 kW
Product Description
Product Application

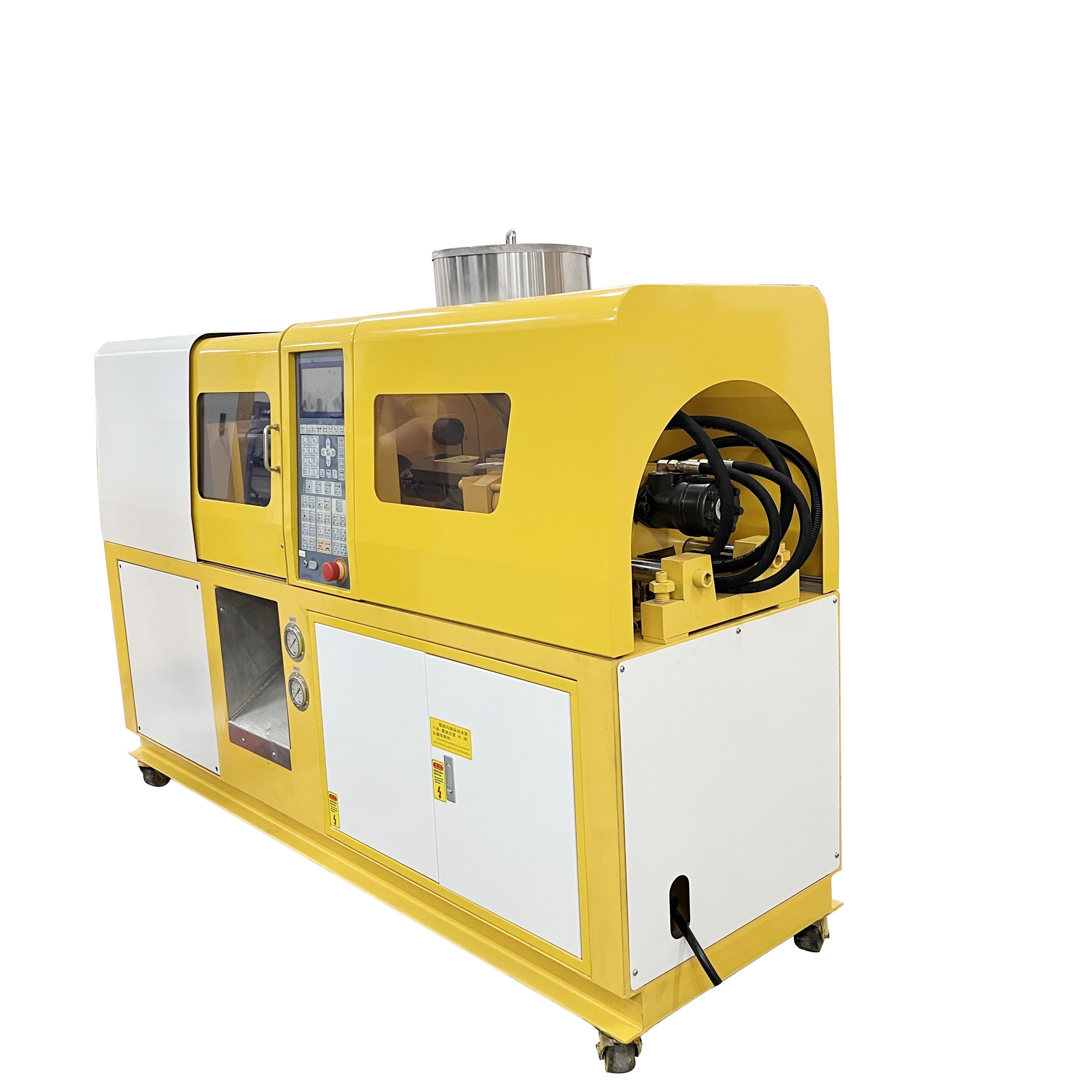

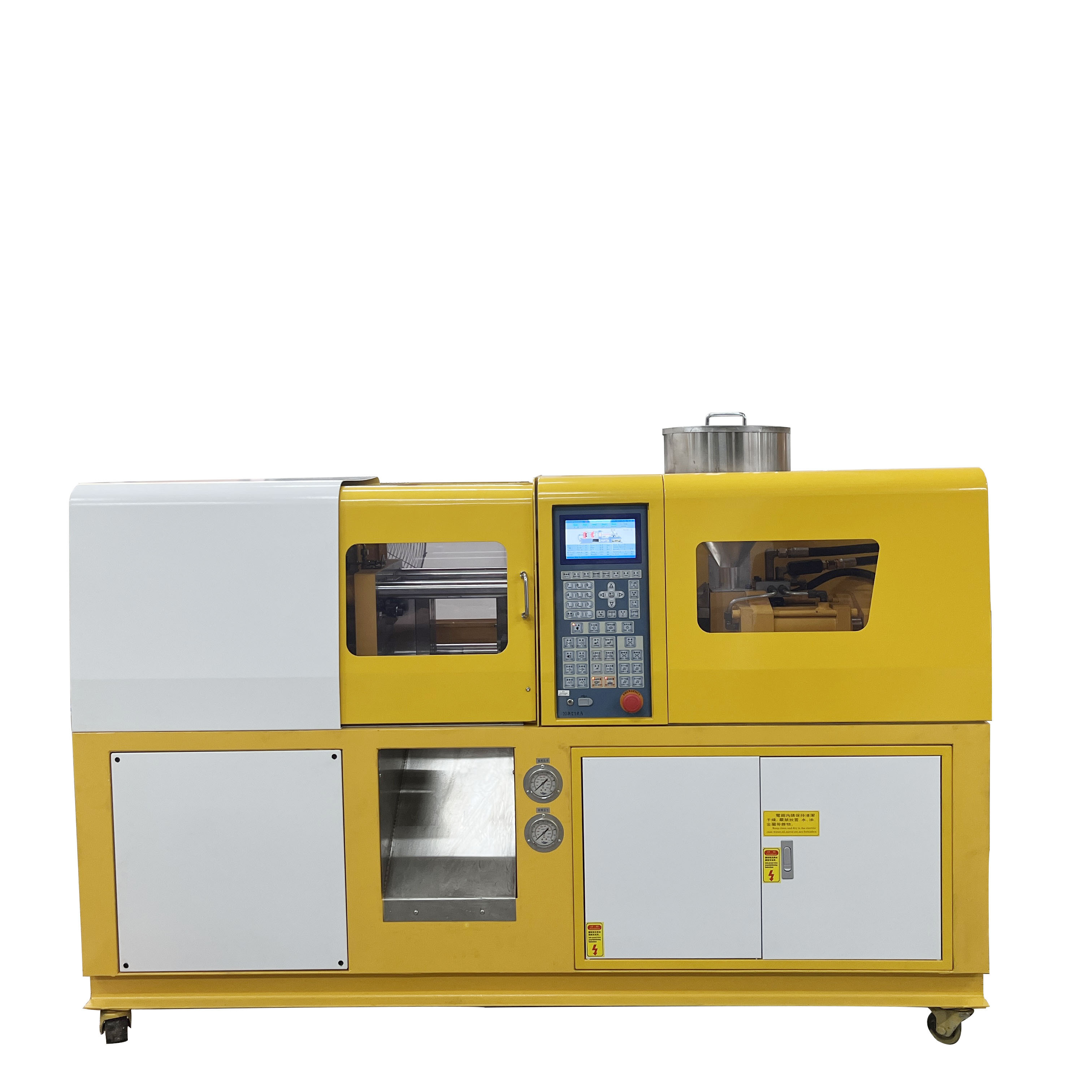

This Horizontal type PVC plastic injection molding machine reduces and improves the production machine, which has little volume and strong removability, injection molding machine is suitable for classroom teaching and the making of the small simple. This injection molding machine contains opening mould and closing mould parts, melting plastic injection parts, machine body, heating system, control system, and charging device.
|
Technical parameter of XH-436 Injection Molding Machine
|
|
|
|
|||
|
Technical Parameter
|
Applicable materials
|
PP, PE, PC, PVC, TPE, ABS,etc.
|
|
|||
|
|
Control mode
|
PLC human computer interface or touch-tone
|
|
|||
|
|
Screw diameter
|
22mm
|
|
|||
|
|
Injection pressure
|
2170Kg/cm2
|
|
|||
|
|
Injection volume
|
40cm2
|
|
|||
|
|
Ejection capacity
|
40/1.4G/OZ
|
|
|||
|
|
Ejection rate
|
57cm2/sec
|
|
|||
|
|
Screw stroke
|
110mm
|
|
|||
|
|
Screw speed
|
0-215rpm
|
|
|||
|
|
Nozzle
|
150mm
|
|
|||
|
|
Clamping force
|
20ton
|
|
|||
|
|
Template size
|
380mm×290mm
|
|
|||
|
|
Mold column spacing
|
250mm×200mm
|
|
|||
|
|
Mold opening stroke
|
215mm
|
|
|||
|
|
Maximum hydraulic pressure
|
140Kg/cm2
|
|
|||
|
|
Pump blade output
|
31L/min
|
|
|||
|
|
Motor power
|
4KW
|
|
|||
|
|
Weight of machine
|
1000kg
|
|
|||
|
|
Dimension of machine
|
2020*600*1400mm
|
|
|||
Main Features
Detailed Images
Certifications
Our Service
Pre-Sales Service
After-Sales Service
Contact Information
Dongguan Xihua Testing Machine Co.,Ltd
WhatsApp: +86 18085723747
Email: cathy202307@163.com
Website: www.lab-xh.com
Our Exhibition
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
|
|
