Quick Details
-
Weight:
-
159kg
-
Workin Pressure:
-
6.4Mpa/ 65 kgf/cm2
-
Max. Pressure:
-
14.7Mpa/ 150 kgf/cm2
-
Shaft material:
-
steel
-
Recommemded truck G.W:
-
6000-9000kg
-
rated lifing capacity:
-
5000-10000kg
-
Application:
-
trucks,cranes
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FangRui
-
Color:
-
black
-
Weight:
-
159kg
-
Workin Pressure:
-
6.4Mpa/ 65 kgf/cm2
-
Max. Pressure:
-
14.7Mpa/ 150 kgf/cm2
-
Shaft material:
-
steel
-
Recommemded truck G.W:
-
6000-9000kg
-
rated lifing capacity:
-
5000-10000kg
-
Application:
-
trucks,cranes
Product Description

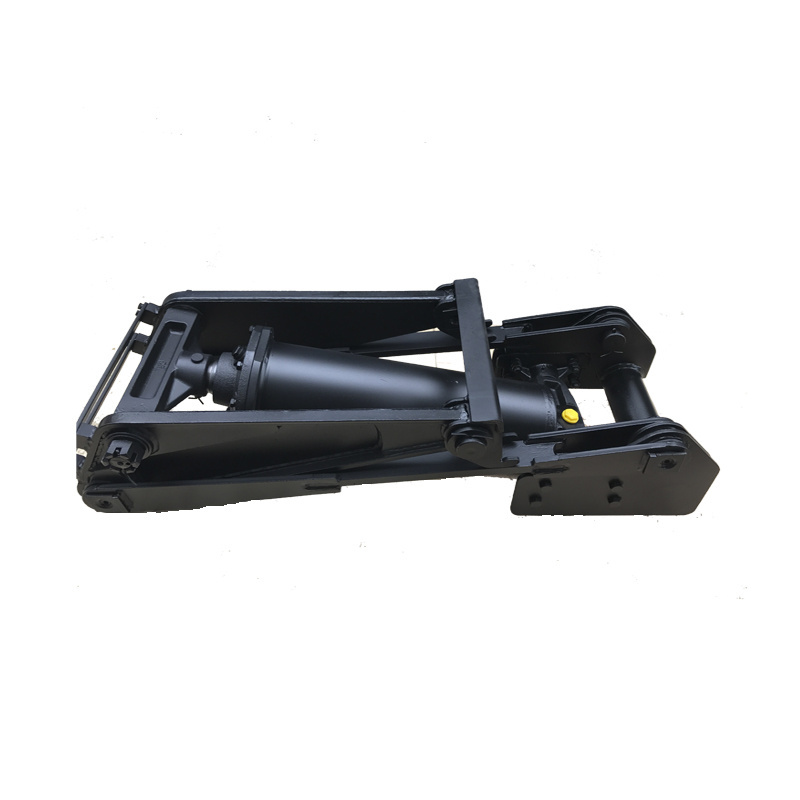

5 tons KRM140 hydraulic lift cylinder mechanism
Product Detail
| Color | black |
| Weight | 160kg |
| Workin Pressure | 6.4Mpa/ 65 kgf/cm2 |
| Max. Pressure | 14.7Mpa/ 150 kgf/cm2 |
| Shaft material | steel |
| Recommemded truck G.W | 6000-9000kg |
| rated lifing capacity | 5000-10000kg |
| Application | trucks,cranes |
| Product Keywords | 10 ton KRM146 tipper lift cylinder |
Features:
| Model | Piston Rod diameter(mm) | Cylinder Inner diameter(mm) | Stroke(mm) | Weight(kg) | Working Pressure(Mpa) | Min.Close Distance(mm) |
|
KRM-146
|
60 | 140 | 501 | 58 | 6.4 | 714 |
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1160 | 410 | 250 | 780 | 159 |
| Model | Rotating speed(rpm) | Discharge Volume(ml/rev.) | Max.Testing Pressure(Mpa) | Weight(kg) |
| KP-55A | 800 | 55 | 20.6 | 13 |
| Recomended Truck G.W(kg) | Body Length(mm) | Rear Overhang Length(mm) | Distance between Load Center and Hinge(mm) | Distance between Trunnion and Hinge(mm) | Rated Lifting Capacity(kg) | |
| 6000-9000 | 3400 | 400 | 1300 | 1100 | 5000-10000 | 18000/60° |
