Quick Details
-
Brand Name:
-
Bersn
-
Model Number:
-
BS-WIZPANEL-EU
-
Item:
-
SmartPanel Connected by WiZ
-
Model No.:
-
BS-WIZPANEL-EU
-
Rated voltage:
-
100...240VAC 50/60MHz
-
Standby power:
-
<0.5W @ Rated input voltage
-
Power supply:
-
Neutral wire(N) & Live Wire(L)
-
Panel materials:
-
PC V0 fireproof + toughened glass panel
-
Wireless type:
-
WiFi 2.4G
-
Wireless standard:
-
IEEE802.11 b/g,
-
Approval Marks:
-
CE-RED, RoHS
-
Size:
-
86x86x38.6mm
Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
3.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bersn
-
Model Number:
-
BS-WIZPANEL-EU
-
Item:
-
SmartPanel Connected by WiZ
-
Model No.:
-
BS-WIZPANEL-EU
-
Rated voltage:
-
100...240VAC 50/60MHz
-
Standby power:
-
<0.5W @ Rated input voltage
-
Power supply:
-
Neutral wire(N) & Live Wire(L)
-
Panel materials:
-
PC V0 fireproof + toughened glass panel
-
Wireless type:
-
WiFi 2.4G
-
Wireless standard:
-
IEEE802.11 b/g,
-
Approval Marks:
-
CE-RED, RoHS
-
Size:
-
86x86x38.6mm

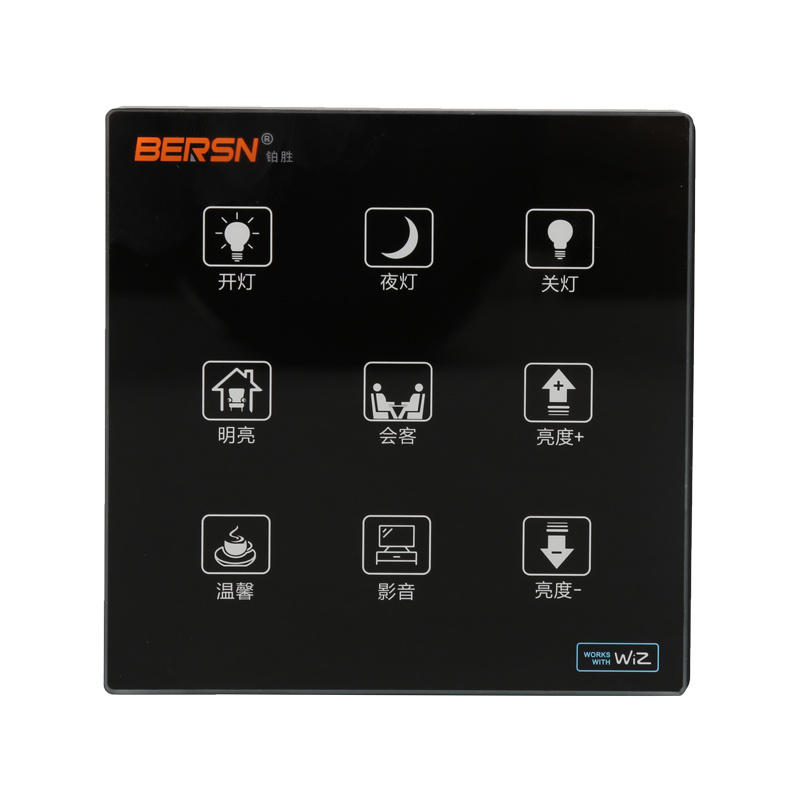

SmartPanel Connected by WiZ
BS-WIZPANEL-EU
BERSN SmartPanel Connected by WiZ is a wireless wall touch control panel with 86 standard wall boxes allowing you to control On/Off, Dimming and 4 scenes with glass touch buttons. The different scenes can be set personally via WiZ app. Create welcoming spaces and bring the human electric lighting benefits into your application.
Features
* Flush-mounted in 86 x 86mm square standard junction box.
* Stylish glass touch switch with integrated LED that indicates the switching status.
* Ready-to-fit, incl. glass frame to replace complete wall switch insert or toggle.
* Stylish glass touch switch with integrated LED that indicates the switching status.
* Ready-to-fit, incl. glass frame to replace complete wall switch insert or toggle.
|
Input electrical parameters
|
|
|
|
|||
|
pecification item
|
SmartPanel Connected by WiZ
|
unit
|
condition
|
|||
|
Model No.
|
BS-WIZPANEL-EU
|
Vac
|
|
|||
|
Rated voltage
|
100…240VAC 50/60MHz
|
Vac
|
safe working range
|
|||
|
Standby power
|
<0.5W @ Rated input voltage
|
Hz
|
|
|||
|
Power supply
|
Neutral wire(N) & Live Wire(L)
|
Hz
|
maximum allowable range
|
|||
|
Panel materials
|
PC V0 fireproof + toughened glass panel
|
|
Full load 220V-240V
|
|||
|
Wireless type
|
WiFi 2.4G
|
mA
|
230V at full load
|
|||
|
Wireless standard
|
IEEE802.11 b/g,
|
%
|
230V at full load
|
|||
|
Ambient temperature
|
-10…+50ºC
|
%
|
230V at full load
|
|||
|
Approval Marks
|
CE-RED, RoHS
|
|
|
|||
|

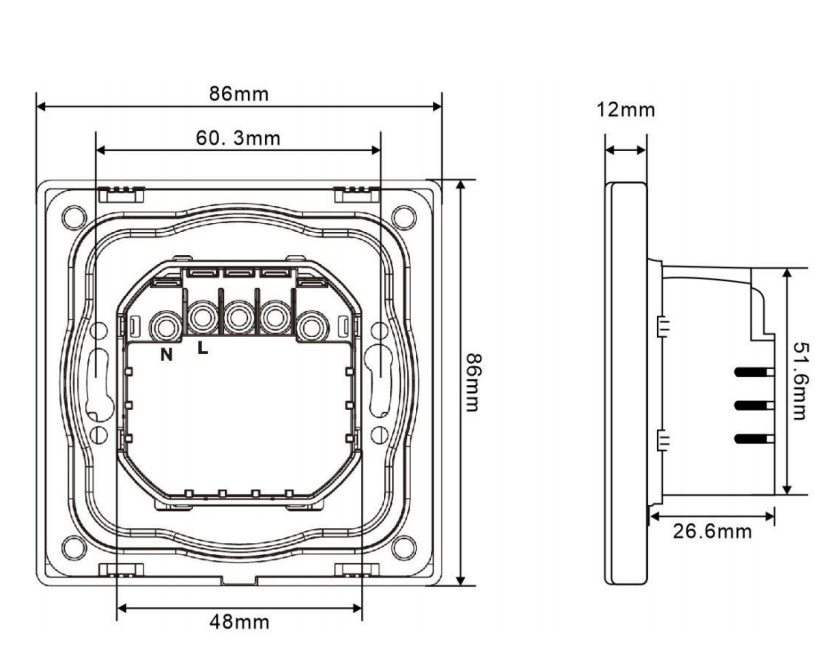

Dimensions & Weight
|
|
|
|
|
||||
|
Dimensions LxWxH
|
86x86x38.6mm
|
|
Color
|
Black/White
|
|
Weight
|
150g
|

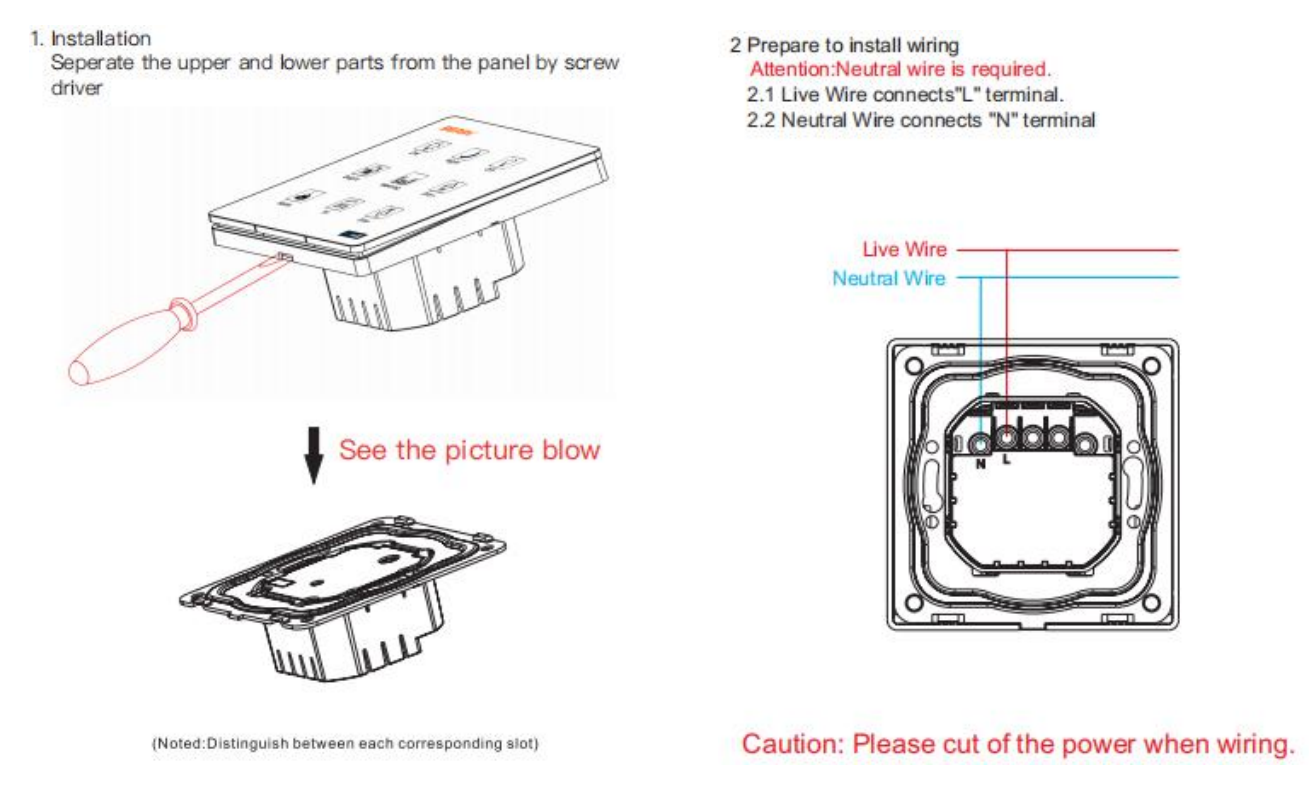

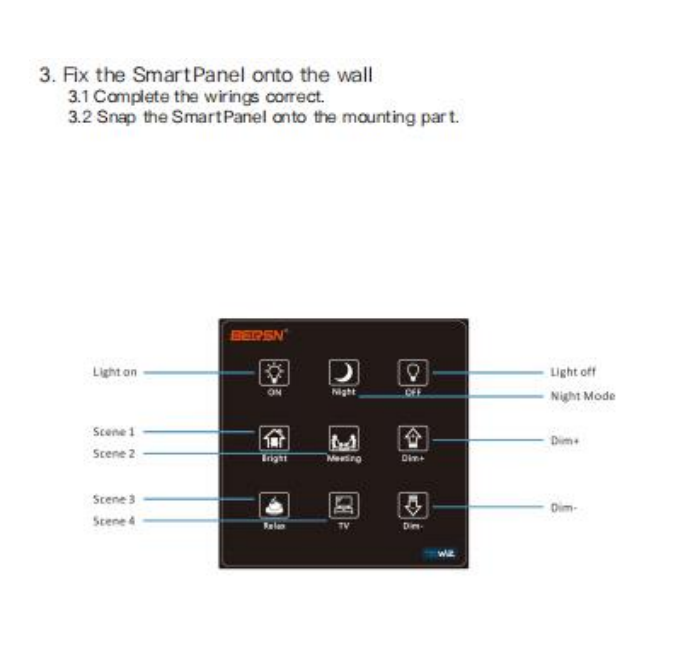

✱Installation Instructions✱
