Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SHANGCHAI
-
Weight:
-
12500
-
Rated power/speed:
-
162KW/2200 r/min
-
Marketing Type:
-
Brand New Product
-
Product Name:
-
162kW 220HP SHANGCHAI Diesel Engine SC11CB220G2B1
-
Engin Type:
-
6 cylinder 4 stroke in line , water cooled
-
Engine Speed (rpm):
-
2200
-
Engine Power(HP):
-
220
-
Model:
-
SC11CB220G2B1 (3306 engine)
Quick Details
-
Displacement:
-
125CC
-
Emission Standard:
-
Euro 2
-
Power:
-
160kW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SHANGCHAI
-
Weight:
-
12500
-
Rated power/speed:
-
162KW/2200 r/min
-
Marketing Type:
-
Brand New Product
-
Product Name:
-
162kW 220HP SHANGCHAI Diesel Engine SC11CB220G2B1
-
Engin Type:
-
6 cylinder 4 stroke in line , water cooled
-
Engine Speed (rpm):
-
2200
-
Engine Power(HP):
-
220
-
Model:
-
SC11CB220G2B1 (3306 engine)
Contact
Leah Li / Sales Manager
WhatsApp / WeChat / Mobile Phone: +86-150-7907-5501
Newindu International LTD
Newindu Construction Engineering (Shanghai) Co., Ltd
Products Description

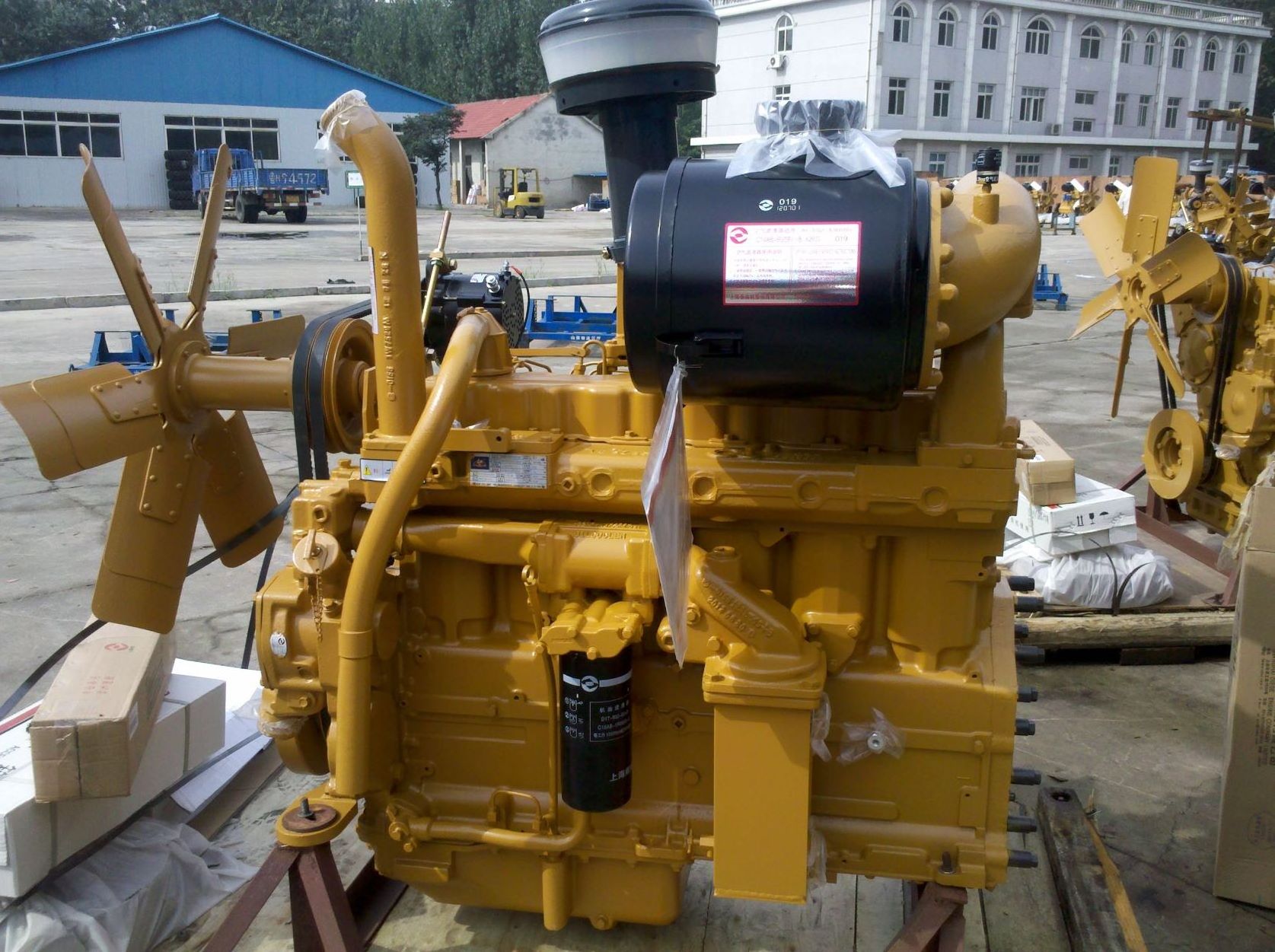

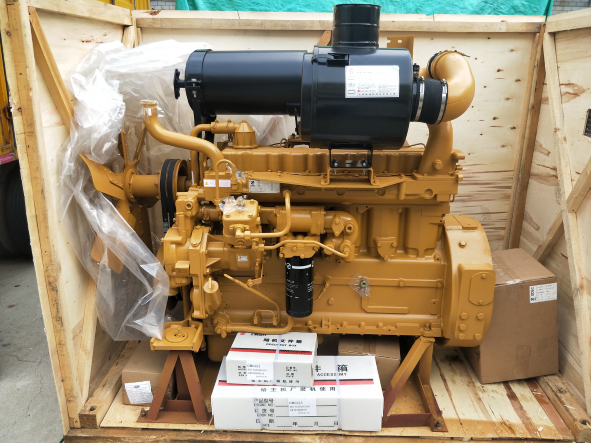

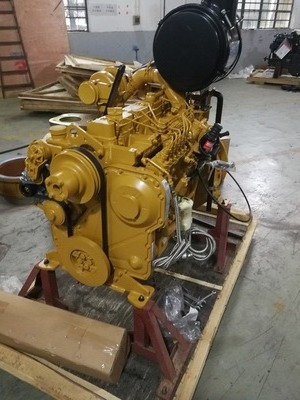

SHANGCHAI Engine SC11CB220G2B1
The consummate design of parts and the whole unit implements the idea of high reliability, long service life, common life for key parts and the whole unit, and highly reliable and endurable rubbing pairs. As indicated by statistical data about actual application, the average failure period of loaders and bulldozers is above 4,000 hours and their overhaul period is greater than 10,000 hours.
Specification
|
Model
|
SC11CB220G2B1
|
|
Engine Type
|
Direct Injection, Straight-Line, Water-Cooling Cylinder Liner, Six-In-Line, Four-Stroke
|
|
Intake Mode
|
Charging
|
|
Cylinder Bore ×Stroke
|
120.65×152.4mm
|
|
Total Displacement
|
10.45L
|
|
Compression Ratio
|
16.5:1
|
|
Standard Power/Rated Rotate Speed
|
162kw/2200rpm/min
|
|
Fuel Consumption at Standard Working Condition
|
≤220 g/kW.H
|
|
Max. Torque/Rotate Speed
|
844/1400 N.m/r/min
|
|
Noise
|
≤99 db(A)
|
|
Overall Dimensions
|
1394 (Length) × 828 (Width) × 1521 (Height) mm
|
|
Weight
|
960kg
|
